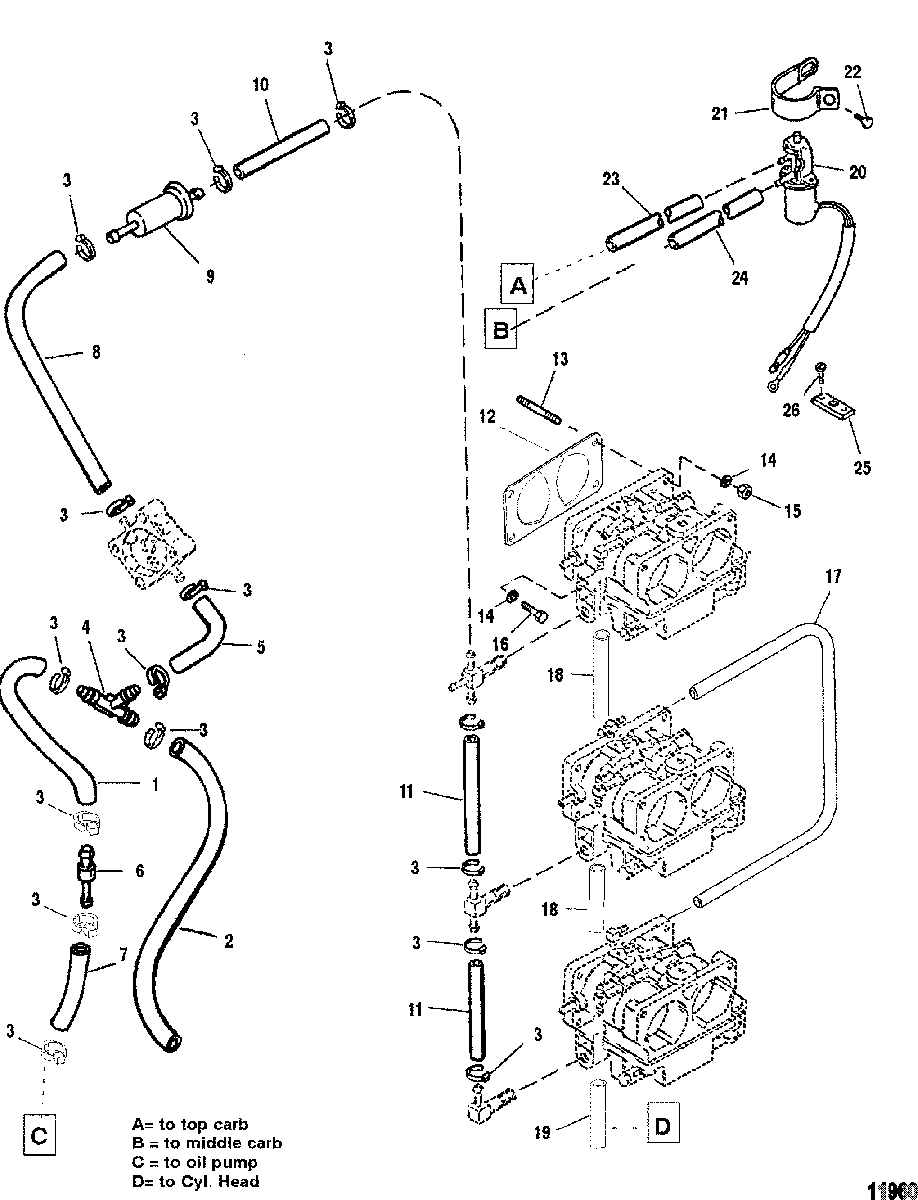

Fuel Lines для Mercury - V-175 0G303046 THRU 0G760299
-
№АртикулНазвание
-
132-82381335 TUBING, (12.00 Inches Bulk) (Cut to 4.50 Inch Length)TUBING, (12.00 Inches Bulk) (Cut to 4.50 Inch Length)
-
232-9912878 HOSE, (.187) (26.00 Inches Bulk)HOSE, (.187) (26.00 Inches Bulk)
-
354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
422-818993 CONNECTOR, TeeCONNECTOR, Tee
-
532-830760 HOSEHOSE
-
622-8189941 CHECK VALVECHECK VALVE
-
732-8M0108349 TUBING, (28.00 Inches Bulk) (Cut to 2.00 Inch Length)TUBING, (28.00 Inches Bulk) (Cut to 2.00 Inch Length)
-
832-830762 HOSEHOSE
-
935-816296Q2 FILTER, FuelFILTER, Fuel
-
1032-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 11.00 Inch Length)HOSE, (57.00 Inches Bulk) (Cut to 11.00 Inch Length)
-
1132-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 4.50 Inch Length)HOSE, (57.00 Inches Bulk) (Cut to 4.50 Inch Length)
-
1227-828292 GASKETGASKET
-
1316-270372 STUD, (.250-28 x 1.125)STUD, (.250-28 x 1.125)
-
1413-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1511-8267089 NUT, (.250-28)NUT, (.250-28)
-
1610-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
1732-892024122 TUBING, (20.00 Feet Bulk) (Cut to 9.00 Inch Length)TUBING, (20.00 Feet Bulk) (Cut to 9.00 Inch Length)
-
1832-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 4.50 Inch Length)HOSE, (.187) (26.00 Inches Bulk) (Cut to 4.50 Inch Length)
-
1932-9912878 HOSE, (.187) (26.00 Inches Bulk)HOSE, (.187) (26.00 Inches Bulk)
-
2042859A2 VALVE ASSEMBLY, EnrichnerVALVE ASSEMBLY, Enrichner
-
2154-633001 CLAMP
(No Stamping)CLAMP
(No Stamping) -
2154-633003 CLAMP
(Stamped '3')CLAMP
(Stamped '3') -
2210-73286 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
2332-9912688 TUBING, (36.00 Inches Bulk) (Cut to 4.50 Inch Length)TUBING, (36.00 Inches Bulk) (Cut to 4.50 Inch Length)
-
2432-9912688 TUBING, (36.00 Inches Bulk) (Cut to 3.75 Inch Length)TUBING, (36.00 Inches Bulk) (Cut to 3.75 Inch Length)
-
2586-45915 TERMINAL BLOCKTERMINAL BLOCK
-
2610-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
2510-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
