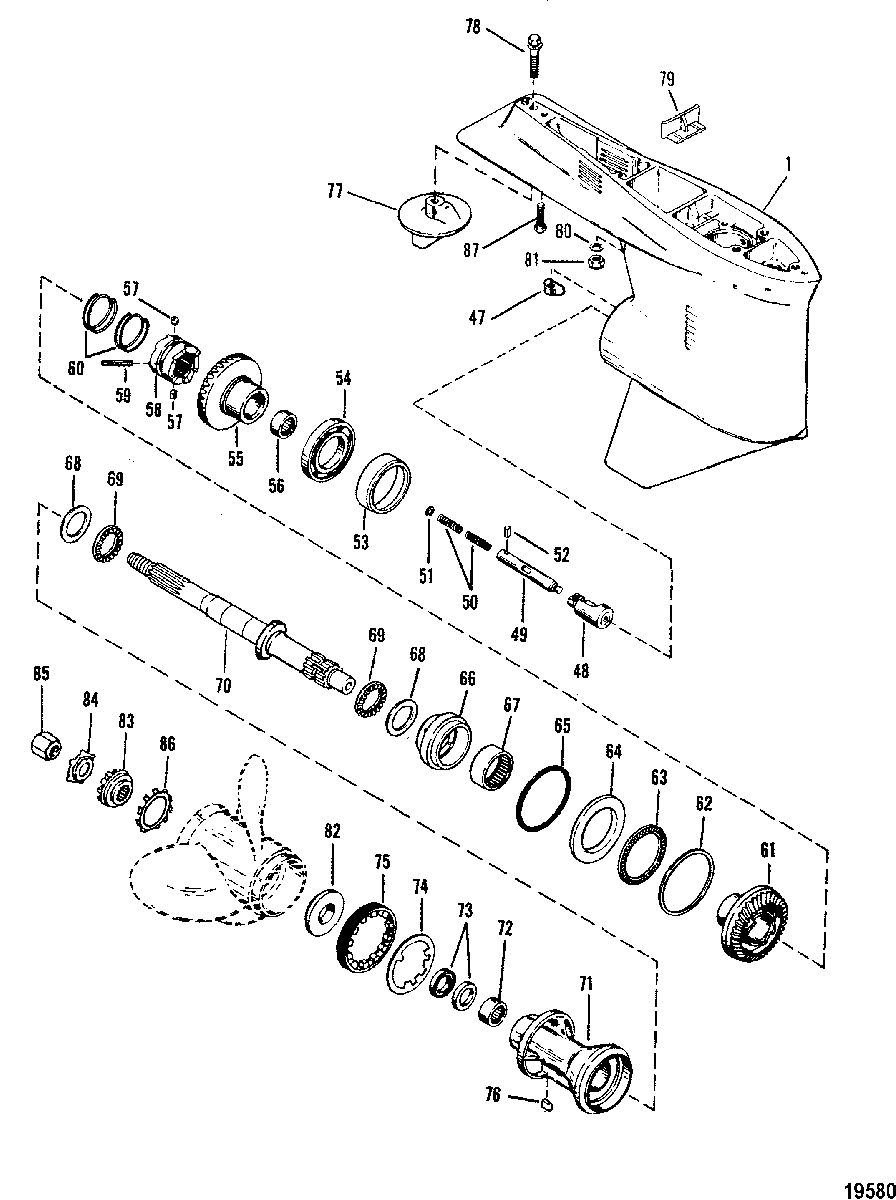

GEAR HOUSING(PROPELLER SHAFT) (COUNTER ROTATION) для Mercury - V-175 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • -
    1647-9148T86 GEAR HOUSING ASSEMBLY, Counter Rotation
    (X-LONG) (BLACK)
    GEAR HOUSING ASSEMBLY, Counter Rotation
    (X-LONG) (BLACK)
  • -
    1647-9148T86 GEAR HOUSING ASSEMBLY, Counter Rotation
    (X-LONG) (GRAY)
    GEAR HOUSING ASSEMBLY, Counter Rotation
    (X-LONG) (GRAY)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY
    (BASIC BLACK)
    GEAR HOUSING ASSEMBLY
    (BASIC BLACK)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY
    (BASIC GRAY)
    GEAR HOUSING ASSEMBLY
    (BASIC GRAY)
  • 47
    789562 SHIFT CAM
    SHIFT CAM
  • 48
    89594A1 FOLLOWER ASSEMBLY, CAM
    FOLLOWER ASSEMBLY, CAM
  • 49
    79911A1 ROD, CLUTCH ACTUATOR
    ROD, CLUTCH ACTUATOR
  • 50
    24-79910 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 51
    12-78910 WASHER, SPRING
    WASHER, SPRING
  • 52
    17-8M0084245 PIN, SPRING LOCATOR
    PIN, SPRING LOCATOR
  • 53
    14469T CUP, Bearing
    CUP, Bearing
  • 54
    30-88957T BEARING, Ball
    BEARING, Ball
  • 55
    N.S.S. Not Sold Separate, REVERSE GEAR(PART OF 43-18475A1)
    Not Sold Separate, REVERSE GEAR(PART OF 43-18475A1)
  • 56
    31-15844 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 57
    17-78909 PIN, Detent, RATCHET
    PIN, Detent, RATCHET
  • 58
    52-8M0100493 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 59
    17-8M0084243 PIN, Cross, RATCHET
    PIN, Cross, RATCHET
  • 60
    24-78962 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 61
    43-18475T1 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 62
    23-176151 SPACER SHIM, (.125)
    SPACER SHIM, (.125)
  • 62
    23-176152 SPACER SHIM, (.127)
    SPACER SHIM, (.127)
  • 62
    23-176153 SPACER SHIM, (.129)
    SPACER SHIM, (.129)
  • 62
    23-176154 SPACER SHIM, (.131)
    SPACER SHIM, (.131)
  • 62
    23-176155 SPACER SHIM, (.133)
    SPACER SHIM, (.133)
  • 62
    23-176156 SPACER SHIM, (.135)
    SPACER SHIM, (.135)
  • 62
    23-176157 SPACER SHIM, (.137)
    SPACER SHIM, (.137)
  • 62
    23-176158 SPACER SHIM, (.139)
    SPACER SHIM, (.139)
  • 62
    23-176159 SPACER SHIM, (.141)
    SPACER SHIM, (.141)
  • 62
    23-1761510 SPACER SHIM, (.143)
    SPACER SHIM, (.143)
  • 62
    23-1761511 SPACER SHIM, (.145)
    SPACER SHIM, (.145)
  • 62
    23-1761512 SPACER SHIM, (.147)
    SPACER SHIM, (.147)
  • 62
    23-1761513 SPACER SHIM, (.149)
    SPACER SHIM, (.149)
  • 63
    31-15841 BEARING, Roller
    BEARING, Roller
  • 64
    12-17616 THRUST RING
    THRUST RING
  • 65
    25-31534 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 66
    18447T2 ADAPTOR ASSEMBLY, Bearing
    ADAPTOR ASSEMBLY, Bearing
  • 67
    31-15843T BEARING, Roller
    BEARING, Roller
  • 68
    12-18448 THRUST WASHER
    THRUST WASHER
  • 69
    31-15842 BEARING, Thrust
    BEARING, Thrust
  • 70
    44-18446 PROPELLER SHAFT
    PROPELLER SHAFT
  • 71
    818896T2 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 72
    31-30956T BEARING, Needle, BEARING CARRIER
    BEARING, Needle, BEARING CARRIER
  • 73
    26-76868 SEAL, BEARING CARRIER
    SEAL, BEARING CARRIER
  • 74
    14-79447 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 75
    8M2000347 RETAINER, GEAR HOUSING
    RETAINER, GEAR HOUSING
  • 76
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 77
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 78
    10-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
    SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
  • 79
    8M0039169 FILLER BLOCK
    FILLER BLOCK
  • 80
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDS
    WASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDS
  • 81
    11-34933 NUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDS
    NUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDS
  • 82
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 83
    12-31211Q03 WASHER, Splined, PROPELLER NUT
    WASHER, Splined, PROPELLER NUT
  • 84
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 85
    11-52707Q1 PROP NUT KIT, (.750-16)
    PROP NUT KIT, (.750-16)
  • 86
    13-423511 LOCKWASHER, Toothed, PROPELLER SHAFT
    LOCKWASHER, Toothed, PROPELLER SHAFT
  • 87
    10-74727 SCREW, (.375-16 x 6.00), GEAR HOUSING
    SCREW, (.375-16 x 6.00), GEAR HOUSING
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
