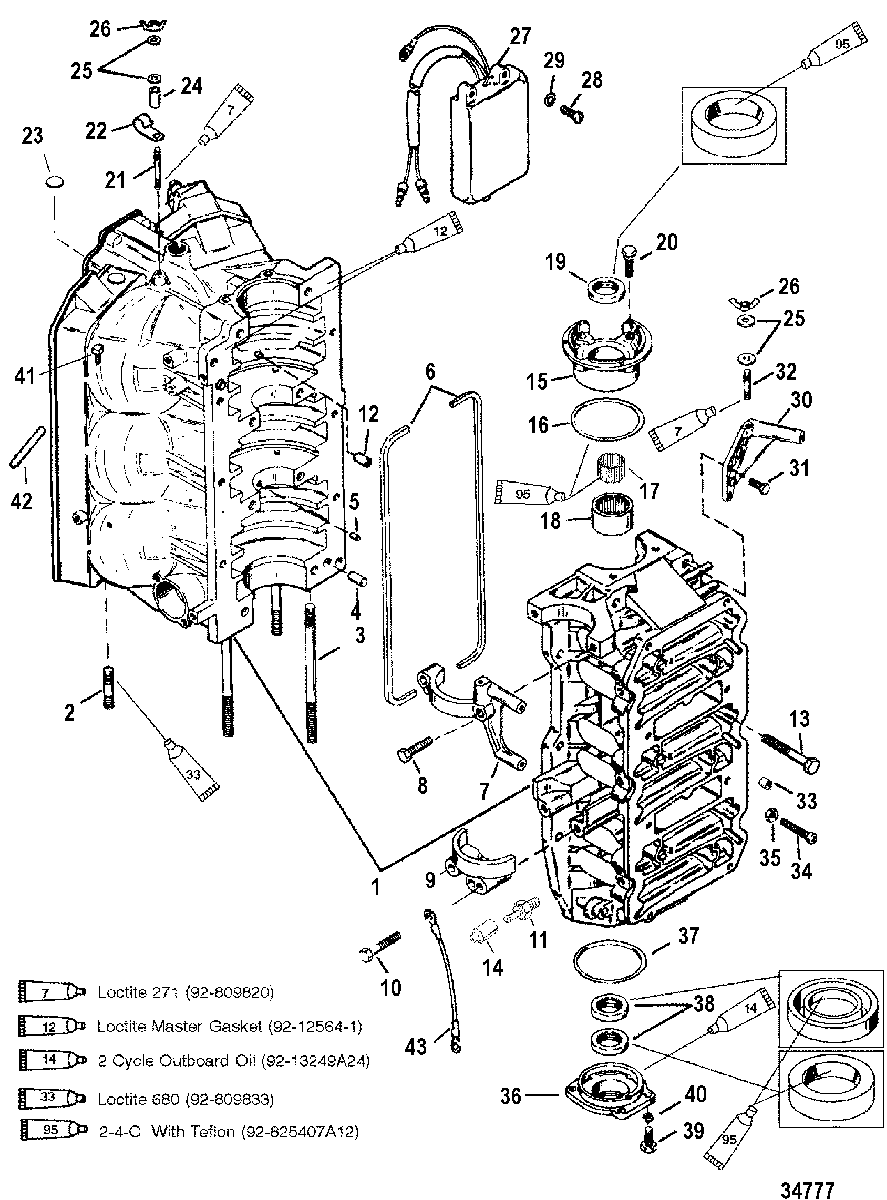

CYLINDER BLOCK AND END CAPS для Mercury - V-175 (EFI) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
1884-9763T23 CYLINDER BLOCK
(150)CYLINDER BLOCK
(150) -
1884-9763T17 CYLINDER BLOCK
(175)CYLINDER BLOCK
(175) -
1884-9763T61 CYLINDER BLOCK
(200)CYLINDER BLOCK
(200) -
216-8M0034455 STUD, Powerhead (1-3/4 IN.)STUD, Powerhead (1-3/4 IN.)
-
316-670654 STUD, (.375 x 5.620)STUD, (.375 x 5.620)
-
316-8M0034454 STUD, (.375 x 6.870)STUD, (.375 x 6.870)
-
417-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
517-8M0036405 PIN (BEARING RACE)PIN (BEARING RACE)
-
627-11338 GASKETGASKET
-
78M0088723 COVER (UPPER)COVER (UPPER)
-
810-828213 SCREW, (.312-18 x 1.500) Hex FlangeSCREW, (.312-18 x 1.500) Hex Flange
-
976867 COVER (LOWER)COVER (LOWER)
-
1010-828214 SCREW, (.312-18 x 2.00) Hex FlangeSCREW, (.312-18 x 2.00) Hex Flange
-
1121-8781051 CHECK VALVECHECK VALVE
-
1223-99448 BUSHINGBUSHING
-
1310-66717 SCREW, (.375-16 x 3.250)SCREW, (.375-16 x 3.250)
-
1310-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
14NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
151159-858521T1 END CAP ASSEMBLY, UpperEND CAP ASSEMBLY, Upper
-
1625-54029 O-RING, (2.800 x .103)O-RING, (2.800 x .103)
-
1731-16756A4 BEARING KITBEARING KIT
-
18NSS NOT SOLD SEPARATE, RaceNOT SOLD SEPARATE, Race
-
1926-41953 SEALSEAL
-
2010-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)SCREW AND LOCKWASHER, (.312-18 x 1.00)
-
2116-15094 STUD, (.190-32 x 1.870)STUD, (.190-32 x 1.870)
-
2254-63153 J CLIPJ CLIP
-
23NSS NOT SOLD SEPARATE, Plug-Serial NumberNOT SOLD SEPARATE, Plug-Serial Number
-
2423-67269 SPACERSPACER
-
2512-49221 WASHER, (.187 x .500 x .062) NeopreneWASHER, (.187 x .500 x .062) Neoprene
-
2611-816874 WING NUT, (#10-32)WING NUT, (#10-32)
-
2787076A10 IDLE SPEED CONTROLIDLE SPEED CONTROL
-
2810-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
2912-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
30422482 BRACKETBRACKET
-
3110-49668 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
3216-8M0034435 STUD, (#10-32 x 1.00)STUD, (#10-32 x 1.00)
-
3326852 CAP, NylonCAP, Nylon
-
3410-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
3511-64015 NUT, (.250-20)NUT, (.250-20)
-
361156-7809T1 END CAP ASSEMBLYEND CAP ASSEMBLY
-
3725-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
3826-41953 SEALSEAL
-
3910-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
4013-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
4122-822715 FITTING, ElbowFITTING, Elbow
-
4222-15026 CAPCAP
-
4384-88807A20 CABLE ASSEMBLYCABLE ASSEMBLY
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-823434R97 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
