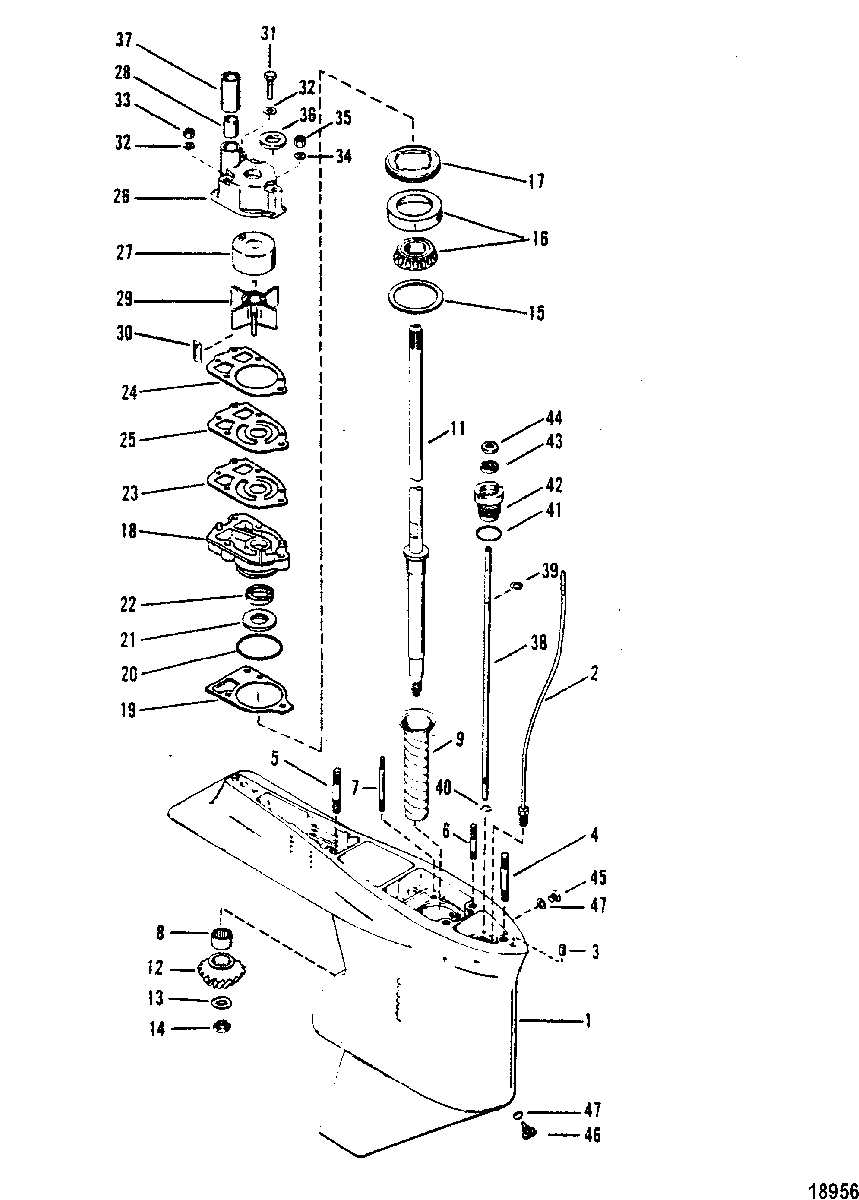

Gear Housing(Driveshaft)(With a Driveshaft Nut) для Mercury - V-150 4868998 THRU 0A904645
-
№АртикулНазвание
-
01647-9148T81 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(LONG)(BLACK)GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(LONG)(BLACK) -
01647-9148T82 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(X-LONG)(BLACK)GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(X-LONG)(BLACK) -
01647-9148T81 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(LONG)(GRAY)GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(LONG)(GRAY) -
01647-9148T82 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(X-LONG) GRAY)GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(X-LONG) GRAY) -
11647-9148T47 GEAR HOUSING ASSEMBLY
(BASIC)(BLACK)GEAR HOUSING ASSEMBLY
(BASIC)(BLACK) -
11647-9148T47 GEAR HOUSING ASSEMBLY
(BASIC)(GRAY)GEAR HOUSING ASSEMBLY
(BASIC)(GRAY) -
222-85822A10 CONNECTOR ASSEMBLYCONNECTOR ASSEMBLY
-
317-43044 PIN, DowelPIN, Dowel
-
416-786382 STUD, (.438 x 3.12)
(LONG)STUD, (.438 x 3.12)
(LONG) -
416-8M0034464 STUD, (.438 x 3.69)
(X-LONG)STUD, (.438 x 3.69)
(X-LONG) -
516-8M0133358 STUD, (.44 x 2.06)STUD, (.44 x 2.06)
-
616-8M0034463 STUD, (.312 x 3.38)STUD, (.312 x 3.38)
-
716-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
831-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
923-43998 SLEEVESLEEVE
-
1145-897624T DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
1145-897625T DRIVESHAFT
(X-LONG)DRIVESHAFT
(X-LONG) -
12NSS NOT SOLD SEPARATE, Pinion Gear (PART OF 43-44102A2)NOT SOLD SEPARATE, Pinion Gear (PART OF 43-44102A2)
-
1312-92721 WASHERWASHER
-
1411-35921 NUT, (.625-18)NUT, (.625-18)
-
1515-8M0063267 SHIM SETSHIM SET
-
1631-36387A1 BEARING, RollerBEARING, Roller
-
178245191 NUTNUT
-
1846-8M0077147 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
1927-426311 GASKETGASKET
-
2025-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
2126-89238 SEAL, OilSEAL, Oil
-
2226-16977 SEAL, OilSEAL, Oil
-
2327-8M0090319 GASKET, LOWERGASKET, LOWER
-
2427-858524 GASKET, UPPERGASKET, UPPER
-
25324351 FACE PLATEFACE PLATE
-
2646-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
2748752T INSERTINSERT
-
2826-38970 SEAL, RUBBERSEAL, RUBBER
-
2947-89984T4 IMPELLERIMPELLER
-
3028-8M0032834 KEYKEY
-
3110-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
3212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3311-8267119 NUT, (.250-28)NUT, (.250-28)
-
3412-36001 WASHERWASHER
-
3511-13436 NUTNUT
-
3625-30271 RING, Rubber
(Use where Applicable)RING, Rubber
(Use where Applicable) -
3723-29804T SLEEVESLEEVE
-
38789022 SHAFTSHAFT
-
3953-29641 E RINGE RING
-
4053-78907 RING, Retaining
(Use where Applicable)RING, Retaining
(Use where Applicable) -
4125-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
4223-77631A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
4326-8164641 SEAL, OilSEAL, Oil
-
4412-77674 WASHER, RUBBERWASHER, RUBBER
-
4510-79953Q04 SCREW, (.375-16 x .250), GREASE FILLERSCREW, (.375-16 x .250), GREASE FILLER
-
4622-8M0058389 SCREW, Magnetic, DRAINSCREW, Magnetic, DRAIN
-
4712-191833 WASHER, FiberWASHER, Fiber
-
-46-96148A8 REBUILD KIT, Water PumpREBUILD KIT, Water Pump
-
-26-89238A2 SEAL KITSEAL KIT
-
-27-90484A88 GASKET SETGASKET SET
