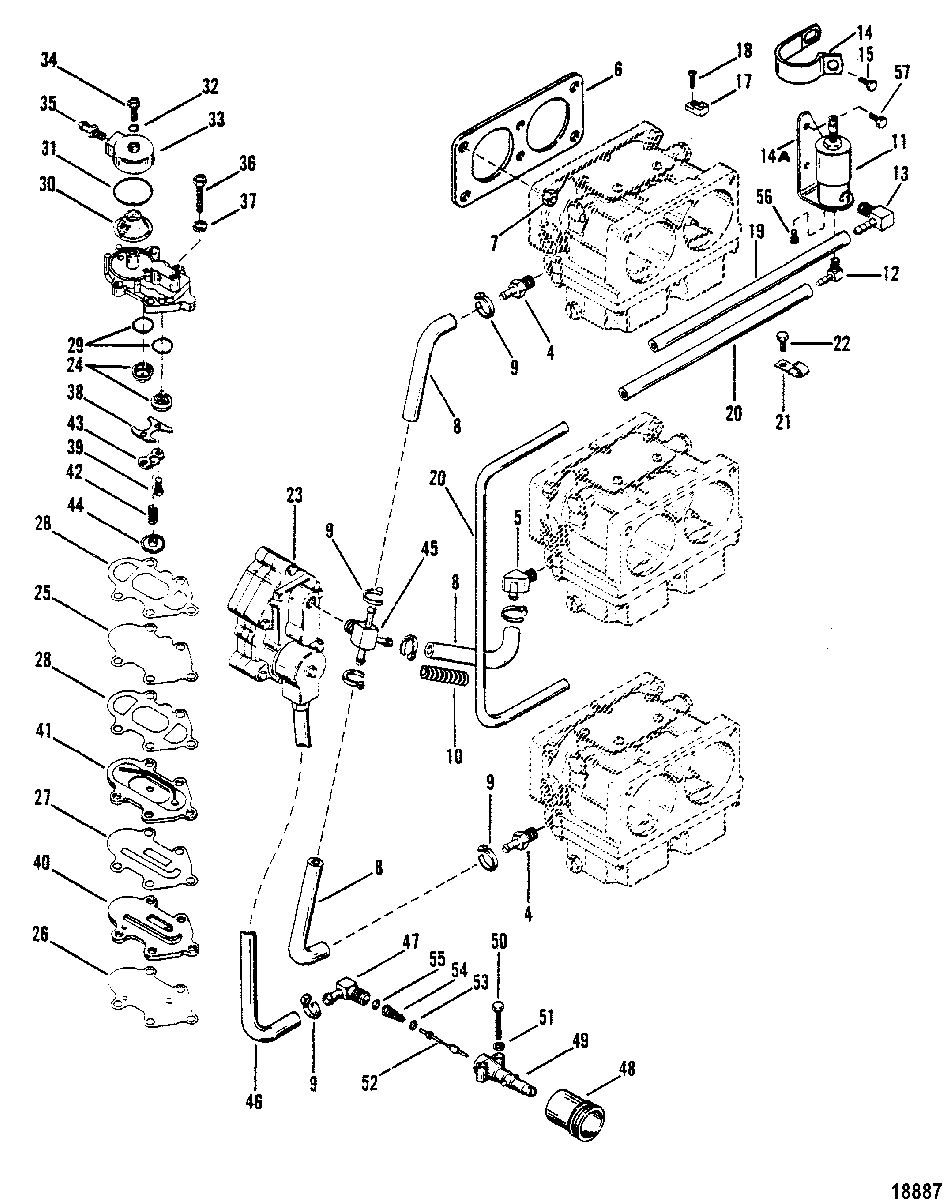

Fuel Pump and Carburetor для Mercury - V-150 4868998 THRU 0A904645
-
№АртикулНазвание
-
11382-7563A1 CARBURATOR
(WH-9)CARBURATOR
(WH-9) -
11382-7563A4 CARBURETOR
(TOP- WH-12)CARBURETOR
(TOP- WH-12) -
11374-5643A97 CARBURETOR
(TOP- WH-29)CARBURETOR
(TOP- WH-29) -
21382-7563A5 CARBURETOR
(CENTER- WH-12)CARBURETOR
(CENTER- WH-12) -
21374-5643A98 CARBURETOR
(CENTER- WH-29)CARBURETOR
(CENTER- WH-29) -
31382-7563A6 CARBURETOR
(BOTTOM- WH-12)CARBURETOR
(BOTTOM- WH-12) -
31374-5643A99 CARBURETOR
(BOTTOM- WH-29)CARBURETOR
(BOTTOM- WH-29) -
41395-6232 FITTING, FUEL INLET - UPPER AND LOWERFITTING, FUEL INLET - UPPER AND LOWER
-
522-70007 FITTING, FUEL INLET - MIDDLEFITTING, FUEL INLET - MIDDLE
-
627-677511 GASKET
SN# USA-5503246/AUS-8062734 & BelowGASKET
SN# USA-5503246/AUS-8062734 & Below -
627-904301 GASKET
SN# USA-5503247/MA-5600162 & UpGASKET
SN# USA-5503247/MA-5600162 & Up -
711-20184 NUT, (1/4-28X7/32), CARBURETOR MOUNTINGNUT, (1/4-28X7/32), CARBURETOR MOUNTING
-
832-8M0108355 LINE, (57.00 Inches Bulk), CARBURETOR TO FUEL PUMPLINE, (57.00 Inches Bulk), CARBURETOR TO FUEL PUMP
-
954-68424 CLAMP, FUEL HOSECLAMP, FUEL HOSE
-
1024-89808 SPRING, FUEL LINESPRING, FUEL LINE
-
1142859A2 VALVE ASSEMBLY, Enrichner
SN# ME-5503247/MA-5600162 & UpVALVE ASSEMBLY, Enrichner
SN# ME-5503247/MA-5600162 & Up -
1222-90275 CONNECTOR, BOTTOM
SN# 6616990 & BelowCONNECTOR, BOTTOM
SN# 6616990 & Below -
1322-73817 CONNECTOR, (90 Degree), SIDE
SN# ME-5503247/MA-5600162 THRU ME-6042945/MA-6038680CONNECTOR, (90 Degree), SIDE
SN# ME-5503247/MA-5600162 THRU ME-6042945/MA-6038680 -
1322-99321 CONNECTOR, SIDE
SN# ME-6042946/MA-6038681 THRU ME-6443212/MA-6443817CONNECTOR, SIDE
SN# ME-6042946/MA-6038681 THRU ME-6443212/MA-6443817 -
1322-67902 CONNECTOR, SIDE
SN# ME-6443212/MA-6443818 THRU 6616990CONNECTOR, SIDE
SN# ME-6443212/MA-6443818 THRU 6616990 -
14NLA No Longer Available, CLAMP, ENRICHNER VALVE
SN# ME-6443212/MA-6443818 THRU 6616990No Longer Available, CLAMP, ENRICHNER VALVE
SN# ME-6443212/MA-6443818 THRU 6616990 -
1454-63300 CLAMP, ENRICHNER VALVE
SN# 6616991 & UpCLAMP, ENRICHNER VALVE
SN# 6616991 & Up -
14A90345 BRACKET, ENRICHNER VALVE
SN# ME-5503247/MA-5600162 THRU ME-6443212/MA-6443817BRACKET, ENRICHNER VALVE
SN# ME-5503247/MA-5600162 THRU ME-6443212/MA-6443817 -
1510-86885 SCREW, (.250-20 x 1.500) Stainless Steel, VALVE CLAMP
SN# ME-6443213/MA-6443818 & UpSCREW, (.250-20 x 1.500) Stainless Steel, VALVE CLAMP
SN# ME-6443213/MA-6443818 & Up -
1786-45915 TERMINAL BLOCKTERMINAL BLOCK
-
1810-35519 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1932-9938779 HOSE
SN# ME-5503247/MA-5600162 THRU ME-6443212/MA-6443817HOSE
SN# ME-5503247/MA-5600162 THRU ME-6443212/MA-6443817 -
1932-892024122 TUBING, (20.00 Feet Bulk)
SN# ME-6443213/MA-6443818 & UpTUBING, (20.00 Feet Bulk)
SN# ME-6443213/MA-6443818 & Up -
2032-9912688 TUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETORTUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETOR
-
2154-47483 J CLIPJ CLIP
-
2210-88743 SCREW, (.312-18 x .500)SCREW, (.312-18 x .500)
-
2313453A1 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
2421-30430A8 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
2589031A2 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
26NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
27NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
28NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
29NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
3035-59072 SCREENSCREEN
-
3125-35480 O-RING, (1.237 x .103)O-RING, (1.237 x .103)
-
32NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
3335-91078A1 COVER ASSEMBLY, FUEL FILTERCOVER ASSEMBLY, FUEL FILTER
-
3410-89766 SCREW, (#10-32 x .620) Stainless SteelSCREW, (#10-32 x .620) Stainless Steel
-
3522-8M0123050 FITTING, Elbow (45 Degree)
SN# 5866776 & BelowFITTING, Elbow (45 Degree)
SN# 5866776 & Below -
3522-64705 FITTING, STRAIGHT
(NON OIL INJECTION)FITTING, STRAIGHT
(NON OIL INJECTION) -
3522-70007 FITTING, 45 Degree
(OIL INJECTION)FITTING, 45 Degree
(OIL INJECTION) -
3522-8M0123050 FITTING, Elbow (45 Degree)
(45 Degrees)FITTING, Elbow (45 Degree)
(45 Degrees) -
3610-88447 SCREW, (.190-32 x 1.62)SCREW, (.190-32 x 1.62)
-
3713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
3823004 RETAINERRETAINER
-
3910-43723 SCREW, (#6-32 x .500)SCREW, (#6-32 x .500)
-
4067623 BASEBASE
-
4179826 PULSE CHAMBER
SN# ME-5432021 & BelowPULSE CHAMBER
SN# ME-5432021 & Below -
4186449 CHAMBER
SN# ME-5432022 & UpCHAMBER
SN# ME-5432022 & Up -
4224-86207 SPRINGSPRING
-
4386026 RETAINERRETAINER
-
4486252 CAPCAP
-
4522-67620 FITTING, FUEL OUTLETFITTING, FUEL OUTLET
-
4632-877682Q8 LINE ASSEMBLY, Fuel
SN# 5866776 & BelowLINE ASSEMBLY, Fuel
SN# 5866776 & Below -
4632-8M0108355 LINE, (57.00 Inches Bulk), INLET
(NON OIL INJECTION)LINE, (57.00 Inches Bulk), INLET
(NON OIL INJECTION) -
4722-920071 FITTING, (.250-18), FUEL LINE (90 DEGREES)FITTING, (.250-18), FUEL LINE (90 DEGREES)
-
4892037 SEALSEAL
-
4930185Q3 BAYONET ASSEMBLY, Fuel
SN# 5866776 & BelowBAYONET ASSEMBLY, Fuel
SN# 5866776 & Below -
4930186 ADAPTORADAPTOR
-
5010-76596 SCREW, (.250-20 x 1.250)
(1/4-20)SCREW, (.250-20 x 1.250)
(1/4-20) -
5010-69224 SCREW
(1/4-28)SCREW
(1/4-28) -
5113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
5230185Q3 STEMSTEM
-
5325-16524 O-RINGO-RING
-
5424-30189 SPRINGSPRING
-
5530188 WASHERWASHER
-
5610-89075 SCREW, VALVE TO BRACKET
SN# ME-5503247/MA-5600162 THRU ME-6443212/MA-6443817SCREW, VALVE TO BRACKET
SN# ME-5503247/MA-5600162 THRU ME-6443212/MA-6443817 -
5710-73286 SCREW, (.250-20 x .500) Stainless Steel, VALVE BRACKET
SN# ME-5503247/MA-5600162 THRU ME-6443212/MA-6443817SCREW, (.250-20 x .500) Stainless Steel, VALVE BRACKET
SN# ME-5503247/MA-5600162 THRU ME-6443212/MA-6443817 -
5710-69067 SCREW, (.250-20 x 1.375), VALVE BRACKET
SN# ME-5503247/MA-5600162 THRU ME-6443212/MA-6443817SCREW, (.250-20 x 1.375), VALVE BRACKET
SN# ME-5503247/MA-5600162 THRU ME-6443212/MA-6443817 -
-27-90484A88 GASKET SET
SN# ME-6042946/MA-6038681 & UpGASKET SET
SN# ME-6042946/MA-6038681 & Up -
-27-79583A81 GASKET SET
SN# 5866777 THRU 6042945GASKET SET
SN# 5866777 THRU 6042945 -
-NLA No Longer Available, Gasket Set
(Service Bulletin 81-8) SN# ME-5866776/MA-6038680 & BelowNo Longer Available, Gasket Set
(Service Bulletin 81-8) SN# ME-5866776/MA-6038680 & Below
