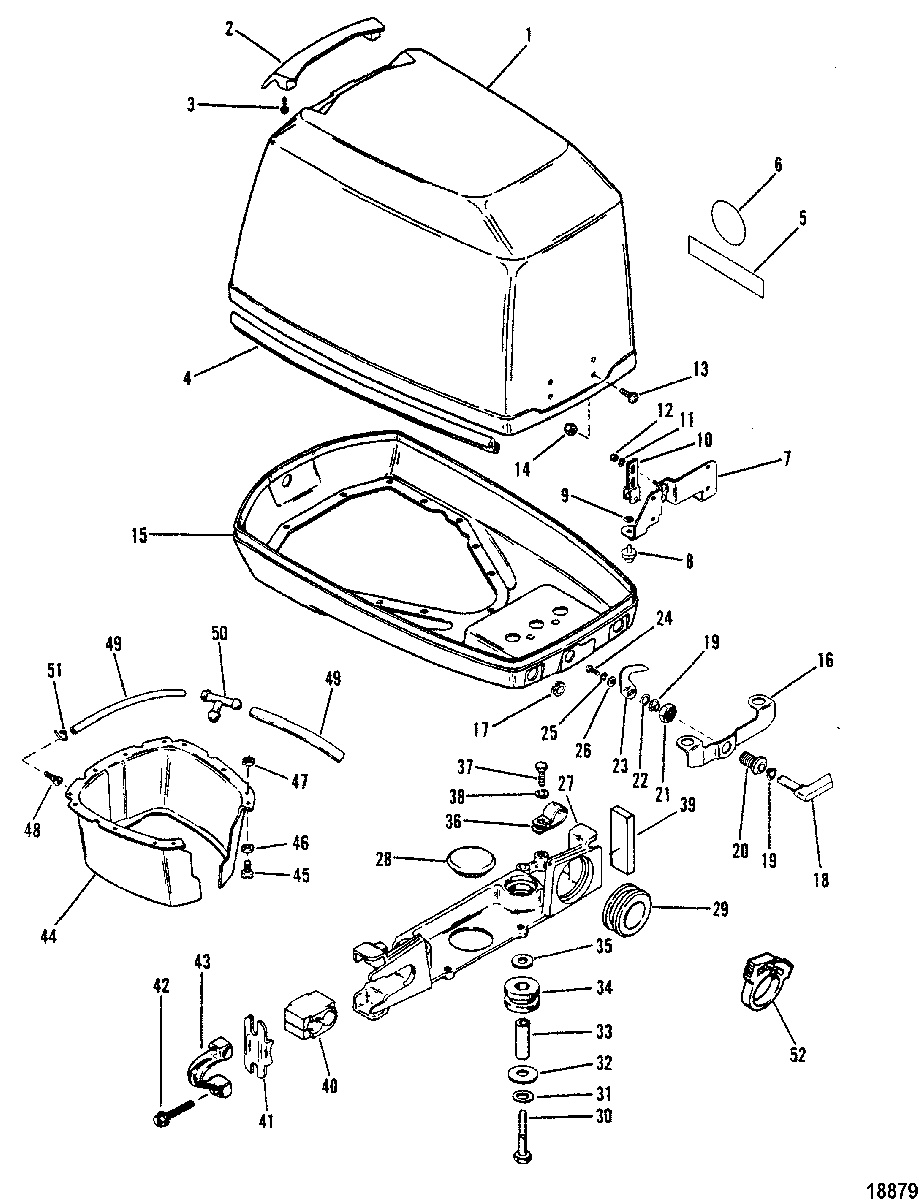

Cowls(Oyster Bucket Style) для Mercury - V-150 0A904646 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    2194-9735A2 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    18036A1 LOUVER ASSEMBLY
    LOUVER ASSEMBLY
  • 3
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 4
    17973 SEAL
    SEAL
  • 5
    38-17996 EMBLEM
    EMBLEM
  • 6
    37-179061 EMBLEM
    EMBLEM
  • 7
    18189A1 BRACKET ASSEMBLY, COWL LATCH (FRONT)
    BRACKET ASSEMBLY, COWL LATCH (FRONT)
  • 7
    18190A1 BRACKET ASSEMBLY, COWL LATCH (REAR)
    BRACKET ASSEMBLY, COWL LATCH (REAR)
  • 8
    18170A1 GUIDE MOUNT
    GUIDE MOUNT
  • 9
    54-18193 CLIP, GUIDE MOUNT
    CLIP, GUIDE MOUNT
  • 10
    893763 BRACKET ASSEMBLY, Latch Roller, ROLLER
    BRACKET ASSEMBLY, Latch Roller, ROLLER
  • 11
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 12
    11-82670910 NUT, (.312-18)
    NUT, (.312-18)
  • 13
    10-18192 SCREW, (.250-20 x .620), BRACKET
    SCREW, (.250-20 x .620), BRACKET
  • 14
    11-8267098 NUT, (.250-20), BRACKET SCREW
    NUT, (.250-20), BRACKET SCREW
  • 15
    2194-9734T10 BOTTOM COWL
    BOTTOM COWL
  • 16
    18183 BRACKET, COWL LATCH
    BRACKET, COWL LATCH
  • 17
    25-18182 GROMMET
    GROMMET
  • 18
    18168A1 LATCH HANDLE ASSEMBLY
    LATCH HANDLE ASSEMBLY
  • 19
    23-812707 BUSHING
    BUSHING
  • 20
    23-18172 BUSHING, COWL LATCH
    BUSHING, COWL LATCH
  • 21
    11-18304 NUT
    NUT
  • 22
    13-69708 WAVE WASHER
    WAVE WASHER
  • 23
    18169 HOOK, COWL LATCH
    HOOK, COWL LATCH
  • 24
    10-28635 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 25
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 26
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 27
    994241 BRACKET, LOWER COWL
    BRACKET, LOWER COWL
  • 28
    19-18219 PLUG
    PLUG
  • 29
    25-13467 GROMMET, (.88 Inside Diameter)
    GROMMET, (.88 Inside Diameter)
  • 30
    10-70732 SCREW, (.250-20 x 2.00)
    SCREW, (.250-20 x 2.00)
  • 31
    12-69057 WASHER
    WASHER
  • 32
    12-35280 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 33
    23-18194 BUSHING
    BUSHING
  • 34
    25-88033 GROMMET
    GROMMET
  • 35
    12-26907 WASHER
    WASHER
  • 36
    54-18479 CLAMP
    CLAMP
  • 37
    10-28635 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 38
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 39
    67260 SEAL, CONTROL CABLES
    SEAL, CONTROL CABLES
  • 40
    99391 RETAINER, OIL LINES
    RETAINER, OIL LINES
  • 41
    88622 PLATE, CABLE RETAINER
    PLATE, CABLE RETAINER
  • 42
    10-68918 SCREW, (.190-24 x 1.00), CABLE RETAINER
    SCREW, (.190-24 x 1.00), CABLE RETAINER
  • 43
    99447 RETAINER, CABLE
    RETAINER, CABLE
  • 44
    18037T10 TRIM COVER, COWL
    TRIM COVER, COWL
  • 45
    10-18124 SCREW, (#10-32 x .750), TRIM COVER TO PLATE
    SCREW, (#10-32 x .750), TRIM COVER TO PLATE
  • 46
    12-89302 WASHER, (.203 x .406 x .040), TRIM COVER SCREW
    WASHER, (.203 x .406 x .040), TRIM COVER SCREW
  • 47
    11-826709106 NUT, (#10-32), TRIM COVER SCREW
    NUT, (#10-32), TRIM COVER SCREW
  • 48
    22-18195 FITTING, TELL TALE
    FITTING, TELL TALE
  • 49
    32-8M0108355 LINE, (57.00 Inches Bulk), TELL TALE
    LINE, (57.00 Inches Bulk), TELL TALE
  • 50
    22-90824001 TEE, TELL TALE HOSE
    TEE, TELL TALE HOSE
  • 51
    54-816311T CLAMP
    CLAMP
  • 52
    54-4158210 CLAMP, Nylon
    CLAMP, Nylon
