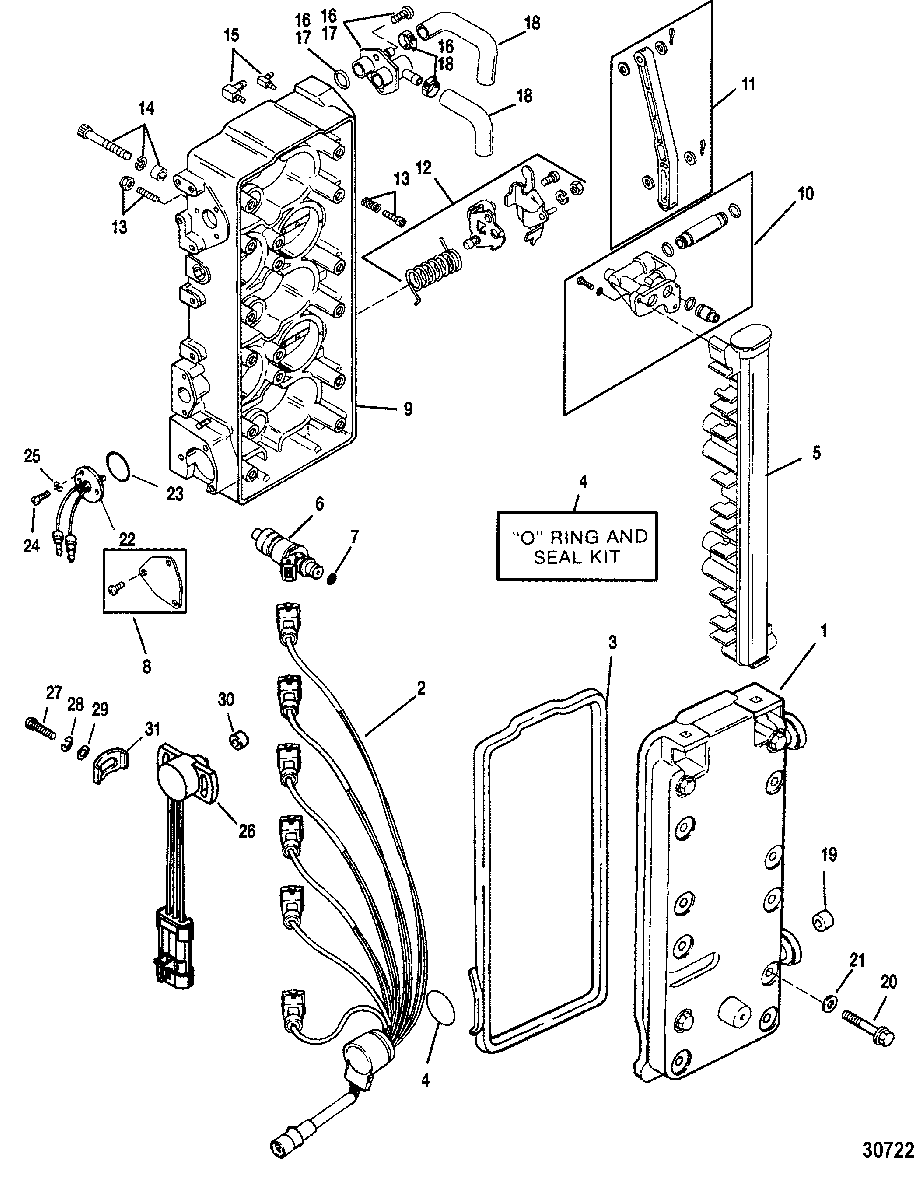

FUEL MANAGEMENT SYSTEM для Mercury - V-150 (EFI) 0G960500 THRU 0T408999

  • №
    Артикул
    Название
  • -
    14817A31 MANAGEMENT ASSEMBLY, Fuel
    MANAGEMENT ASSEMBLY, Fuel
  • 1
    8276922 COVER
    COVER
  • 2
    84-15443 HARNESS KIT
    HARNESS KIT
  • 3
    26-18792 SEAL
    SEAL
  • 4
    15029 O-RING AND SEAL KIT
    O-RING AND SEAL KIT
  • 5
    827699T2 FUEL RAIL
    FUEL RAIL
  • 6
    18715T INJECTOR ASSEMBLY
    INJECTOR ASSEMBLY
  • 7
    35-17422 FILTER
    FILTER
  • 8
    827696 RETAINER KIT
    RETAINER KIT
  • 9
    8276933 THROTTLE BODY
    THROTTLE BODY
  • 10
    8090572 JOINT KIT
    JOINT KIT
  • 11
    8276891 LINK KIT
    LINK KIT
  • 12
    827697 LEVER KIT, Link
    LEVER KIT, Link
  • 13
    10-827698 SCREW KIT
    SCREW KIT
  • 14
    10-8276981 SCREW KIT
    SCREW KIT
  • 15
    22-8090851 ELBOW KIT
    ELBOW KIT
  • 16
    814233A02 SCHRADER VALVE KIT
    SCHRADER VALVE KIT
  • 17
    8142332 FMA JOINT KIT
    FMA JOINT KIT
  • 18
    32-827694A01 HOSE KIT
    HOSE KIT
  • 19
    67748 ROLLER
    ROLLER
  • 20
    10-845674 SCREW, (.250-20 x 4.00)
    SCREW, (.250-20 x 4.00)
  • 21
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 22
    13221T01 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 23
    25-45711 O-RING, (.612 x .103)
    O-RING, (.612 x .103)
  • 24
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 25
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 26
    14851004 INDICATOR
    INDICATOR
  • 27
    10-15150 SCREW, (#8-32 x .625)
    SCREW, (#8-32 x .625)
  • 28
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 29
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
    WASHER, (.192 x .375 x .0312) Stainless Steel
  • 30
    23-15885 SLEEVE
    SLEEVE
  • 31
    813501 PLATE
    PLATE
  • -
    27-815791A00 GASKET SET, Engine
    GASKET SET, Engine
