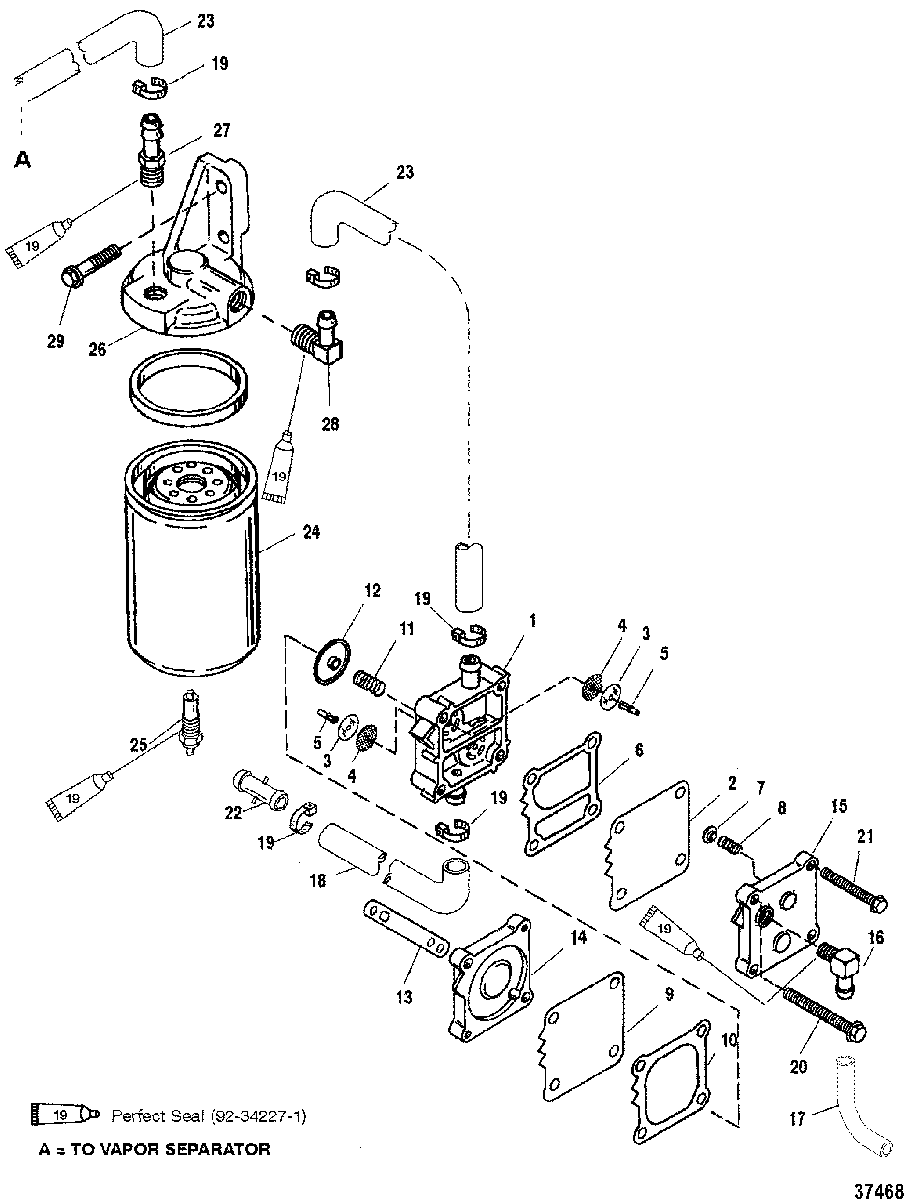

FUEL PUMP для Mercury - V-150 (EFI) 0G303046 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-857005A1 DIAPHAGM KIT
    DIAPHAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, CHECK VALVE, RUBBER
    NOT SOLD SEPARATE, CHECK VALVE, RUBBER
  • 4
    NSS NOT SOLD SEPARATE, CHECK VALVE
    NOT SOLD SEPARATE, CHECK VALVE
  • 5
    NSS NOT SOLD SEPARATE, RETAINER
    NOT SOLD SEPARATE, RETAINER
  • 6
    NSS NOT SOLD SEPARATE, GASKET, BOOST
    NOT SOLD SEPARATE, GASKET, BOOST
  • 7
    NSS NOT SOLD SEPARATE, CAP
    NOT SOLD SEPARATE, CAP
  • 8
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 9
    NSS NOT SOLD SEPARATE, DIAPHRAGM
    NOT SOLD SEPARATE, DIAPHRAGM
  • 10
    NSS NOT SOLD SEPARATE, GASKET, PULSE
    NOT SOLD SEPARATE, GASKET, PULSE
  • 11
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 12
    NSS NOT SOLD SEPARATE, CAP
    NOT SOLD SEPARATE, CAP
  • 13
    27-987691 GASKET
    GASKET
  • 14
    144303 BASE
    BASE
  • 15
    987752 PLATE
    PLATE
  • 16
    22-996642 ELBOW
    ELBOW
  • 17
    32-8M0108349 TUBING, (28.00 Inches Bulk) (Cut to 6 IN.)
    TUBING, (28.00 Inches Bulk) (Cut to 6 IN.)
  • 18
    32-8M0108349 TUBING, (28.00 Inches Bulk) (Cut to 10-1/2 IN.)
    TUBING, (28.00 Inches Bulk) (Cut to 10-1/2 IN.)
  • 19
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 20
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 21
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 22
    22-822769 CONNECTOR
    CONNECTOR
  • 23
    32-1350385 TUBING, (33.00 Inches Bulk) (15-1/2 IN.)(19 IN.)
    TUBING, (33.00 Inches Bulk) (15-1/2 IN.)(19 IN.)
  • 24
    35-18458Q4 FILTER KIT
    FILTER KIT
  • 25
    8285861 PROBE
    PROBE
  • 26
    13170A3 BASE
    BASE
  • 27
    22-89771Q2 CONNECTOR, (.250-18) (STRAIGHT)
    CONNECTOR, (.250-18) (STRAIGHT)
  • 28
    22-136071 ELBOW
    ELBOW
  • 29
    10-455611 SCREW, (.250-20 x 1.12)
    SCREW, (.250-20 x 1.12)
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    823434R97 POWERHEAD ASSEMBLY
    (150)
    POWERHEAD ASSEMBLY
    (150)
  • -
    812817R97 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
  • -
    813043R97 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
