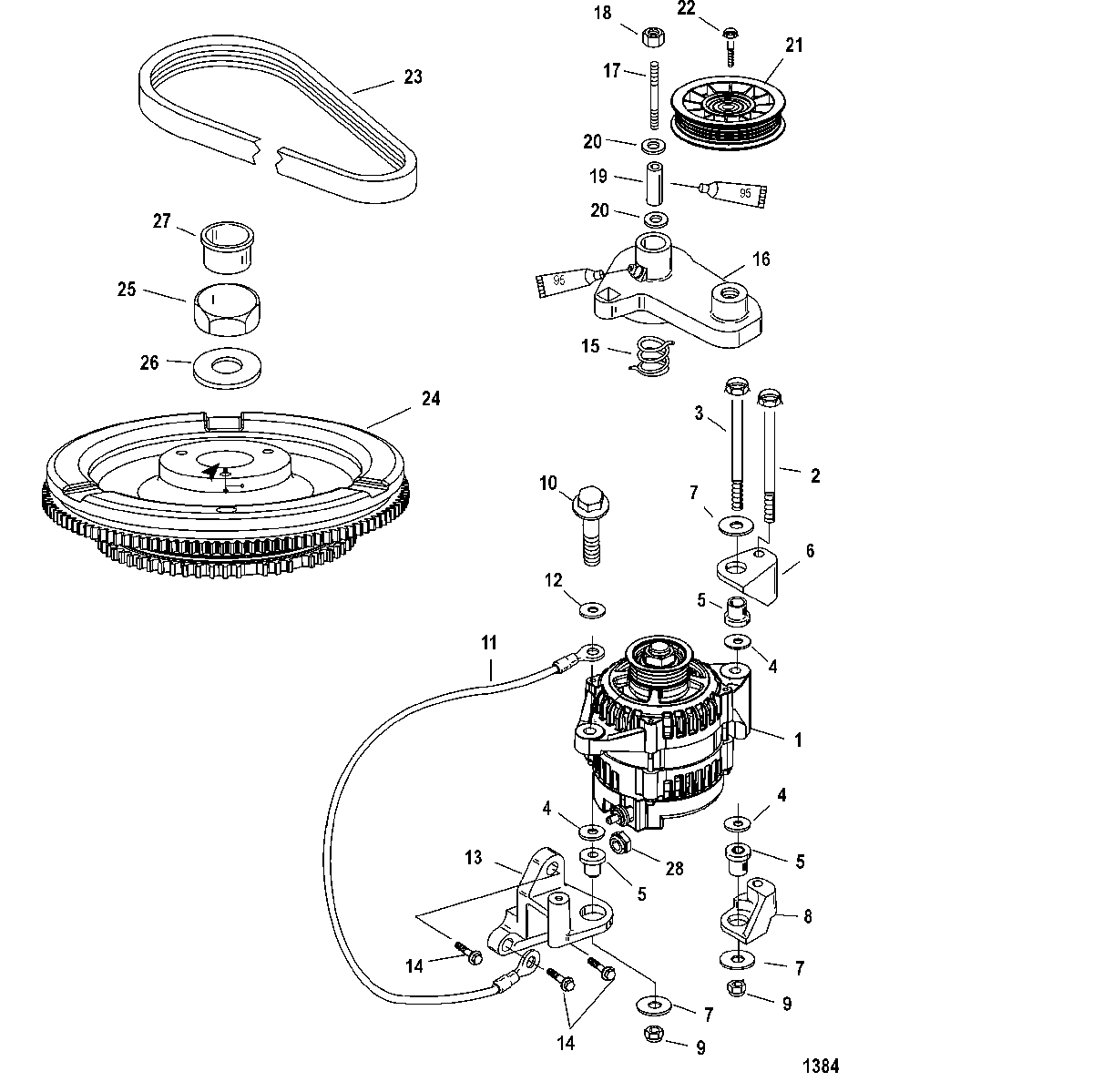

Flywheel/Alternator для Mercury - V-150 EFI (2.5L) 0T801000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    8M0064021 ALTERNATOR
    ALTERNATOR
  • 2
    10-8M0012503 SCREW, (M10 x 100) Hex Flange - Stainless Steel
    SCREW, (M10 x 100) Hex Flange - Stainless Steel
  • 3
    10-40108120 SCREW, (M10 x 120) Hex Flange - Stainless Steel
    SCREW, (M10 x 120) Hex Flange - Stainless Steel
  • 4
    12-8M0042641 WASHER, (.390 x 1.00 x .06)
    WASHER, (.390 x 1.00 x .06)
  • 5
    23-856975 MOUNT
    MOUNT
  • 6
    858391T01 BRACKET
    BRACKET
  • 7
    12-845998 WASHER, (.406 x 1.250 x .089)
    WASHER, (.406 x 1.250 x .089)
  • 8
    858393T01 BRACKET
    BRACKET
  • 9
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 10
    10-82446155 SCREW, (M10 x 55)
    SCREW, (M10 x 55)
  • 11
    84-856583T2 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 12
    12-4002319 WASHER
    WASHER
  • 13
    857142T BRACKET
    BRACKET
  • 14
    10-812618 SCREW, (.312-18 x 1.00) Stainless Steel With Nylon Patch
    SCREW, (.312-18 x 1.00) Stainless Steel With Nylon Patch
  • 15
    24-855798001 SPRING
    SPRING
  • 16
    856815T2 ARM TENSIONER ASSEMBLY
    ARM TENSIONER ASSEMBLY
  • 17
    16-8M0034457 STUD, (M10 x 85)
    STUD, (M10 x 85)
  • 18
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 19
    23-8568941 BUSHING
    BUSHING
  • 20
    12-4002320 WASHER
    WASHER
  • 21
    883471T PULLEY
    PULLEY
  • 22
    10-4010835 SCREW, (M10 x 35) Hex Flange - Stainless Steel
    SCREW, (M10 x 35) Hex Flange - Stainless Steel
  • 23
    57-828507Q11 BELT
    BELT
  • 24
    281-859734T1 FLYWHEEL
    FLYWHEEL
  • 25
    11-52901 NUT, (.625-18)
    NUT, (.625-18)
  • 26
    12-33001 WASHER, (.641 x 1.250 x .190)
    WASHER, (.641 x 1.250 x .190)
  • 27
    19-45907 PLUG, Yellow
    PLUG, Yellow
  • 28
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
