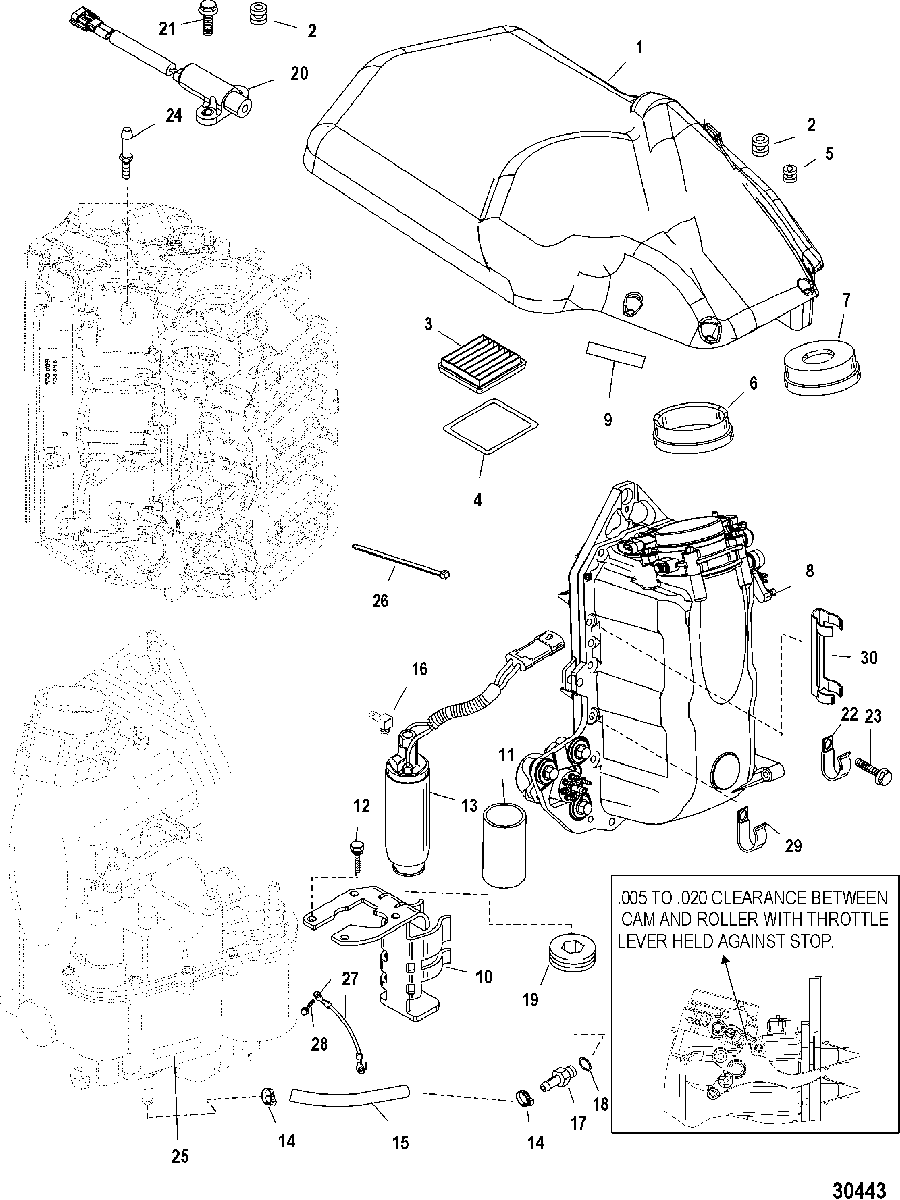

AIR HANDLER для Mercury - V-150 DFI (2.5L) 0T178500 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    827325T11 COVER ASSEMBLY
    COVER ASSEMBLY
  • 2
    25-821555001 GROMMET
    GROMMET
  • 3
    35-853333T FILTER
    FILTER
  • 4
    853352 COVER
    COVER
  • 5
    25-857101 GROMMET
    GROMMET
  • 6
    25-855613 GROMMET
    (150/175)
    GROMMET
    (150/175)
  • 7
    25-8556131 GROMMET
    (135)
    GROMMET
    (135)
  • 8
    855633T16 AIR HANDLER ASSEMBLY
    (SEE BREAKDOWN ON AIR HANDLER COMPONENTS)
    AIR HANDLER ASSEMBLY
    (SEE BREAKDOWN ON AIR HANDLER COMPONENTS)
  • 9
    37-881865 DECAL, Caution-Start in Gear
    DECAL, Caution-Start in Gear
  • 10
    855756A1 BRACKET KIT
    BRACKET KIT
  • 11
    23-803818 SLEEVE
    SLEEVE
  • 12
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 13
    8M0047624 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 14
    54-13791 CLAMP, (15.7)
    CLAMP, (15.7)
  • 15
    32-856778 HOSE
    HOSE
  • 16
    22-855802A1 ELBOW
    ELBOW
  • 17
    22-880862A1 FITTING
    FITTING
  • 18
    25-805062 O-RING, (.530 x .082)
    O-RING, (.530 x .082)
  • 19
    25-856928 GROMMET
    GROMMET
  • 20
    8M0082988 SENSOR
    SENSOR
  • 21
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 22
    54-883080 J CLIP
    J CLIP
  • 23
    10-817504 SCREW, (.250-20 x 1.500) Stainless Steel
    SCREW, (.250-20 x 1.500) Stainless Steel
  • 24
    8215832 PIN, Special (1.5 Inches)
    PIN, Special (1.5 Inches)
  • 25
    37-804657A01 DECAL, EPA Label Information
    (2001)
    DECAL, EPA Label Information
    (2001)
  • 25
    37-804657A02 DECAL, EPA Label Information
    (150/175)(2002)
    DECAL, EPA Label Information
    (150/175)(2002)
  • 25
    37-883929A02 DECAL, EPA Label Information
    (135)(2002)
    DECAL, EPA Label Information
    (135)(2002)
  • 25
    37-804657A03 DECAL, EPA Label Information
    (150/175)(2003)
    DECAL, EPA Label Information
    (150/175)(2003)
  • 25
    37-883929A03 DECAL, EPA Label Information
    (135)(2003)
    DECAL, EPA Label Information
    (135)(2003)
  • 26
    61990 TIE STRAP, (14.00 Inches)
    TIE STRAP, (14.00 Inches)
  • 27
    84-881831 WIRE ASSEMBLY
    WIRE ASSEMBLY
  • 28
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 29
    54-633003 CLAMP
    CLAMP
  • 30
    8261151 CLAMP, Connector
    CLAMP, Connector
  • -
    879808T07 POWERHEAD ASSEMBLY
    (135/150)
    POWERHEAD ASSEMBLY
    (135/150)
  • -
    879809T07 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
