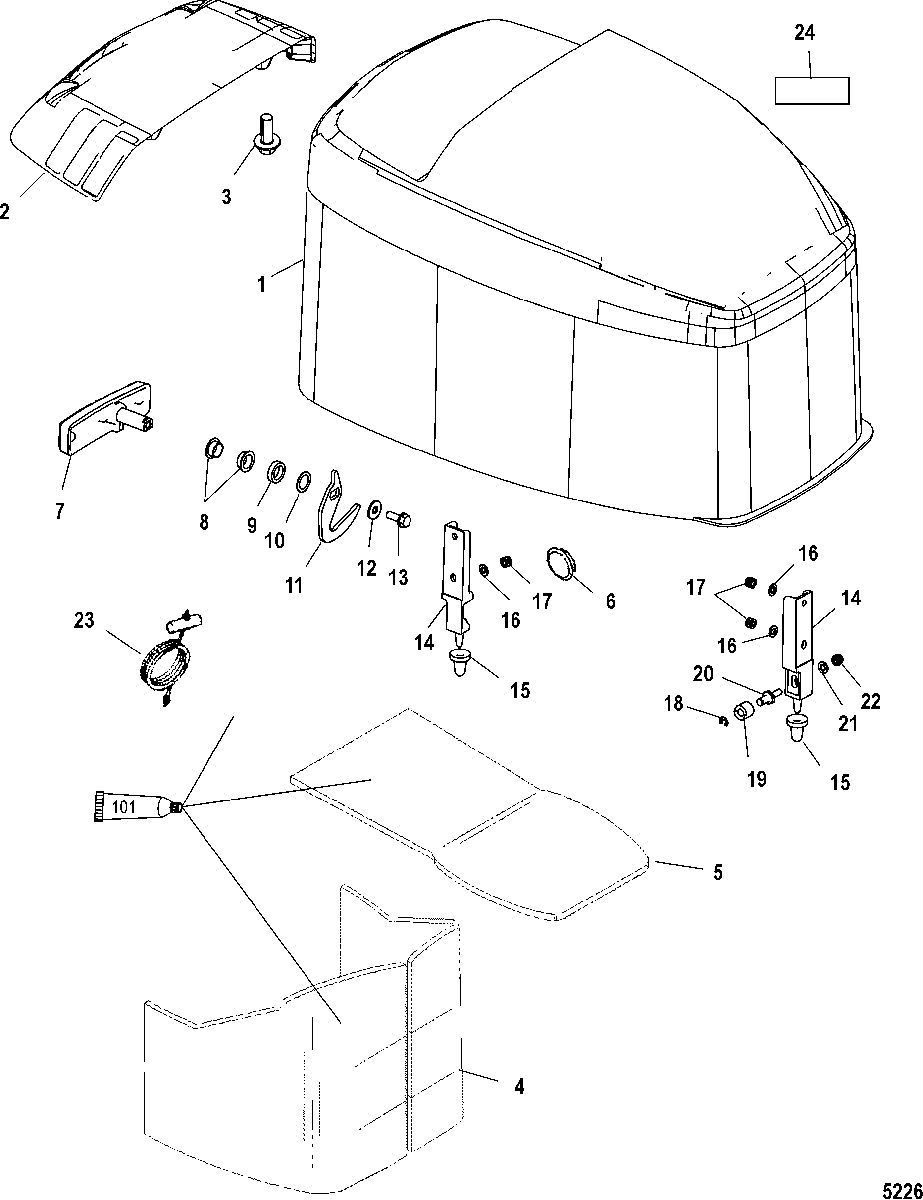

Top Cowl для Mercury - V-140 (INTERNATIONAL) 0T178500 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    100-8M0107145 TOP COWL ASSEMBLY, Black
    (BLACK)
    TOP COWL ASSEMBLY, Black
    (BLACK)
  • 1
    4021-827328T8 TOP COWL ASSEMBLY, Silver
    (SILVER)
    TOP COWL ASSEMBLY, Silver
    (SILVER)
  • 2
    821256T03 INLET, Air - Black
    (BLACK)
    INLET, Air - Black
    (BLACK)
  • 2
    821256T2 INLET, Air - Silver
    (SILVER)
    INLET, Air - Silver
    (SILVER)
  • 3
    10-82130016 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 4
    828344A02 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 5
    NSS NOT SOLD SEPARATE, Sound Blanket-Top
    NOT SOLD SEPARATE, Sound Blanket-Top
  • 6
    19-823865 CAP PLUG
    CAP PLUG
  • 7
    831207A16 HANDLE ASSEMBLY, Black
    HANDLE ASSEMBLY, Black
  • 8
    23-812707 BUSHING
    BUSHING
  • 9
    23-831214 SPACER
    SPACER
  • 10
    13-12134 WASHER, Wave
    WASHER, Wave
  • 11
    8M0001081 CAM, Latch Shaft
    SN# 0T800999 & Below
    CAM, Latch Shaft
    SN# 0T800999 & Below
  • 11
    8M0001081 CAM
    SN# 0T801000 & Up
    CAM
    SN# 0T801000 & Up
  • 12
    12-4002316 WASHER
    WASHER
  • 13
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 14
    8M0036792 BRACKET, Front
    BRACKET, Front
  • 15
    815477 BUMPER, Latch
    BUMPER, Latch
  • 16
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 17
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 18
    53-8237951 RING, Retaining
    RING, Retaining
  • 19
    815263 ROLLER
    ROLLER
  • 20
    8155381 PIN, Roll
    PIN, Roll
  • 21
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 22
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 23
    47341A11 ROPE AND HANDLE KIT, Manual Starting (FOR MANUAL STARTING)
    ROPE AND HANDLE KIT, Manual Starting (FOR MANUAL STARTING)
  • 24
    NSS NOT SOLD SEPARATE, Decal-Starting Procedure
    NOT SOLD SEPARATE, Decal-Starting Procedure
