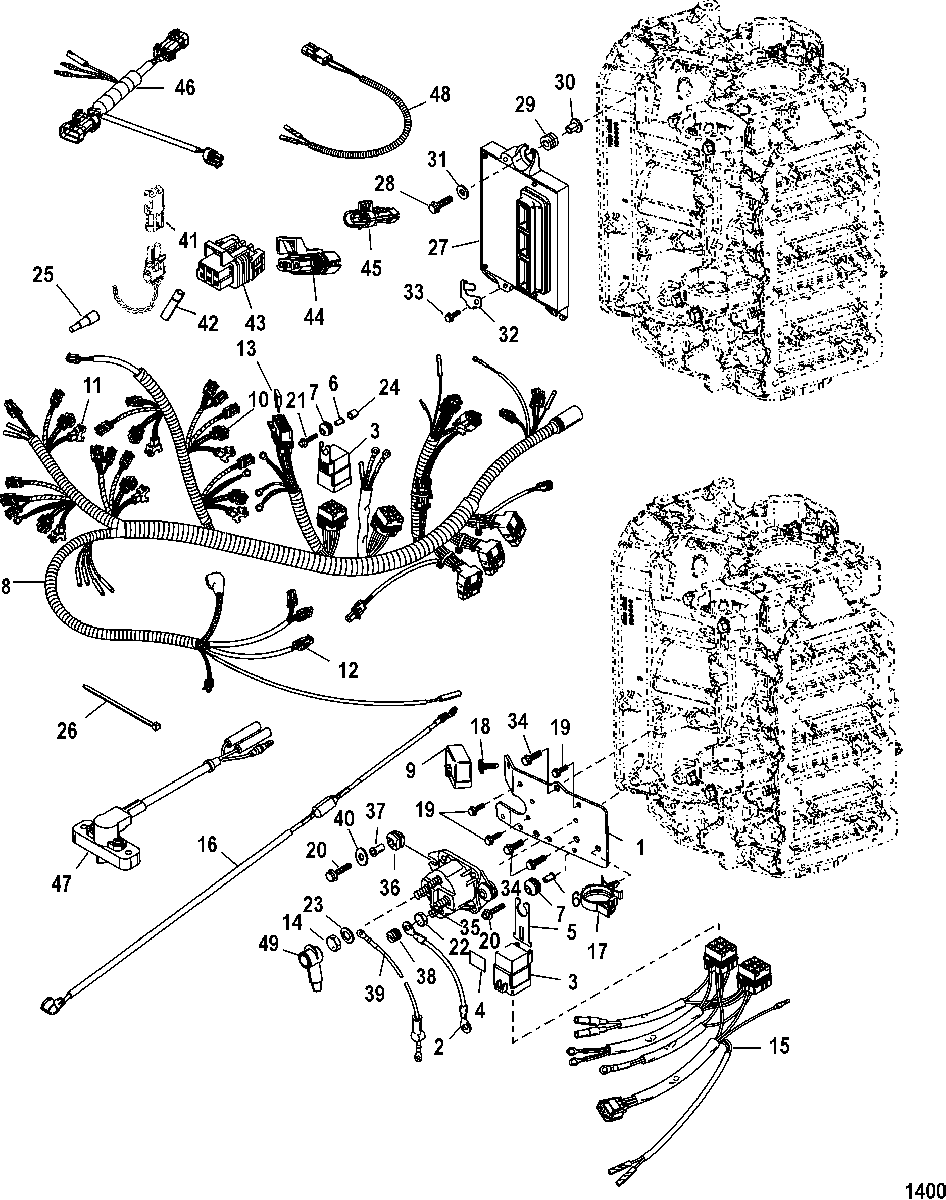

Electrical Plate Assembly для Mercury - V-135 DFI (2.5L) 0T801000 THRU 1B226999

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Electricl Plate Assembly
    NOT SOLD SEPARATE, Electricl Plate Assembly
  • 1
    833137F1 PLATE
    PLATE
  • 2
    84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
    CABLE ASSEMBLY, (4.00 Inches) Black
  • 3
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 4
    NSS NOT SOLD SEPARATE, Decal-Trim Relay
    NOT SOLD SEPARATE, Decal-Trim Relay
  • 5
    828102 BRACKET
    BRACKET
  • 6
    23-818968 BUSHING
    BUSHING
  • 7
    25-818967 GROMMET
    GROMMET
  • 8
    84-878084T4 HARNESS ASSEMBLY, Engine Wiring
    HARNESS ASSEMBLY, Engine Wiring
  • 9
    858754 COVER, Fuse
    COVER, Fuse
  • 10
    879346A49 HARNESS ASSEMBLY (DIRECT INJECTOR)
    HARNESS ASSEMBLY (DIRECT INJECTOR)
  • 11
    879346A50 HARNESS ASSEMBLY (FUEL INJECTOR)
    HARNESS ASSEMBLY (FUEL INJECTOR)
  • 12
    879346A41 HARNESS ASSEMBLY (TPS)
    HARNESS ASSEMBLY (TPS)
  • -
    879346A52 HARNESS ASSEMBLY, Encoder, Crank Position Sensor
    HARNESS ASSEMBLY, Encoder, Crank Position Sensor
  • -
    84-881262A2 HARNESS ASSEMBLY, Alternator, Alternator
    HARNESS ASSEMBLY, Alternator, Alternator
  • 13
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    (20 AMP)
    FUSE, Mini - Yellow - 20 Ampere
    (20 AMP)
  • 13
    88-832969T05 FUSE, Mini - Tan - 5 Ampere
    (5 AMP)
    FUSE, Mini - Tan - 5 Ampere
    (5 AMP)
  • 14
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 15
    84-819514T16 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 16
    84-878231A6 HARNESS ASSEMBLY, Fuse - 100 Ampere
    HARNESS ASSEMBLY, Fuse - 100 Ampere
  • 17
    54-858755 CLIP, (1.00)
    CLIP, (1.00)
  • 18
    54-828991T CLIP
    CLIP
  • 19
    10-82129110 SCREW, (M6 x 10)
    SCREW, (M6 x 10)
  • 20
    10-82129125 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 21
    10-82129135 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 22
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 23
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 24
    23-91912 BUSHING
    BUSHING
  • 25
    13541 PLUG, Male
    PLUG, Male
  • 26
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 27
    89790618T ECM, Engine Control Module
    (135)
    ECM, Engine Control Module
    (135)
  • 27
    89790619T ECM, Engine Control Module
    (150)
    ECM, Engine Control Module
    (150)
  • 27
    89790620T ECM, Engine Control Module
    (175)
    ECM, Engine Control Module
    (175)
  • 28
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 29
    23-856954 BUSHING
    BUSHING
  • 30
    25-834985 GROMMET
    GROMMET
  • 31
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 32
    8590881 CLIP
    CLIP
  • 33
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 34
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 35
    89-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
    SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
  • 36
    25-822179 GROMMET
    GROMMET
  • 37
    23-818968 BUSHING
    BUSHING
  • 38
    11-813938 CAP NUT, (#10-32)
    CAP NUT, (#10-32)
  • 39
    84-882829A1 CABLE ASSEMBLY, Starter
    CABLE ASSEMBLY, Starter
  • 40
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 41
    832948A1 CONNECTOR ASSEMBLY
    (TRACKER)
    CONNECTOR ASSEMBLY
    (TRACKER)
  • 42
    13540 CAP, Female
    (TRACKER)
    CAP, Female
    (TRACKER)
  • 43
    881065A1 CONNECTOR, 6 Pin Plug
    CONNECTOR, 6 Pin Plug
  • 44
    881175A1 CAP ASSEMBLY, Connector
    (COUNTER ROTATION)
    CAP ASSEMBLY, Connector
    (COUNTER ROTATION)
  • 45
    881176A1 CAP ASSEMBLY, Connector
    (COUNTER ROTATION)
    CAP ASSEMBLY, Connector
    (COUNTER ROTATION)
  • 46
    84-859244A2 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 47
    859187A1 SENDER ASSEMBLY, Trim
    (NON TRACKER)
    SENDER ASSEMBLY, Trim
    (NON TRACKER)
  • 48
    84-859316T1 HARNESS ASSEMBLY, Diagnostic Adaptor
    HARNESS ASSEMBLY, Diagnostic Adaptor
  • 49
    85-8500671 BOOT, Insulator - Red
    BOOT, Insulator - Red
