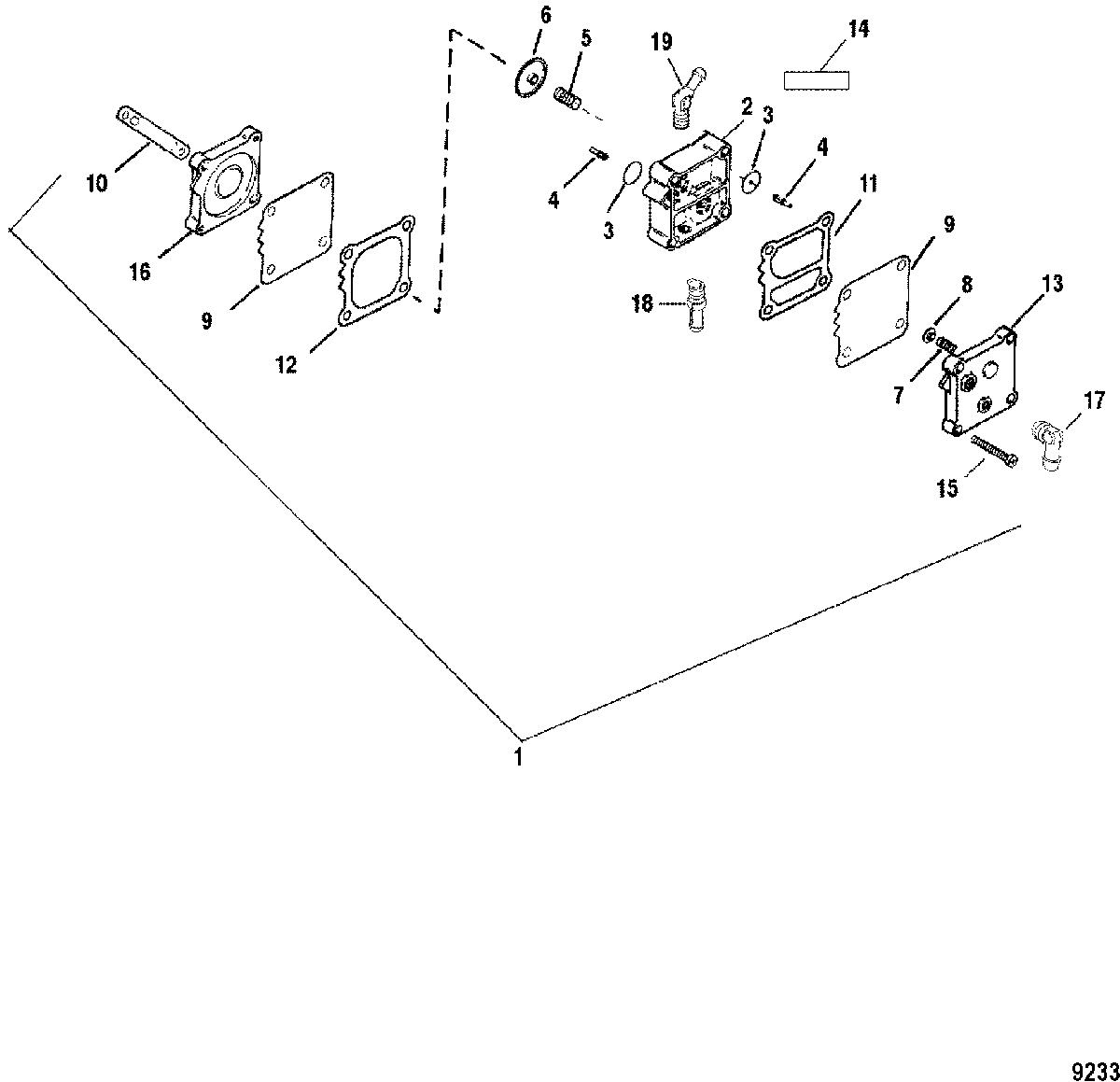

Fuel Pump для Mercury - V-135 DFI (2.5L) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    14360T75 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    NSS NOT SOLD SEPARATE, Body-Fuel Pump
    NOT SOLD SEPARATE, Body-Fuel Pump
  • 3
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 4
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 5
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 6
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 10
    27-987691 GASKET
    GASKET
  • 11
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 12
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 13
    987752 PLATE
    PLATE
  • 14
    NSS NOT SOLD SEPARATE, Decal
    NOT SOLD SEPARATE, Decal
  • 15
    10-82104540 SCREW, (M5 x 40), Fuel Pump
    SCREW, (M5 x 40), Fuel Pump
  • 15
    10-82130050 SCREW, (M6 x 50), Pump to Crankcase
    SCREW, (M6 x 50), Pump to Crankcase
  • 16
    144303 BASE
    BASE
  • 17
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 18
    22-291112 FITTING
    FITTING
  • 19
    22-782792 FITTING, Elbow 45 Degree (1.25)
    FITTING, Elbow 45 Degree (1.25)
  • -
    27-8M0046714 GASKET SET, Engine
    GASKET SET, Engine
  • -
    854008T00 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
