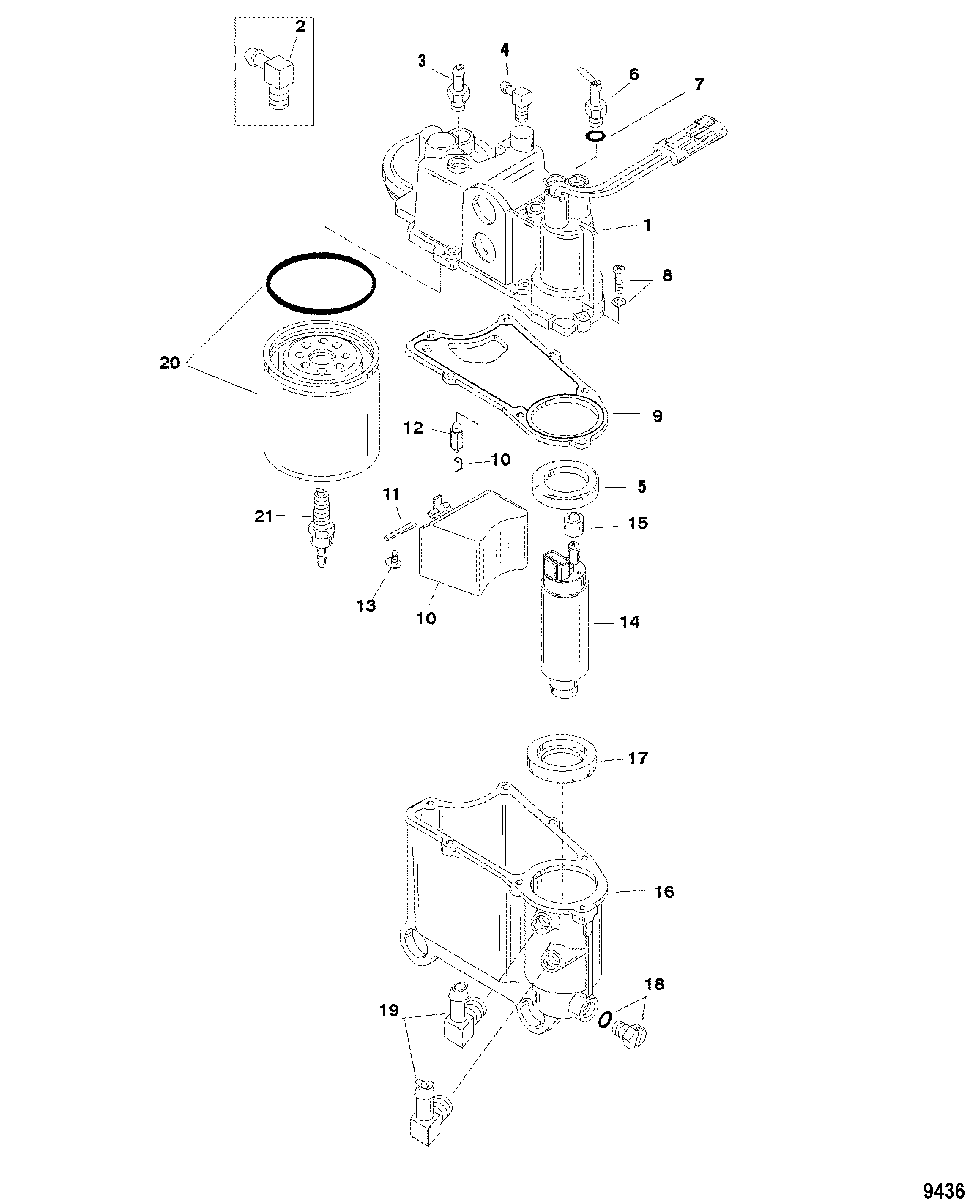

Vapor Separator Components для Mercury - V-135 DFI (2.5L) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    855432A1 COVER KIT
    COVER KIT
  • 2
    NSS NOT SOLD SEPARATE, Elbow
    (DESIGN I - REFER TO SERVICE BULLETIN 98-8)
    NOT SOLD SEPARATE, Elbow
    (DESIGN I - REFER TO SERVICE BULLETIN 98-8)
  • 3
    22-8568431 FITTING, Straight, STRAIGHT
    (DESIGN II)
    FITTING, Straight, STRAIGHT
    (DESIGN II)
  • 4
    22-19688 FITTING
    FITTING
  • 5
    26-803878 SEAL
    SEAL
  • 6
    NSS NOT SOLD SEPARATE, Fitting Kit-Pump Outlet
    (DESIGN I - 3/8 IN. I.D. - REFER TO SERVICE BULLETIN 98-8)
    NOT SOLD SEPARATE, Fitting Kit-Pump Outlet
    (DESIGN I - 3/8 IN. I.D. - REFER TO SERVICE BULLETIN 98-8)
  • 6
    22-855437A2 FITTING KIT, Pump Outlet
    (DESIGN II - 5/16 IN. I.D.)
    FITTING KIT, Pump Outlet
    (DESIGN II - 5/16 IN. I.D.)
  • 7
    NSS NOT SOLD SEPARATE, O Ring
    NOT SOLD SEPARATE, O Ring
  • 8
    1395-808612 SCREW AND WASHER, (#8-32 x .750)
    SCREW AND WASHER, (#8-32 x .750)
  • 9
    98-8M6002520 GASKET
    GASKET
  • 10
    8M6004920 FLOAT KIT
    FLOAT KIT
  • 11
    F10064 SHAFT
    SHAFT
  • 12
    8M6004917 VALVE, Needle
    VALVE, Needle
  • 13
    1395-5902 SCREW, (#6-32 x .187)
    SCREW, (#6-32 x .187)
  • 14
    855427A1 PUMP KIT
    PUMP KIT
  • 15
    8M6000589 SLEEVE
    SLEEVE
  • 16
    855434A1 BOWL KIT
    BOWL KIT
  • 17
    26-8554331 SEAL
    SEAL
  • 18
    19-855435A1 PLUG KIT
    PLUG KIT
  • 19
    22-8554245 ELBOW
    ELBOW
  • 20
    35-18458Q4 FILTER KIT
    FILTER KIT
  • 21
    8285861 PROBE
    PROBE
