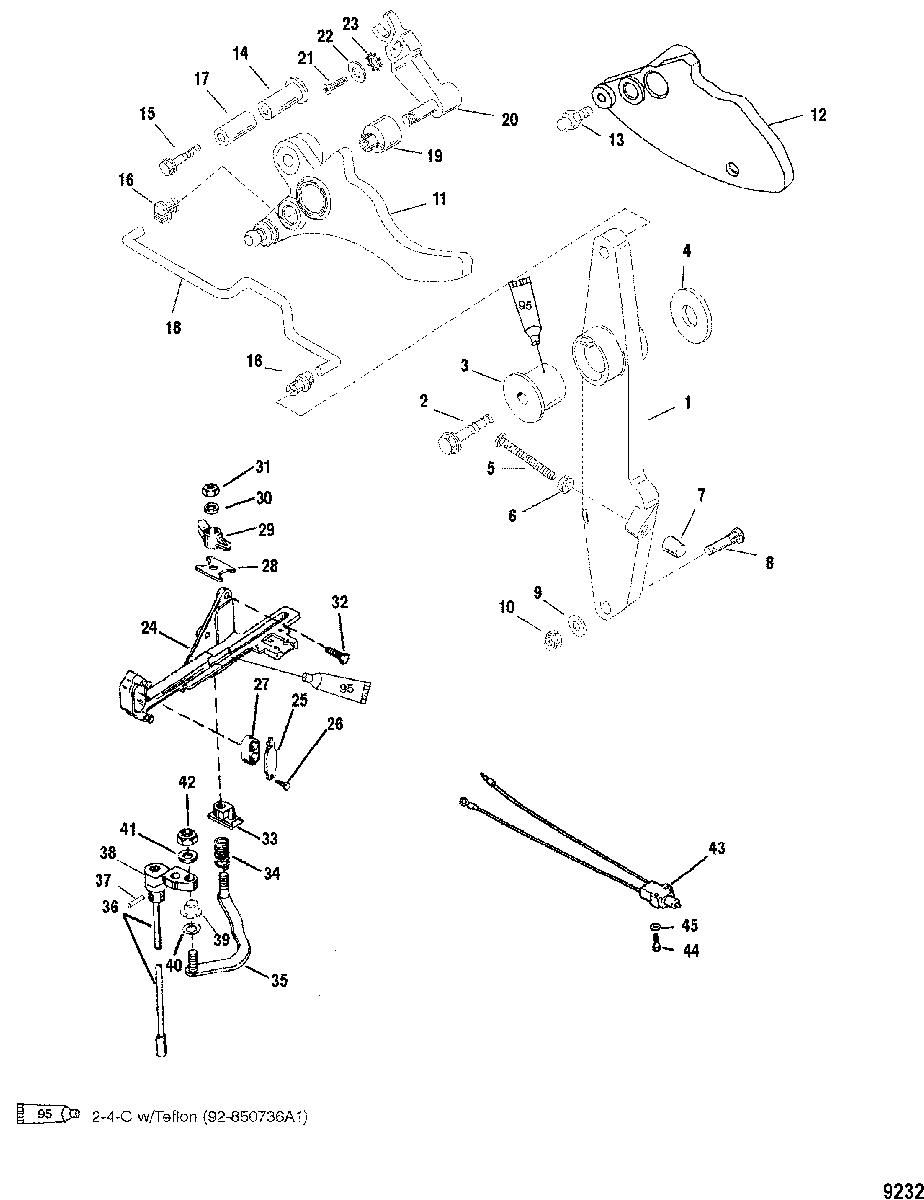

Throttle Lever and Shift Shaft для Mercury - V-115 DFI (2.5L) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    8M0040990 LEVER
    LEVER
  • 2
    10-818165 SCREW, (.375-16 x 1.75)
    SCREW, (.375-16 x 1.75)
  • 3
    23-55164 BUSHING
    BUSHING
  • 4
    23-858959 SPACER
    SPACER
  • 5
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 6
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 7
    26852 CAP, Nylon
    CAP, Nylon
  • 8
    42927 INSERT
    INSERT
  • 9
    12-35459 WASHER
    WASHER
  • 10
    11-401386 NUT, (M6)
    NUT, (M6)
  • 11
    8562211 CAM
    (135/150)
    CAM
    (135/150)
  • 12
    858847 CAM
    (115)
    CAM
    (115)
  • 13
    8235694 BALL, Threaded
    (115)
    BALL, Threaded
    (115)
  • 14
    23-856895 BUSHING
    BUSHING
  • 15
    10-81893440 SCREW, (M8 x 40)
    SCREW, (M8 x 40)
  • 16
    23-932481 BUSHING
    BUSHING
  • 17
    30-856896 BEARING
    BEARING
  • 18
    8508152 LINK
    LINK
  • 19
    67748 ROLLER
    ROLLER
  • 20
    850286A03 LEVER
    LEVER
  • 21
    10-40056107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 22
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 23
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 24
    814283T6 BRACKET, Anchor
    BRACKET, Anchor
  • 25
    98889 LATCH
    LATCH
  • 26
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 27
    39519 CUP
    CUP
  • 28
    52100 WEAR PLATE
    WEAR PLATE
  • 29
    8M0036768 LATCH
    LATCH
  • 30
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 31
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 32
    10-28782 SCREW, (.312-18 x .880) Stainless Steel
    SCREW, (.312-18 x .880) Stainless Steel
  • 33
    814284 GUIDE BLOCK
    GUIDE BLOCK
  • 34
    24-20099 SPRING
    SPRING
  • 35
    67073A1 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 36
    79932A16 SHIFT SHAFT ASSEMBLY
    (LONG)
    SHIFT SHAFT ASSEMBLY
    (LONG)
  • 36
    79932A17 SHIFT SHAFT ASSEMBLY
    (X-LONG)
    SHIFT SHAFT ASSEMBLY
    (X-LONG)
  • 37
    NSS NOT SOLD SEPARATE, Roll Pin
    NOT SOLD SEPARATE, Roll Pin
  • 38
    NSS NOT SOLD SEPARATE, Shift Shaft Lever-Upper
    NOT SOLD SEPARATE, Shift Shaft Lever-Upper
  • 39
    23-26856 BUSHING
    BUSHING
  • 40
    13-29720 WAVE WASHER
    WAVE WASHER
  • 41
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 42
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 43
    87-8M0052931 SWITCH
    SWITCH
  • 44
    10-77478 SCREW, (#6-32 x .875)
    SCREW, (#6-32 x .875)
  • 45
    12-27882 WASHER
    WASHER
