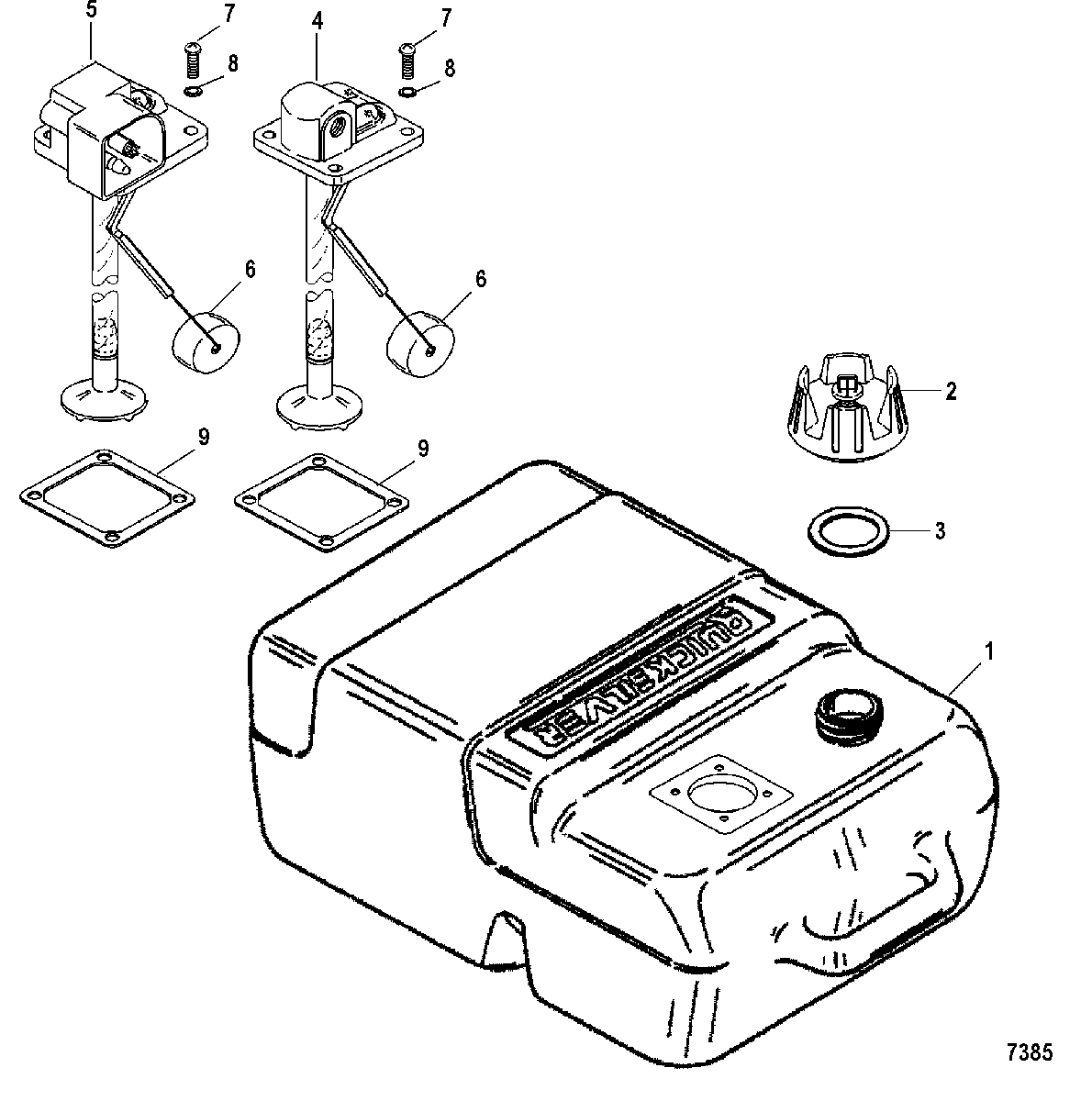

Fuel Tank Assembly(3.2 Gallon) для Mercury - 9.9 0P325500 & Up
-
№АртикулНазвание
-
11260-859061A1 TANK ASSEMBLY, FuelTANK ASSEMBLY, Fuel
-
11260-859061A2 TANK ASSEMBLY, FuelTANK ASSEMBLY, Fuel
-
236-816976Q1 CAP ASSEMBLY, FuelCAP ASSEMBLY, Fuel
-
327-8169771 GASKET, Fuel CapGASKET, Fuel Cap
-
48M0047601 PICK UP ASSEMBLYPICK UP ASSEMBLY
-
58M0084088 PICK UP ASSEMBLYPICK UP ASSEMBLY
-
6859056 FLOATFLOAT
-
710-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
812-859080 WASHERWASHER
-
927-859072 GASKETGASKET
