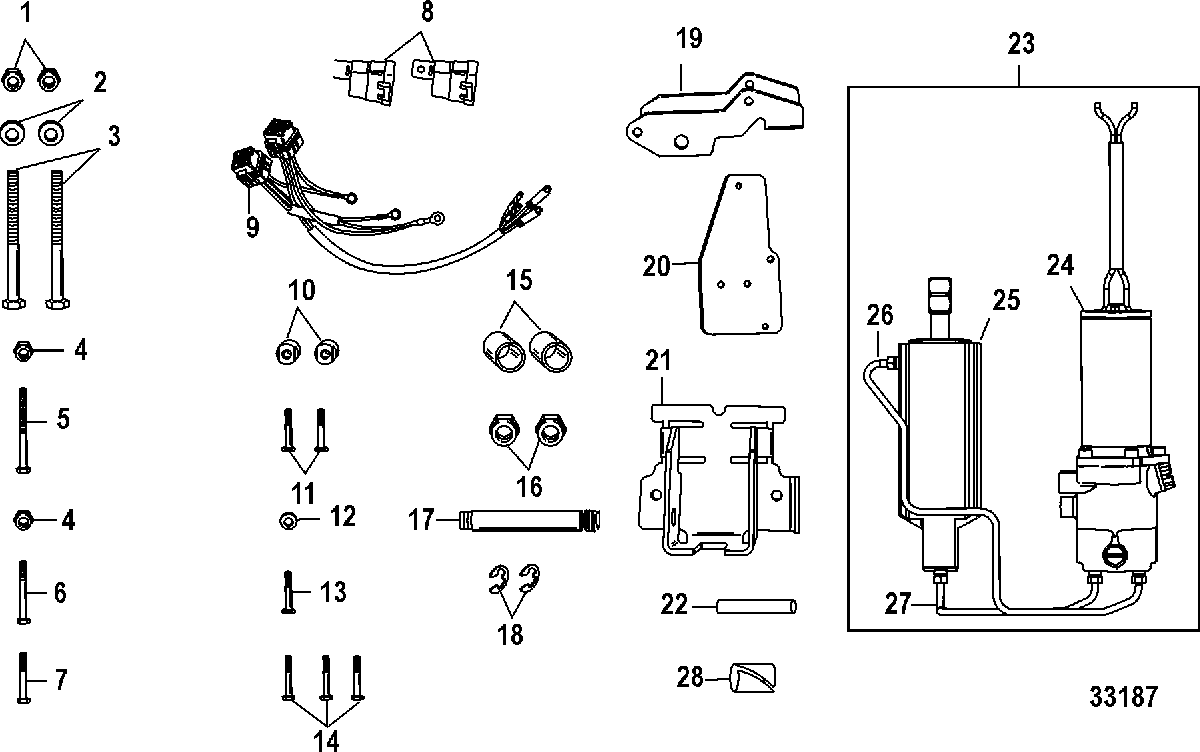

Power Trim Kit, 850700A07 для Mercury - 9.9 (4-STROKE)(209cc) 0R042475 & Up

  • №
    Артикул
    Название
  • -
    850700A07 POWER TRIM KIT
    POWER TRIM KIT
  • 1
    11-82670910 NUT, (.312-18) Stainless Steel
    NUT, (.312-18) Stainless Steel
  • 2
    12-67981 WASHER
    WASHER
  • 3
    10-814945 SCREW, (.312-18 x 3.500) Stainless Steel
    SCREW, (.312-18 x 3.500) Stainless Steel
  • 4
    11-8267118 NUT, (.250-20)
    NUT, (.250-20)
  • 5
    10-70732 SCREW, (.250-20 x 2.00)
    SCREW, (.250-20 x 2.00)
  • 6
    10-817504 SCREW, (.250-20 x 1.500) Stainless Steel
    SCREW, (.250-20 x 1.500) Stainless Steel
  • 7
    10-8472681 SCREW, (.250-28 x 1.00)
    SCREW, (.250-28 x 1.00)
  • 8
    8M0052578 RELAY
    RELAY
  • 9
    84-819514A63 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 10
    23-850711 SPACER
    SPACER
  • 11
    10-38601 SCREW, (.250-28 x 1.250)
    SCREW, (.250-28 x 1.250)
  • 12
    12-35044 WASHER, (.281 x .625 x .065) Stainless Steel
    WASHER, (.281 x .625 x .065) Stainless Steel
  • 13
    10-96138 SCREW, (.250-28 x .620)
    SCREW, (.250-28 x .620)
  • 14
    10-817505 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 15
    23-850704 SPACER
    SPACER
  • 16
    11-826709117 NUT, (.500-20) Stainless Steel
    NUT, (.500-20) Stainless Steel
  • 17
    17-820618 PIN
    PIN
  • 18
    53-13194 RING, Retaining
    RING, Retaining
  • 19
    850710T2 BRACKET
    BRACKET
  • 20
    850713T1 PLATE
    PLATE
  • 21
    850712T2 BRACKET
    BRACKET
  • 22
    17-8507021 PIN
    PIN
  • 23
    NSS NOT SOLD SEPARATE, Pump/Motor Assembly
    NOT SOLD SEPARATE, Pump/Motor Assembly
  • 24
    859725T02 PUMP/MOTOR ASSEMBLY
    PUMP/MOTOR ASSEMBLY
  • 25
    859725T02 CYLINDER ASSEMBLY
    CYLINDER ASSEMBLY
  • 26
    32-859647 LINE
    LINE
  • 27
    32-859646 LINE
    LINE
  • 28
    23-31757 BUSHING
    BUSHING
