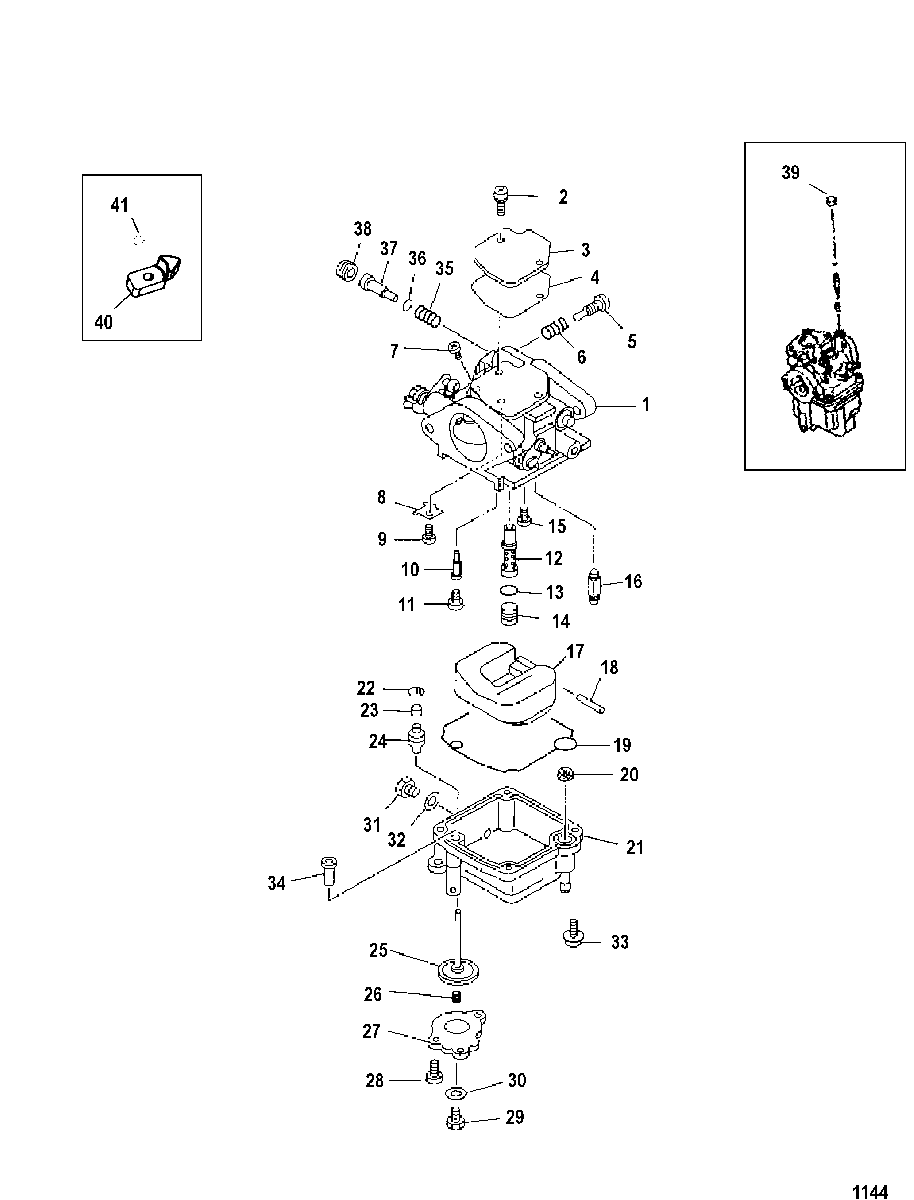

Carburetor для Mercury - 9.9 (4-STROKE) (323 cc) 0P075166 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    3323-856919T2 CARBURETOR
    (9.9)
    CARBURETOR
    (9.9)
  • 1
    3323-835382A2 CARBURETOR
    (8/9.9 Bodensee)
    CARBURETOR
    (8/9.9 Bodensee)
  • 1
    3323-856918A1 CARBURETOR
    (15 Bodensee)
    CARBURETOR
    (15 Bodensee)
  • 1
    3323-835382T04 CARBURETOR
    (13.5/15) (Without Tamper Cap)
    CARBURETOR
    (13.5/15) (Without Tamper Cap)
  • 1
    3323-835382T04 CARBURETOR
    (13.5/15) (With Tamper Cap)
    CARBURETOR
    (13.5/15) (With Tamper Cap)
  • -
    19-854248002 CAP, Tamper
    CAP, Tamper
  • 2
    10-809571 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 3
    8095721 COVER
    COVER
  • 4
    809573 GASKET
    GASKET
  • 5
    10-8095781 SCREW, Throttle
    SCREW, Throttle
  • 6
    24-8095791 SPRING
    SPRING
  • 7
    10-811248M SCREW, (M4 x 5)
    SCREW, (M4 x 5)
  • 8
    802705 COVER
    COVER
  • 9
    10-8026921 SCREW, (M3 x 5)
    SCREW, (M3 x 5)
  • 10
    8027011 PILOT JET, (#45)
    PILOT JET, (#45)
  • 11
    19-802702 PLUG
    PLUG
  • 12
    802700 MAIN NOZZLE
    (13.5/15)
    MAIN NOZZLE
    (13.5/15)
  • 12
    8027001 MAIN NOZZLE
    (15 Bodensee)
    MAIN NOZZLE
    (15 Bodensee)
  • 12
    8027002 MAIN NOZZLE
    (8/9.9)
    MAIN NOZZLE
    (8/9.9)
  • 13
    25-11802M O-RING
    O-RING
  • 14
    802701 JET, Main (#104)
    (13.5/15)
    JET, Main (#104)
    (13.5/15)
  • 14
    8027012 JET, Main (#103)
    (15 BODENSEE)
    JET, Main (#103)
    (15 BODENSEE)
  • 14
    8027013 JET, Main (#68)
    (8/9.9)
    JET, Main (#68)
    (8/9.9)
  • 15
    10-8095711 SCREW, (M4 x 5)
    SCREW, (M4 x 5)
  • 16
    8095701 VALVE, Needle
    VALVE, Needle
  • 17
    809569 FLOAT
    FLOAT
  • 18
    17-11794M PIN
    PIN
  • 19
    27-802699 GASKET
    GASKET
  • 20
    35-802704 FILTER
    FILTER
  • 21
    802690T3 FLOAT BOWL ASSEMBLY
    (13.5/15) SN# USA-0T800999/BEL-0P267999 & Below
    FLOAT BOWL ASSEMBLY
    (13.5/15) SN# USA-0T800999/BEL-0P267999 & Below
  • 21
    802690T3 FLOAT BOWL ASSEMBLY
    (13.5/15) SN# USA-0T801000/BEL-0P268000 & Up
    FLOAT BOWL ASSEMBLY
    (13.5/15) SN# USA-0T801000/BEL-0P268000 & Up
  • 21
    802690T2 FLOAT BOWL ASSEMBLY
    (8/9.9)
    FLOAT BOWL ASSEMBLY
    (8/9.9)
  • 22
    53-802693 RING, Retaining
    (13.5/15)
    RING, Retaining
    (13.5/15)
  • 23
    802698 CAP
    (13.5/15)
    CAP
    (13.5/15)
  • 24
    802697 SEAL
    (13.5/15)
    SEAL
    (13.5/15)
  • 25
    802695 DIAPHRAGM
    (13.5/15)
    DIAPHRAGM
    (13.5/15)
  • 26
    24-802696 SPRING
    (13.5/15)
    SPRING
    (13.5/15)
  • 27
    802694 PLATE
    (13.5/15)
    PLATE
    (13.5/15)
  • 28
    10-802692 SCREW, (M4 x 8)
    (13.5/15)
    SCREW, (M4 x 8)
    (13.5/15)
  • 29
    22-14183M PLUG, Drain (M4 x 5)
    (13.5/15)
    PLUG, Drain (M4 x 5)
    (13.5/15)
  • 30
    27-8026911 GASKET
    (13.5/15)
    GASKET
    (13.5/15)
  • 31
    10-8095783 SCREW, Drain (M5 x 6)
    (Not Included With 8/9.9 Bowl)
    SCREW, Drain (M5 x 6)
    (Not Included With 8/9.9 Bowl)
  • 32
    27-802691 GASKET
    (Not Included With 8/9.9 Bowl)
    GASKET
    (Not Included With 8/9.9 Bowl)
  • 33
    10-81758M SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 34
    21-802703 CHECK VALVE
    (13.5/15)
    CHECK VALVE
    (13.5/15)
  • 35
    NSS NOT SOLD SEPARATE, Spring-Air Adjusting
    NOT SOLD SEPARATE, Spring-Air Adjusting
  • 36
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 37
    NSS NOT SOLD SEPARATE, Screw-Air Adjusting
    NOT SOLD SEPARATE, Screw-Air Adjusting
  • 38
    19-855237 PLUG
    PLUG
  • 39
    26-827737 SEAL, Rubber
    (Bodensee)
    SEAL, Rubber
    (Bodensee)
  • 40
    859200 STOP, Throttle
    (8 Bodensee)
    STOP, Throttle
    (8 Bodensee)
  • 41
    11-821285 PUSH NUT
    (8 Bodensee)
    PUSH NUT
    (8 Bodensee)
  • -
    802706A1 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
