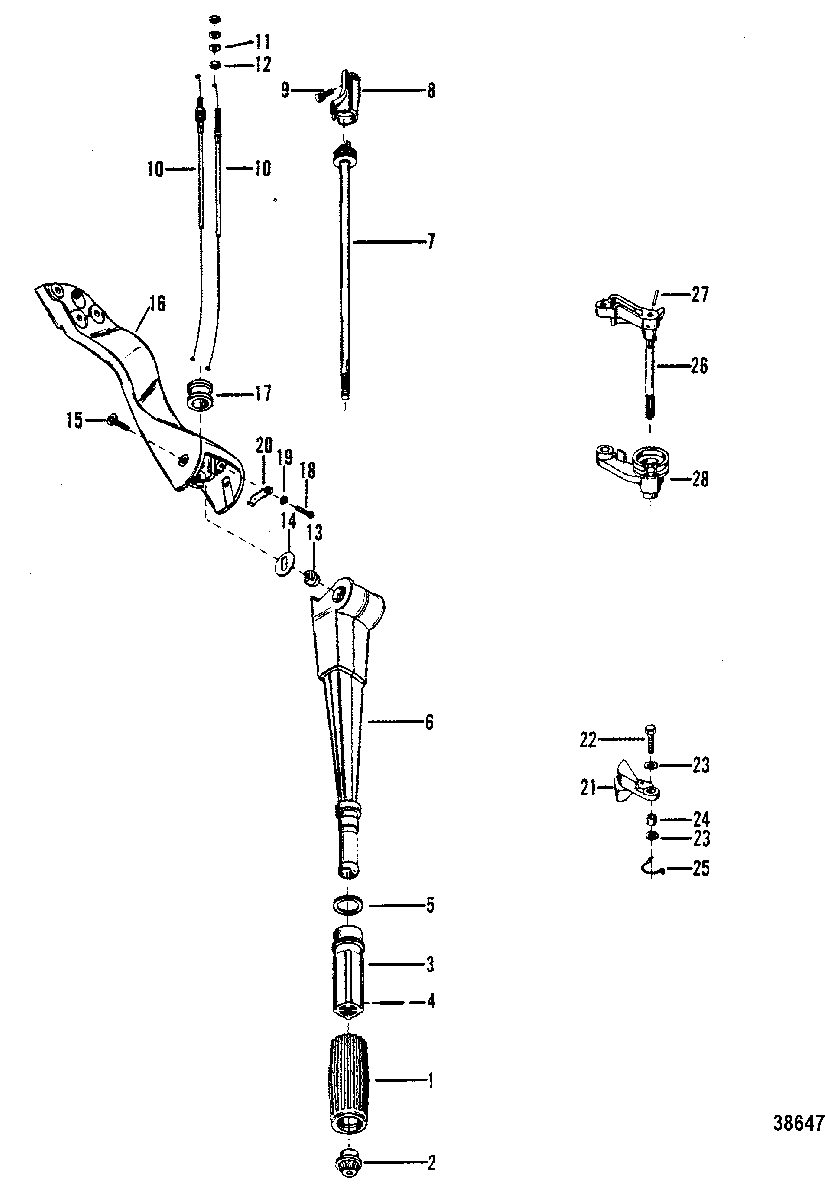

STEERING HANDLE AND THROTTLE LINKAGE для Mercury - 9.8 8057545 & Up
-
№АртикулНазвание
-
-77194A2 HANDLE ASSEMBLY, SteeringHANDLE ASSEMBLY, Steering
-
160854 GRIP, HANDLEGRIP, HANDLE
-
277237 CAP, HANDLECAP, HANDLE
-
377238A1 HANDLE, THROTTLE SHAFTHANDLE, THROTTLE SHAFT
-
417-31656 PIN, STEERING HANDLEPIN, STEERING HANDLE
-
512-62252 WASHER
THROTTLE HANDLE TO STEERING ARMWASHER
THROTTLE HANDLE TO STEERING ARM -
677194 ARM, STEERING HANDLEARM, STEERING HANDLE
-
797379 SHAFT, THROTTLESHAFT, THROTTLE
-
7973791 SHAFT, Throttle
(180 cc SailPower)SHAFT, Throttle
(180 cc SailPower) -
877203 BLOCK, CABLE GUIDEBLOCK, CABLE GUIDE
-
910-69069 SCREW, (.250-28 x .750), BLOCK TO STEERING ARMSCREW, (.250-28 x .750), BLOCK TO STEERING ARM
-
1086210 CABLE, THROTTLECABLE, THROTTLE
-
1112-37998 WASHER, THROTTLE CABLEWASHER, THROTTLE CABLE
-
1211-21825 NUT, (.250-28), THROTTLE CABLENUT, (.250-28), THROTTLE CABLE
-
1348003 PIVOT, STEERING HANDLE TO BRACKETPIVOT, STEERING HANDLE TO BRACKET
-
1415-48002015 SHIM (.015)SHIM (.015)
-
1510-96138 SCREW, (.250-28 x .620)SCREW, (.250-28 x .620)
-
1696432F1 BRACKET, STEERING ARMBRACKET, STEERING ARM
-
1725-67272 GROMMET, STEERING ARM BRACKETGROMMET, STEERING ARM BRACKET
-
1810-62233 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1912-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, DETENT SPRINGWASHER, (.192 x .375 x .0312) Stainless Steel, DETENT SPRING
-
2024-72847 SPRING, DETENT - STEERING HANDLESPRING, DETENT - STEERING HANDLE
-
2186212 FOLLOWER, OVER - SPEED LIMITERFOLLOWER, OVER - SPEED LIMITER
-
2210-20653 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
2312-29245 WASHER, (.281 x .500 x .060) Stainless Steel, SPEED LIMITER FOLLOWER SCREWWASHER, (.281 x .500 x .060) Stainless Steel, SPEED LIMITER FOLLOWER SCREW
-
2423-63320 BUSHING, SPEED LIMITER FOLLOWER SCREWBUSHING, SPEED LIMITER FOLLOWER SCREW
-
2524-39042 SPRING, NEUTRAL SPEED LIMITER FOLLOWERSPRING, NEUTRAL SPEED LIMITER FOLLOWER
-
2666374A2 LEVER ASSEMBLY, THROTTLE CONTROLLEVER ASSEMBLY, THROTTLE CONTROL
-
2717-76207 PIN, Roll, THROTTLE CONTROL LEVERPIN, Roll, THROTTLE CONTROL LEVER
-
2886070 SPOOL, THROTTLESPOOL, THROTTLE
