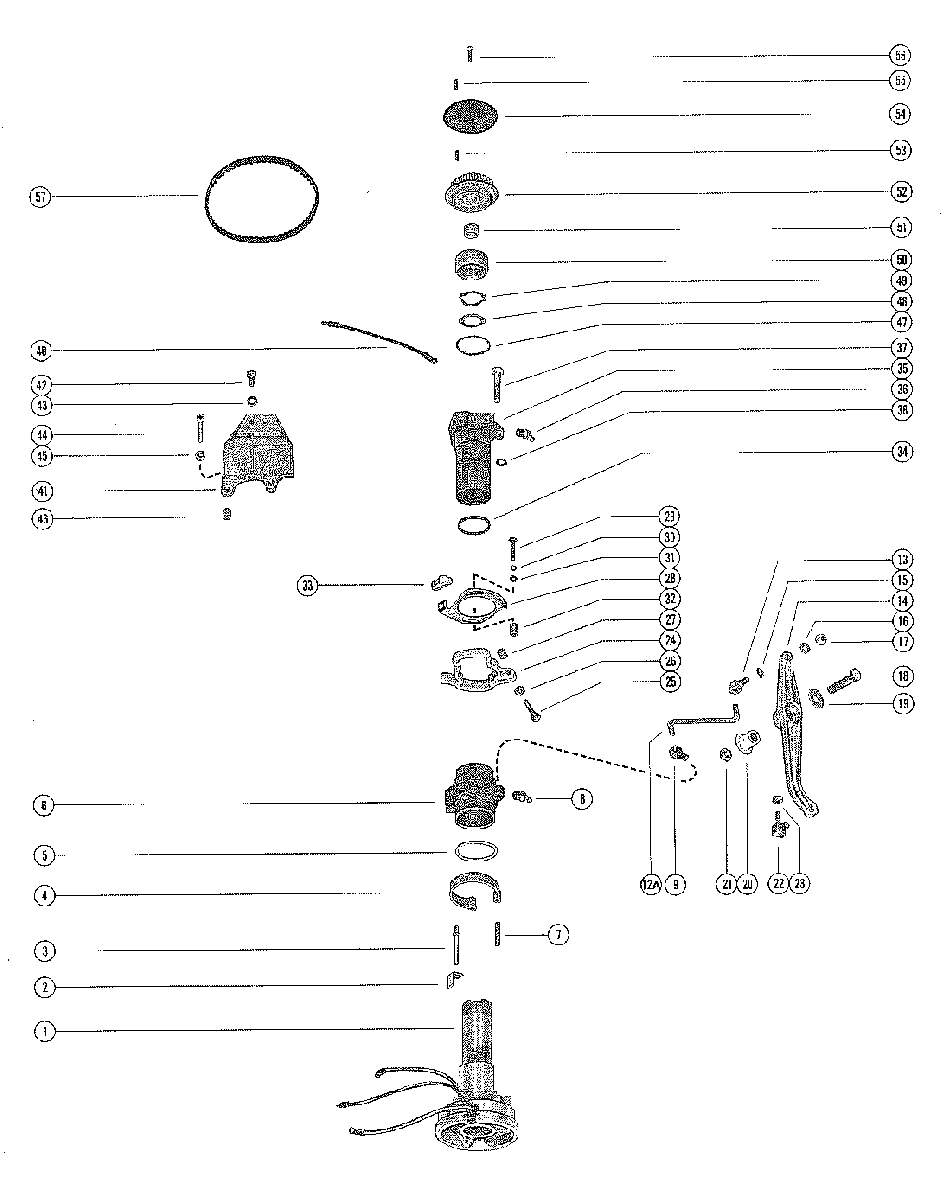

DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE для Mercury - 900, 90 4845301 THRU 5299505
-
№АртикулНазвание
-
1393-3736A79 HOUSING ASSEMBLY, DISTRIBUTORHOUSING ASSEMBLY, DISTRIBUTOR
-
232197 STOP, SPARK ADVANCE - DISTRIBUTOR HOUSINGSTOP, SPARK ADVANCE - DISTRIBUTOR HOUSING
-
317-27962 PIN, ANCHOR SPRING - DISTRIBUTOR HOUSINGPIN, ANCHOR SPRING - DISTRIBUTOR HOUSING
-
424-27944 SPRING, HORSESHOE - DISTRIBUTOR HOUSINGSPRING, HORSESHOE - DISTRIBUTOR HOUSING
-
512-53540 WASHER
ECONOMIZER COLLAR - DISTRIBUTOR HOUSINGWASHER
ECONOMIZER COLLAR - DISTRIBUTOR HOUSING -
655804A1 ECONOMIZER COLLAR ASSEMBLYECONOMIZER COLLAR ASSEMBLY
-
717-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINERPIN, ECONOMIZER COLLAR - SPRING RETAINER
-
822-25094 FITTING, GREASE - ECONOMIZER COLLARFITTING, GREASE - ECONOMIZER COLLAR
-
927947 SWIVEL, LINKAGE - ECONOMIZER COLLARSWIVEL, LINKAGE - ECONOMIZER COLLAR
-
12A67469 ROD, LINK - UPPERROD, LINK - UPPER
-
1327948 SWIVEL
UPPER LINK ROD TO THROTTLE CONTROL LEVERSWIVEL
UPPER LINK ROD TO THROTTLE CONTROL LEVER -
1478992 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
1513-39954 WASHER
WAVE - THROTTLE CONTROL LEVER SWIVELWASHER
WAVE - THROTTLE CONTROL LEVER SWIVEL -
1612-29245 WASHER, THROTTLE CONTROL LEVER SWIVELWASHER, THROTTLE CONTROL LEVER SWIVEL
-
1711-35888 NUT, UPPER LINK ROD THROTTLE CONTROL LEVERNUT, UPPER LINK ROD THROTTLE CONTROL LEVER
-
1810-31830 SCREW
THROTTLE LEVER TO EXHAUST COVER (1 3/4")SCREW
THROTTLE LEVER TO EXHAUST COVER (1 3/4") -
1912-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREWWASHER, THROTTLE CONTROL LEVER SCREW
-
2023-45818 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
2111-8M0042636 NUT, THROTTLE CONTROL LEVER SCREWNUT, THROTTLE CONTROL LEVER SCREW
-
2237587 SWIVEL
LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLESWIVEL
LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE -
2311-35888 NUT, THROTTLE CABLE TO LOWER SWIVELNUT, THROTTLE CABLE TO LOWER SWIVEL
-
2448692 COLLAR, THROTTLE ACTUATORCOLLAR, THROTTLE ACTUATOR
-
2510-48675 SCREW, ADJUSTING - THROTTLE ACTUATOR COLLAR (1 1/2")SCREW, ADJUSTING - THROTTLE ACTUATOR COLLAR (1 1/2")
-
2611-64015 NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREWNUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
-
2752023 CAP, NYLON - THROTTLE ACTUATOR COLLAR ADJUSTING SCREWCAP, NYLON - THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
-
2848671 PLATE, THROTTLE ACTUATORPLATE, THROTTLE ACTUATOR
-
2910-37892 SCREW
THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")SCREW
THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1") -
3012-30164 WASHER
THROTTLE ACTUATOR PLATE FASTENING SCREWWASHER
THROTTLE ACTUATOR PLATE FASTENING SCREW -
3113-26996 LOCKWASHER
THROTTLE ACTUATOR PLATE FASTENING SCREWLOCKWASHER
THROTTLE ACTUATOR PLATE FASTENING SCREW -
3223-48674 SPACER, THROTTLE ACTUATOR PLATE SCREWSPACER, THROTTLE ACTUATOR PLATE SCREW
-
3358454 CAM, THROTTLE ACTUATOR PLATECAM, THROTTLE ACTUATOR PLATE
-
3412-46246 WASHER, ADAPTOR - DISTRIBUTOR HOUSINGWASHER, ADAPTOR - DISTRIBUTOR HOUSING
-
3566165A2 ADAPTOR ASSEMBLY, DISTRIBUTORADAPTOR ASSEMBLY, DISTRIBUTOR
-
3622-25094 FITTING, GREASE - DISTRIBUTOR ADAPTORFITTING, GREASE - DISTRIBUTOR ADAPTOR
-
3710-73657 SCREW
DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")SCREW
DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2") -
3812-20084 WASHER, DISTRIBUTOR HOUSING SCREWWASHER, DISTRIBUTOR HOUSING SCREW
-
4084-93388A1 WIRE
GROUND - DISTRIBUTOR ADAPTOR TO FRONT SUPPORT BRACKETWIRE
GROUND - DISTRIBUTOR ADAPTOR TO FRONT SUPPORT BRACKET -
4155805 BRAKCET, STOPBRAKCET, STOP
-
4210-28636 SCREW
DISTRIBUTOR ADAPTOR TO STOP BRACKET (3/4")SCREW
DISTRIBUTOR ADAPTOR TO STOP BRACKET (3/4") -
4312-35462 WASHER, STOP BRACKET FASTENING SCREWWASHER, STOP BRACKET FASTENING SCREW
-
4410-64022 SCREW, STOP BRACKET ADJUSTING (2 1/8")SCREW, STOP BRACKET ADJUSTING (2 1/8")
-
4511-64015 NUT, STOP BRACKET ADJUSTING SCREWNUT, STOP BRACKET ADJUSTING SCREW
-
4652023 CAP, NYLON - STOP BRACKET ADJUSTING SCREWCAP, NYLON - STOP BRACKET ADJUSTING SCREW
-
4712-27939 WASHER, DISTRIBUTOR HOUSINGWASHER, DISTRIBUTOR HOUSING
-
4814-27960 TAB WASHER, ADAPTOR CAP FASTENINGTAB WASHER, ADAPTOR CAP FASTENING
-
4913-27959 WASHER
WAVE - DISTRIBUTOR BALL BEARING TENSIONWASHER
WAVE - DISTRIBUTOR BALL BEARING TENSION -
5054567 CAP, DISTRIBUTOR HOUSINGCAP, DISTRIBUTOR HOUSING
-
5123-47250 SPACER, DRIVE PULLEYSPACER, DRIVE PULLEY
-
5229906A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
5317-29908 PIN, ROLL - FLANGE LOCATINGPIN, ROLL - FLANGE LOCATING
-
5429907 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
5528-29910 KEY, DISTRIBUTOR DRIVERKEY, DISTRIBUTOR DRIVER
-
5610-68554 SCREW, PULLEY CLAMPINGSCREW, PULLEY CLAMPING
-
5720140 BELT, TIMINGBELT, TIMING
