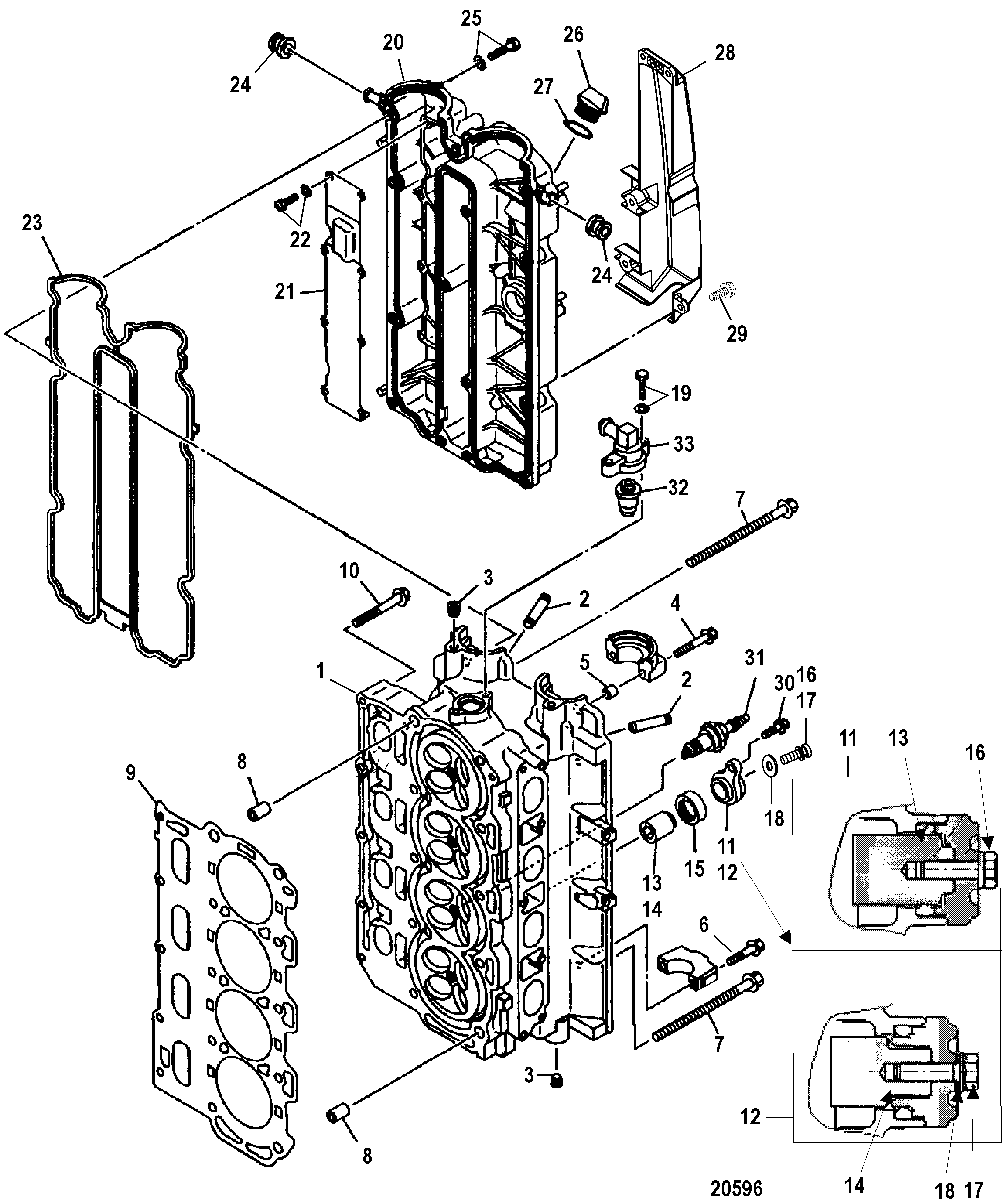

Cylinder Head для Mercury - 90 EFI (4-STROKE) 1B172291 THRU 1B366822

  • №
    Артикул
    Название
  • 1
    881310T04 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 2
    17-804110 PIN, Guide
    PIN, Guide
  • 3
    19-804111 PLUG
    PLUG
  • 4
    10-804112 BOLT, (M7 x 48)
    BOLT, (M7 x 48)
  • 5
    17-804113 PIN, Dowel
    PIN, Dowel
  • 6
    10-804114001 BOLT AND WASHER
    BOLT AND WASHER
  • 7
    10-881311 BOLT, (M10 x 145)
    BOLT, (M10 x 145)
  • 8
    23-8M0070515 COLLAR
    COLLAR
  • 9
    27-8041151 GASKET
    GASKET
  • 10
    10-881312 BOLT, (M8 x 55)
    BOLT, (M8 x 55)
  • 11
    887847A01 COVER
    (Use with Design I Anode)
    COVER
    (Use with Design I Anode)
  • 12
    97-804085A01 COVER/ANODE KIT
    (Use with Design II Anode)
    COVER/ANODE KIT
    (Use with Design II Anode)
  • 13
    887847A01 ANODE
    (Design I)
    ANODE
    (Design I)
  • 14
    97-804085A01 COVER/ANODE KIT (Included With Reference #12)
    (Design II)
    COVER/ANODE KIT (Included With Reference #12)
    (Design II)
  • 15
    25-804086 GROMMET (Included With Reference #12)
    GROMMET (Included With Reference #12)
  • 16
    10-8524741 BOLT, (M6 x 20)
    (Use with Design I Anode)
    BOLT, (M6 x 20)
    (Use with Design I Anode)
  • 17
    10-84830M BOLT (Included With Reference #12)
    (Use with Design II Anode)
    BOLT (Included With Reference #12)
    (Use with Design II Anode)
  • 18
    27-95610 GASKET (Included With Reference #12)
    (Use with Design II Anode)
    GASKET (Included With Reference #12)
    (Use with Design II Anode)
  • 19
    10-8248326 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 20
    881313T02 COVER ASSEMBLY, Cylinder Head
    COVER ASSEMBLY, Cylinder Head
  • 21
    804119 COVER, Breather
    COVER, Breather
  • 22
    10-804120 SCREW, (M4 x 8)
    SCREW, (M4 x 8)
  • 23
    27-804123001 GASKET
    GASKET
  • 24
    25-855690 GROMMET
    GROMMET
  • 25
    10-858530 BOLT, (M6 x 30)
    BOLT, (M6 x 30)
  • 26
    859578A1 PLUG ASSEMBLY, Oil
    PLUG ASSEMBLY, Oil
  • 27
    25-90196 O-RING, (.921 x .139)
    O-RING, (.921 x .139)
  • 28
    858752001 COVER
    COVER
  • 29
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 30
    10-881431 BOLT, (M8 x 40)
    BOLT, (M8 x 40)
  • 31
    33-859495Q SPARK PLUG, (NGK-LFR5A-11)
    SPARK PLUG, (NGK-LFR5A-11)
  • 32
    8556761 THERMOSTAT, 60A°C (140A°F)
    (75/80/90)
    THERMOSTAT, 60A°C (140A°F)
    (75/80/90)
  • 32
    855676004 THERMOSTAT
    (100)
    THERMOSTAT
    (100)
  • 33
    8041271 THERMOSTAT COVER
    THERMOSTAT COVER
  • -
    27-858732A03 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    8M0094898 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    881310T07 CYLINDER HEAD ASSEMBLY
    (75/80/90)
    CYLINDER HEAD ASSEMBLY
    (75/80/90)
  • -
    881310T10 CYLINDER HEAD ASSEMBLY
    (100)
    CYLINDER HEAD ASSEMBLY
    (100)
