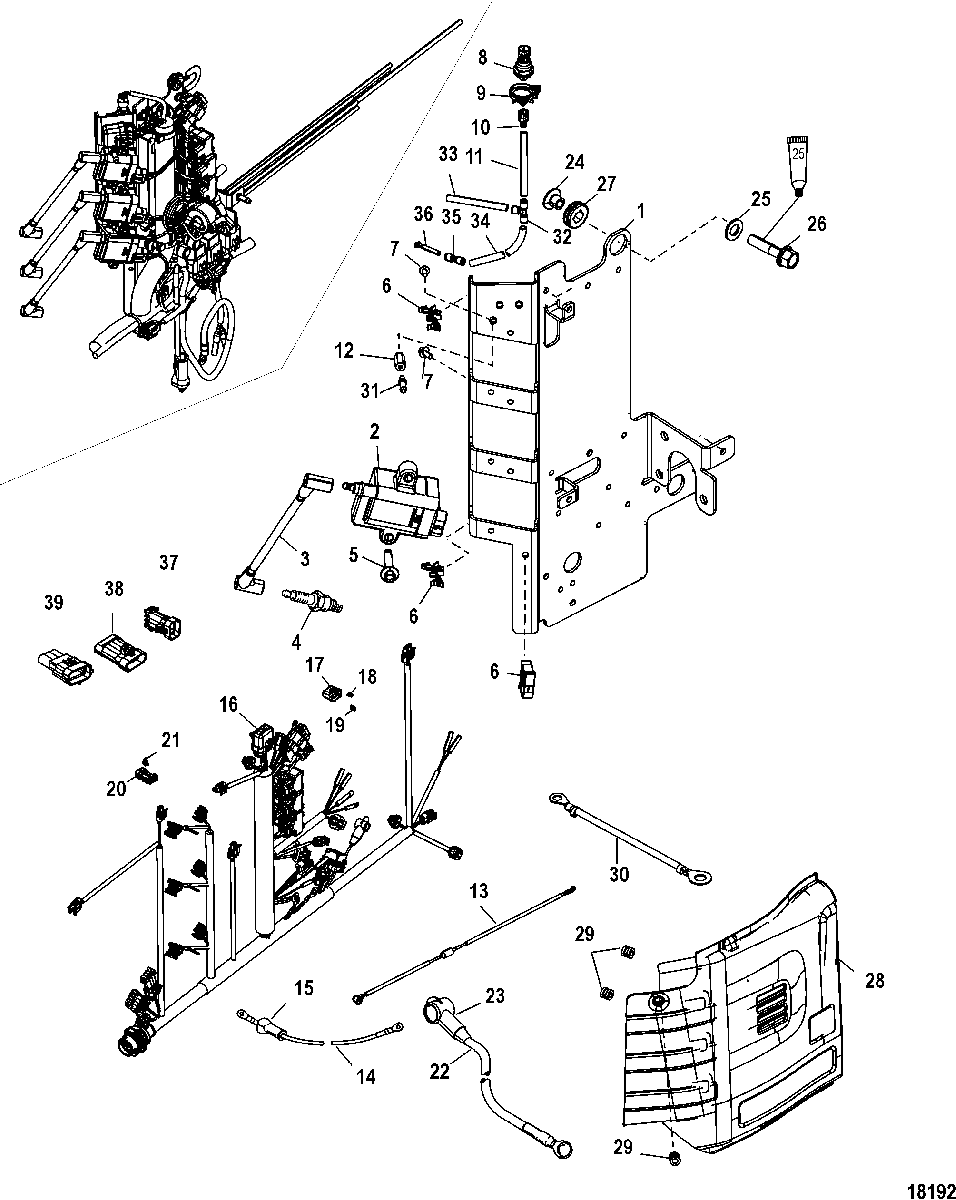

Electrical Components для Mercury - 90 DFI (3 CYL.)(1.5L) 1B227000 THRU 1B417701

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
    NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
  • 1
    880190T03 PLATE, Electrical
    PLATE, Electrical
  • 2
    300-8M0077471 COIL, Ignition
    COIL, Ignition
  • 3
    84-884442T03 LEAD, Hi Tension
    LEAD, Hi Tension
  • 4
    33-892567Q SPARK PLUG, NGK#IZFR5J
    SPARK PLUG, NGK#IZFR5J
  • 5
    10-82129130 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 6
    828791 CLIP
    CLIP
  • 7
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 8
    881879A7 SENSOR KIT, (0-50 PSI)
    SENSOR KIT, (0-50 PSI)
  • 9
    54-883066 CLIP, (.865)
    CLIP, (.865)
  • 10
    22-892403 FITTING
    FITTING
  • 11
    32-85978571 TUBING, (52.00 Inches Bulk) (Cut to 6 Inches)
    TUBING, (52.00 Inches Bulk) (Cut to 6 Inches)
  • 12
    8215832 PIN, Special
    PIN, Special
  • 13
    84-878231A03 HARNESS ASSEMBLY, Fuse - 100 Ampere
    HARNESS ASSEMBLY, Fuse - 100 Ampere
  • 14
    84-882829A03 HARNESS ASSEMBLY, Starter
    HARNESS ASSEMBLY, Starter
  • 15
    85-830233 BOOT, Insulator - Red
    BOOT, Insulator - Red
  • 16
    84-896264T01 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • 17
    858754 COVER, Fuse
    COVER, Fuse
  • 18
    88-832969T05 FUSE, Mini - Tan - 5 Ampere
    FUSE, Mini - Tan - 5 Ampere
  • 19
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 20
    877613A1 CONNECTOR ASSEMBLY, 8 Pin
    CONNECTOR ASSEMBLY, 8 Pin
  • 21
    54-879962 CLIP
    CLIP
  • 22
    84-88439A25 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 23
    85-8500671 BOOT, Insulator - Red
    BOOT, Insulator - Red
  • 24
    23-8502341 BUSHING
    BUSHING
  • 25
    12-4002318 WASHER
    WASHER
  • 26
    10-82446035 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 27
    25-833155 GROMMET
    GROMMET
  • 28
    880192T01 COVER
    COVER
  • 29
    25-821555001 GROMMET
    GROMMET
  • 30
    84-856583A07 CABLE ASSEMBLY, (12.00 Inches) Black
    CABLE ASSEMBLY, (12.00 Inches) Black
  • 31
    889992 SPACER
    SPACER
  • 32
    22-875207 TEE, Fitting
    TEE, Fitting
  • 33
    32-85978571 TUBING, (52.00 Inches Bulk) (Cut to 1.50 Inches)
    TUBING, (52.00 Inches Bulk) (Cut to 1.50 Inches)
  • 34
    32-85978571 TUBING, (52.00 Inches Bulk) (Cut to 52 Inches)
    TUBING, (52.00 Inches Bulk) (Cut to 52 Inches)
  • 35
    22-859747 COUPLER
    COUPLER
  • 36
    22-859732 PLUG
    PLUG
  • 37
    877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 Pin
    CONNECTOR ASSEMBLY, Weather Cap 6 Pin
  • 38
    830796A04 CONNECTOR ASSEMBLY, Weather Cap - Male
    CONNECTOR ASSEMBLY, Weather Cap - Male
  • 39
    822447T01 CAP ASSEMBLY, Connector - 3 Pin Male
    CAP ASSEMBLY, Connector - 3 Pin Male
