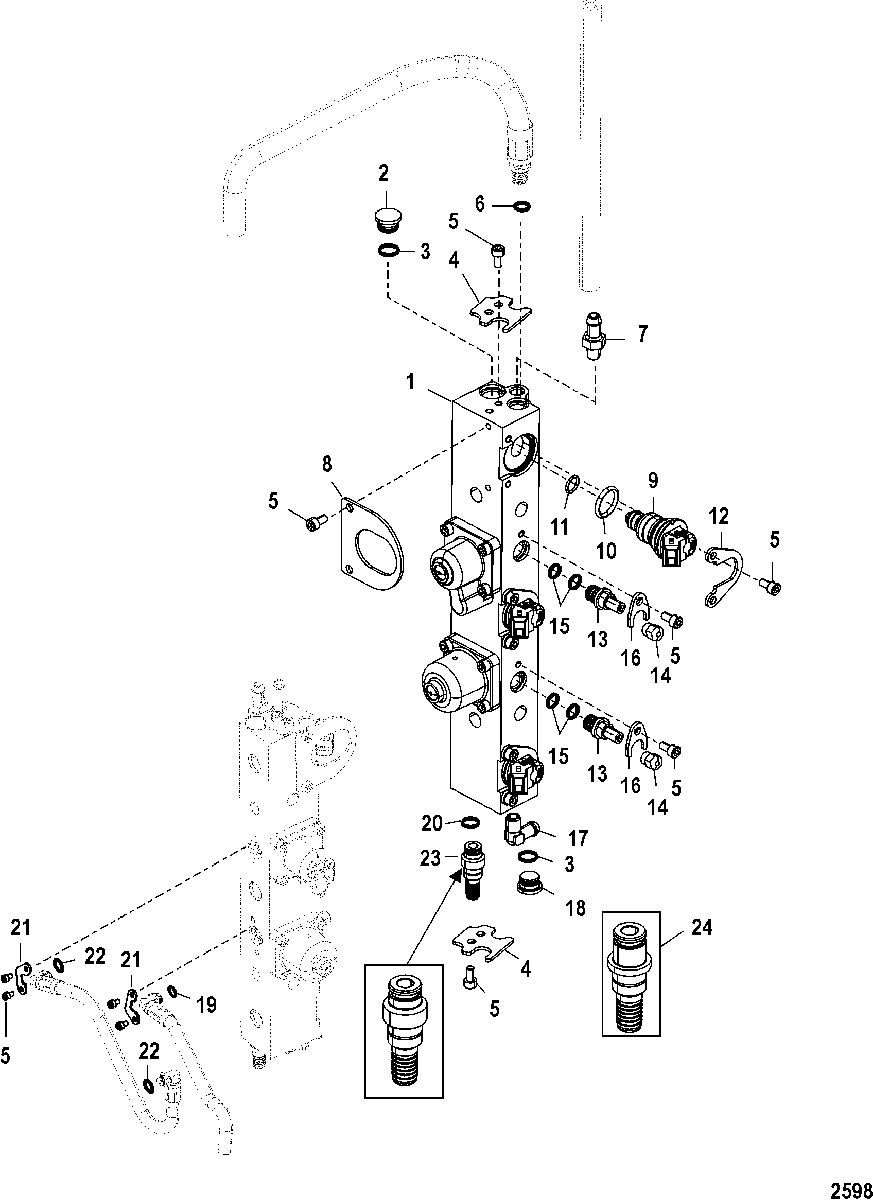

Fuel Rail для Mercury - 90 DFI (3 CYL.)(1.5L) 0T801000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    8M0135400 FUEL RAIL ASSEMBLY
    FUEL RAIL ASSEMBLY
  • 2
    19-804834 PLUG
    PLUG
  • 3
    804532 O-RING KIT
    O-RING KIT
  • 4
    54-804830 CLAMP
    CLAMP
  • 5
    10-8M0041100 SCREW PACKAGE, (M5 x 8) (2 Per)
    (M5 x 8)
    SCREW PACKAGE, (M5 x 8) (2 Per)
    (M5 x 8)
  • 5
    10-8M0041100 SCREW PACKAGE, (2 Per)(M5 x 10)
    (M5 x 10)
    SCREW PACKAGE, (2 Per)(M5 x 10)
    (M5 x 10)
  • 6
    25-804840 O-RING KIT
    O-RING KIT
  • 7
    22-291112 FITTING
    FITTING
  • 8
    891820 BRACKET
    BRACKET
  • 9
    804528 INJECTOR
    INJECTOR
  • 10
    25-804530 O-RING KIT
    O-RING KIT
  • 11
    25-804529 O-RING KIT
    O-RING KIT
  • 12
    804522 CLAMP
    CLAMP
  • 13
    8M0047053 VALVE ASSEMBLY, (.375 Inch Diameter), SCHRADER
    VALVE ASSEMBLY, (.375 Inch Diameter), SCHRADER
  • 14
    19-8M0046566 CAP, Shrader Valve - Brass
    CAP, Shrader Valve - Brass
  • 15
    25-804840 O-RING KIT
    O-RING KIT
  • 16
    8M0041097 CLAMP
    CLAMP
  • 17
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 18
    19-804835 PLUG
    PLUG
  • 19
    804532 O-RING KIT (16 per kit)
    O-RING KIT (16 per kit)
  • 20
    25-804536 O-RING
    O-RING
  • 21
    54-804832 CLAMP
    CLAMP
  • 22
    25-804840 O-RING KIT
    O-RING KIT
  • 23
    22-804836002 FITTING
    (Flange thickness is 8.65MM)
    FITTING
    (Flange thickness is 8.65MM)
  • 24
    22-804836001 FITTING
    (Flange thickness is 2.65MM)
    FITTING
    (Flange thickness is 2.65MM)
