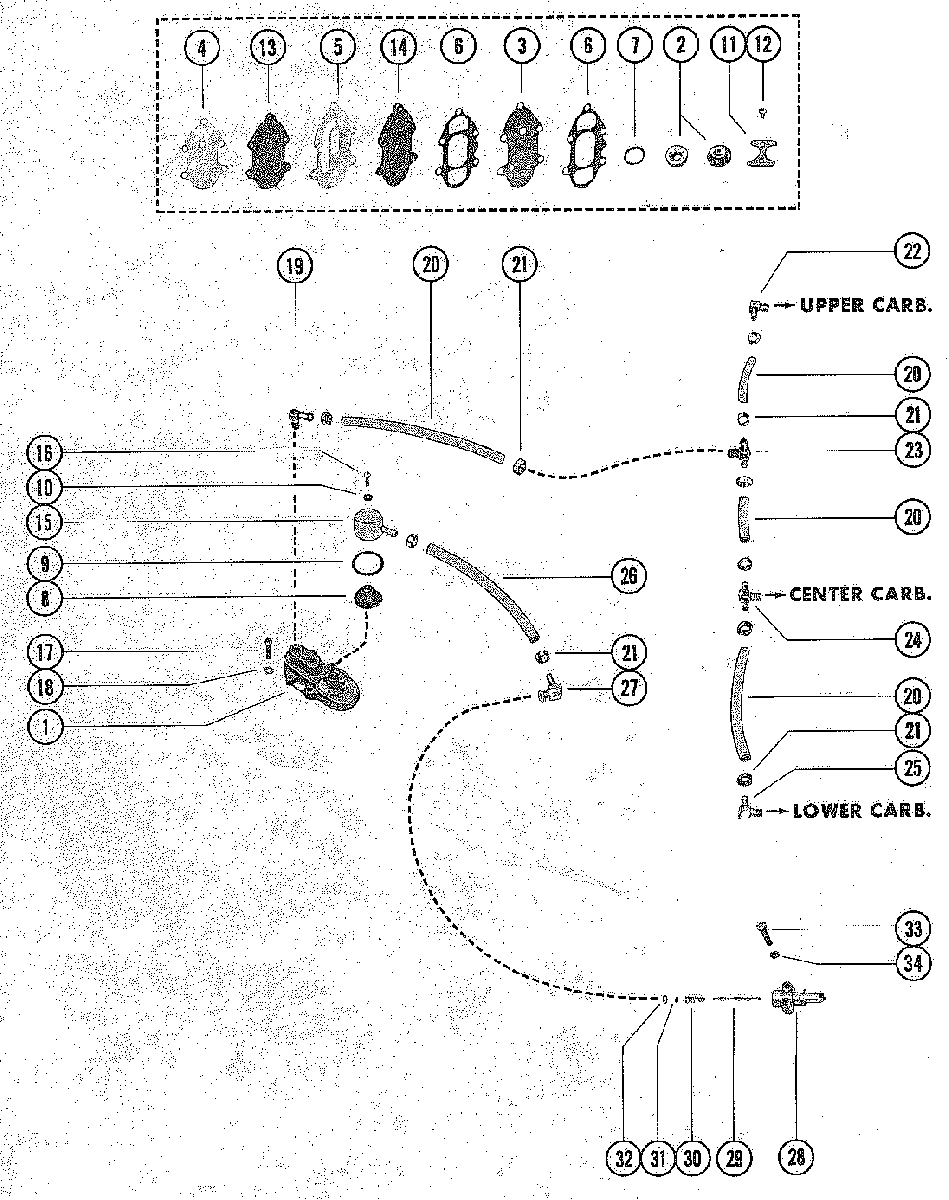

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 90 (6 CYL.) 8060545 THRU 8060694
-
№АртикулНазвание
-
113527A1 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-8M0084277 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
389031A3 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
490-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
590-8M0143356 GASKET, PULSE CHAMBERGASKET, PULSE CHAMBER
-
690-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
790-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
835-59072 SCREEN, FUEL INLETSCREEN, FUEL INLET
-
990-8M0143356 "O" RING, FUEL INLET COVER"O" RING, FUEL INLET COVER
-
1090-8M0143356 GASKET, COVER ATTACHING SCREWGASKET, COVER ATTACHING SCREW
-
1123004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
1210-43725 SCREW, RETAINER ATTACHINGSCREW, RETAINER ATTACHING
-
1386295 BASE, FUEL PUMPBASE, FUEL PUMP
-
14879901 CHAMBER, PULSE - FUEL PUMPCHAMBER, PULSE - FUEL PUMP
-
1535-91078A1 COVER, FUEL INLETCOVER, FUEL INLET
-
1610-37370 SCREW, FUEL FILTER COVER ATTACHING (5/8")SCREW, FUEL FILTER COVER ATTACHING (5/8")
-
1710-73013 SCREW, FUEL PUMP ATTACHING (1 1/2")SCREW, FUEL PUMP ATTACHING (1 1/2")
-
1813-26996 LOCKWASHER, FUL PUMP ATTACHING SCREWLOCKWASHER, FUL PUMP ATTACHING SCREW
-
1922-19688 FITTING, FUEL OUTLETFITTING, FUEL OUTLET
-
2032-8M0108355 FUEL LINE
FUEL PUMP TO CARBURETOR (6 1/4" - 2 3/4")FUEL LINE
FUEL PUMP TO CARBURETOR (6 1/4" - 2 3/4") -
2154-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
2222-19688 FITTING, ELBOW - UPPER CARBURETORFITTING, ELBOW - UPPER CARBURETOR
-
2322-73318 TEE, FUEL LINETEE, FUEL LINE
-
2422-64706001 FITTING, TEE - CENTER CARBURETORFITTING, TEE - CENTER CARBURETOR
-
2522-19688 FITTING, ELBOW - LOWER CARBURETORFITTING, ELBOW - LOWER CARBURETOR
-
2632-8M0108355 FUEL LINE, ADAPTOR TO FUEL PUMP (16")FUEL LINE, ADAPTOR TO FUEL PUMP (16")
-
2722-63981 ELBOW, FUEL LINE TO ADAPTORELBOW, FUEL LINE TO ADAPTOR
-
2822833 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
2923069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
3024-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
3125-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
3230188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
3310-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
-
3411-36069 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
-27-85653A87 GASKET SETGASKET SET
