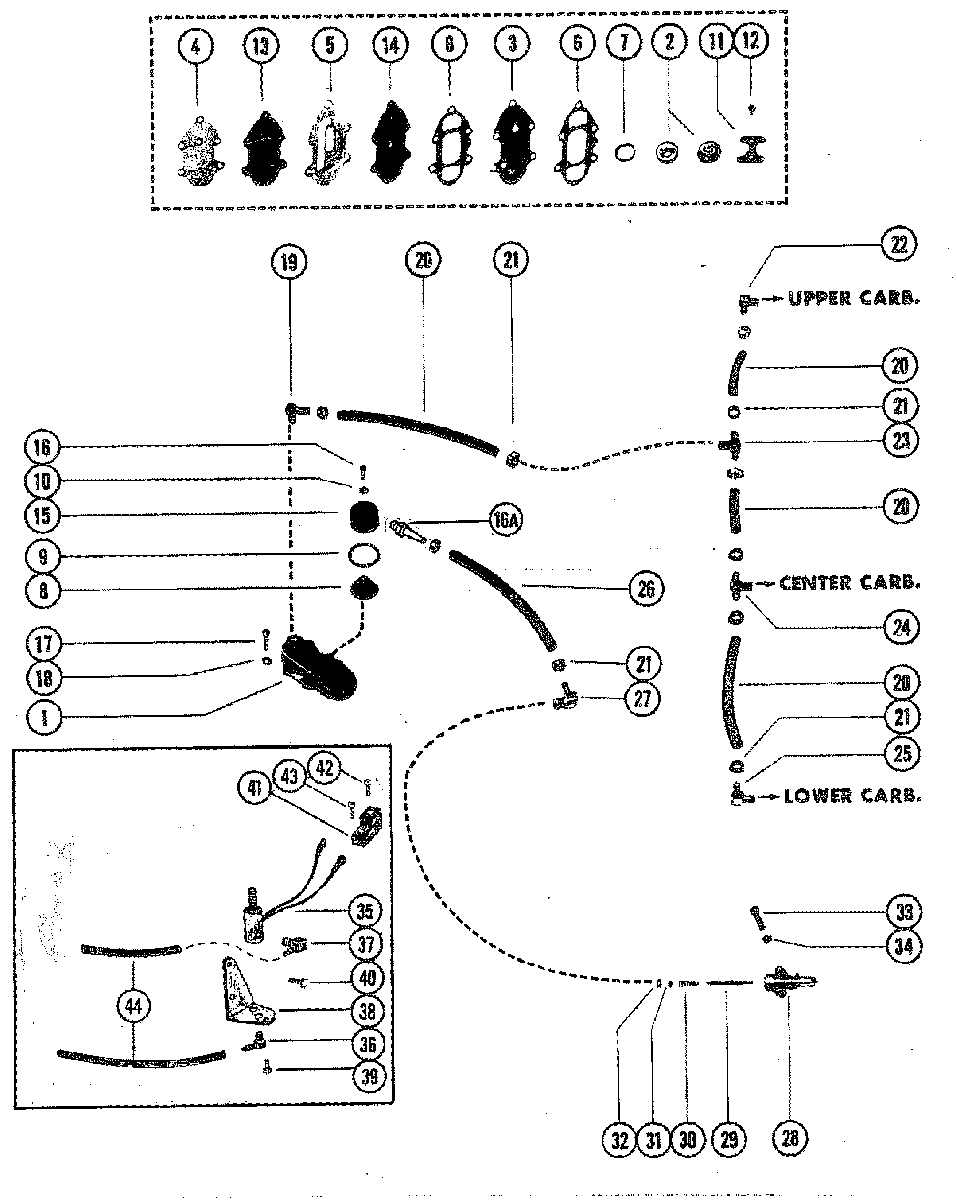

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 90 (6 CYL.) 7147088 THRU 7208847

  • №
    Артикул
    Название
  • 1
    13527A1 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-8M0084277 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    89031A3 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
  • 4
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 5
    90-8M0143356 GASKET, PULSE CHAMBER
    GASKET, PULSE CHAMBER
  • 6
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 7
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 8
    35-59072 SCREEN, FUEL INLET
    SCREEN, FUEL INLET
  • 9
    25-35480 "O" RING, FUEL INLET COVER
    "O" RING, FUEL INLET COVER
  • 10
    25-38933 GASKET, COVER SCREW
    GASKET, COVER SCREW
  • 11
    23004 RETAINER, CHACK VALVE
    RETAINER, CHACK VALVE
  • 12
    10-43725 SCREW, RETAINER
    SCREW, RETAINER
  • 13
    86295 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 14
    879901 PULSE CHAMBER, FUEL PUMP
    PULSE CHAMBER, FUEL PUMP
  • 15
    35-91078A1 COVER, FUEL INLET
    COVER, FUEL INLET
  • 16
    10-89766 SCREW, FUEL FILTER COVER (5/8")
    SCREW, FUEL FILTER COVER (5/8")
  • 16A
    22-64705 FITTING, INLET COVER
    FITTING, INLET COVER
  • 17
    10-73013 SCREW, FUELD PUMP (1-1/2")
    SCREW, FUELD PUMP (1-1/2")
  • 18
    13-26996 LOCKWASHER, FUEL PUMP SCREW
    LOCKWASHER, FUEL PUMP SCREW
  • 19
    22-19688 FITTING, FUEL OUTLET
    FITTING, FUEL OUTLET
  • 20
    32-8M0108355 FUEL LINE, FUEL PUMP TO CARBURETOR
    FUEL LINE, FUEL PUMP TO CARBURETOR
  • 21
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 22
    22-19688 FITTING, ELBOW - WUPPER CARBURETOR
    FITTING, ELBOW - WUPPER CARBURETOR
  • 23
    22-73318 TEE, FUEL LINE
    TEE, FUEL LINE
  • 24
    22-64706001 FITTING, TEE - CENTER CARBURETOR
    FITTING, TEE - CENTER CARBURETOR
  • 25
    22-19688 FITTING, ELBOW - LOWER CARBURETOR
    FITTING, ELBOW - LOWER CARBURETOR
  • 26
    32-8M0108355 FUEL LINE, ADAPTOR TO FUEL PUMP (11")
    FUEL LINE, ADAPTOR TO FUEL PUMP (11")
  • 27
    22-63981 ELBOW, FUEL LINE TO ADAPTOR
    ELBOW, FUEL LINE TO ADAPTOR
  • 28
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    IDENTIFIED BY 73419 CASTING ON REF. #28
    ADAPTOR, CHECK UNIT (FUEL LINE)
    IDENTIFIED BY 73419 CASTING ON REF. #28
  • 29
    23069 STEM, CHECK UNIT ADAPTOR
    IDENTIFIED BY 73419 CASTING ON REF. #28
    STEM, CHECK UNIT ADAPTOR
    IDENTIFIED BY 73419 CASTING ON REF. #28
  • 30
    24-23067T SPRING, ADAPTOR STEM
    IDENTIFIED BY 73419 CASTING ON REF. #28
    SPRING, ADAPTOR STEM
    IDENTIFIED BY 73419 CASTING ON REF. #28
  • 28
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    IDENTIFIED BY 30186 CASTING ON REF. #28
    ADAPTOR, CHECK UNIT (FUEL LINE)
    IDENTIFIED BY 30186 CASTING ON REF. #28
  • 29
    30185Q3 STEM, CHECK UNIT ADAPTORS
    IDENTIFIED BY 30186 CASTING ON REF. #28
    STEM, CHECK UNIT ADAPTORS
    IDENTIFIED BY 30186 CASTING ON REF. #28
  • 30
    24-30189 SPRING, ADAPTOR STEM
    IDENTIFIED BY 30186 CASTING ON REF. #28
    SPRING, ADAPTOR STEM
    IDENTIFIED BY 30186 CASTING ON REF. #28
  • 31
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 32
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 33
    10-36154 SCREW, ADAPTOR TO BOTTOM COWL (1-3/8")
    SCREW, ADAPTOR TO BOTTOM COWL (1-3/8")
  • 34
    11-36069 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • 35
    42859A2 VALVE, ENRICHER
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    VALVE, ENRICHER
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 36
    22-90275 CONNECTOR, ENRICHER VALVE (BOTTOM)
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    CONNECTOR, ENRICHER VALVE (BOTTOM)
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 37
    22-73817 CONNECTOR, ENRICHER VALVE (SIDE)
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    CONNECTOR, ENRICHER VALVE (SIDE)
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 38
    90345 BRACKET, ENRICHER VALVE
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    BRACKET, ENRICHER VALVE
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 39
    10-89075 SCREW, VALVE TO BRACKET
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    SCREW, VALVE TO BRACKET
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 40
    10-73286 SCREW, BRACKET TO REED BLOCK HOUSING (1/2")
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    SCREW, BRACKET TO REED BLOCK HOUSING (1/2")
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 41
    86-45915 TERMINAL BLOCK, REED BLOCK HOUSING
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    TERMINAL BLOCK, REED BLOCK HOUSING
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 42
    10-69079 SCREW, TERMINAL BLOCK
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    SCREW, TERMINAL BLOCK
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 43
    10-20411 SCREW, WIRE TO TERMINAL BLOCK
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    SCREW, WIRE TO TERMINAL BLOCK
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 44
    32-9912688 FUEL LINE, ENRICHER VALVE
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    FUEL LINE, ENRICHER VALVE
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 45
    22-90275 CONNECTOR, TOP CARBURETOR (90 DEG.)
    CONNECTOR, TOP CARBURETOR (90 DEG.)
  • -
    27-85653A87 GASKET SET
    GASKET SET
