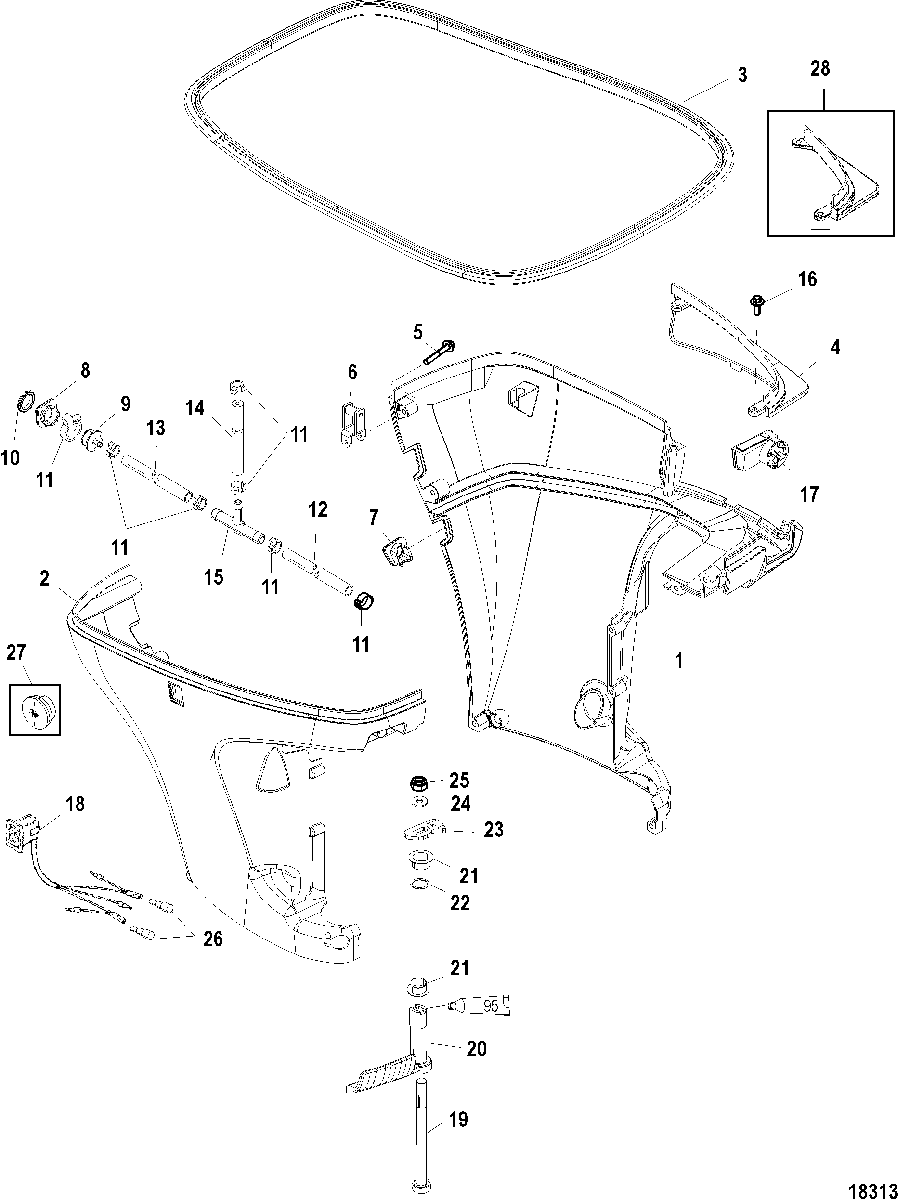

Bottom Cowl для Mercury - 90 (4-STROKE) 0G960500 THRU 0T800999

№

Артикул

Название
1

100-878587A1 BOTTOM COWL ASSEMBLY (Port)

BOTTOM COWL ASSEMBLY (Port)
2

100-8M0113913 BOTTOM COWL ASSEMBLY (Starboard)

BOTTOM COWL ASSEMBLY (Starboard)
2

100-858743A3 BOTTOM COWL (Starboard)(75 Bodensee)

BOTTOM COWL (Starboard)(75 Bodensee)
3

8M0109217 SEAL, Cowl (41.00 Inches)

SEAL, Cowl (41.00 Inches)
4

878547T INSERT
(Design II)

INSERT
(Design II)
5

10-82130040 SCREW, (M6 x 40)

SCREW, (M6 x 40)
6

831209 RETAINER

RETAINER
7

858742 BOOT, Idle Exhaust

BOOT, Idle Exhaust
8

8M0039078 GROMMET

GROMMET
9

22-827948 FITTING

FITTING
10

12-855576 WASHER

WASHER
11

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)
12

32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 5 Inches)

HOSE, (57.00 Inches Bulk) (Cut to 5 Inches)
13

32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 11 Inches)

HOSE, (57.00 Inches Bulk) (Cut to 11 Inches)
14

32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 26 Inches)

TUBING, (36.00 Inches Bulk) (Cut to 26 Inches)
15

22-817518 TEE

TEE
16

10-82130020 SCREW, (M6 x 20)

SCREW, (M6 x 20)
17

25-889724 GROMMET

GROMMET
18

87-8M0042301 SWITCH ASSEMBLY

SWITCH ASSEMBLY
19

10-824868 SCREW, (M6 x 75)

SCREW, (M6 x 75)
20

889740A02 FRONT HANDLE, Black

FRONT HANDLE, Black
21

23-33589 BUSHING

BUSHING
22

25-48462 O-RING, (.614 x .070)

O-RING, (.614 x .070)
23

8219423 PAWL

PAWL
24

12-69057 WASHER, (.281 x .734 x .063)

WASHER, (.281 x .734 x .063)
25

11-401366 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel
26

13541 PLUG, Male

PLUG, Male
27

19-824928001 PLUG, Rubber
(75 Bodensee)

PLUG, Rubber
(75 Bodensee)
28

859184T COVER
(Design I)

COVER
(Design I)
