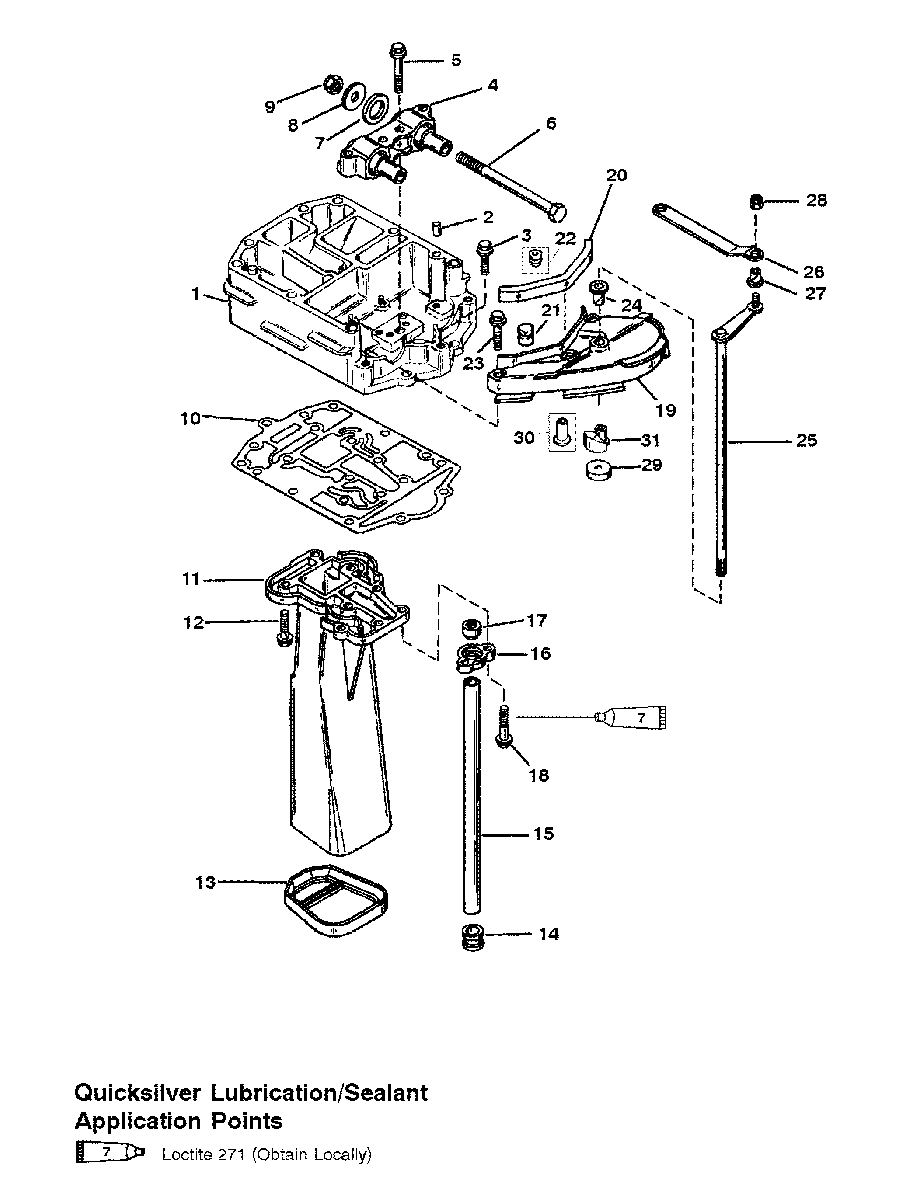

EXHAUST PLATE для Mercury - 90 (3 CYL.) 9793577 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    42954A5 EXHAUST PLATE ASSEMBLY
    EXHAUST PLATE ASSEMBLY
  • 2
    17-23784 DOWEL PIN
    DOWEL PIN
  • 3
    10-40011151 SCREW (M8 X 35)
    SCREW (M8 X 35)
  • 3
    10-40011158 SCREW (M8 X 70)
    SCREW (M8 X 70)
  • 4
    881900T03 MOUNT
    (NON OIL INJECTION)(LL)
    MOUNT
    (NON OIL INJECTION)(LL)
  • 4
    881900T03 MOUNT
    (OIL INJECTION) (JET 65)
    MOUNT
    (OIL INJECTION) (JET 65)
  • 5
    10-4010750 SCREW (M8 X 50)
    SCREW (M8 X 50)
  • 6
    10-898487 SCREW (M12 X 175)
    SCREW (M12 X 175)
  • 7
    12-32834 WASHER
    WASHER
  • 8
    12-28421 WASHER
    WASHER
  • 9
    11-896963 NUT
    NUT
  • 10
    27-430086 GASKET
    GASKET
  • 11
    87917216T EXHAUST TUBE
    EXHAUST TUBE
  • 11
    42966A1 EXHAUST TUBE
    (BELGIUM)(INCLUDES RESTRICTOR PLATE)
    EXHAUST TUBE
    (BELGIUM)(INCLUDES RESTRICTOR PLATE)
  • 12
    10-40011151 SCREW (M8 X 35)
    SCREW (M8 X 35)
  • 13
    8M0039075 SEAL-EXHAUST TUBE
    SEAL-EXHAUST TUBE
  • 14
    25-89417004 GROMMET
    GROMMET
  • 15
    32-8M0042791 WATER TUBE (13-1/4 IN.)
    WATER TUBE (13-1/4 IN.)
  • 15
    32-8M0042793 WATER TUBE (15-3/4 IN.)
    WATER TUBE (15-3/4 IN.)
  • 15
    32-8M0042792 WATER TUBE (18-1/4 IN.)
    WATER TUBE (18-1/4 IN.)
  • 16
    824661 CLAMP
    CLAMP
  • 17
    814080001 SEAL (UPPER)
    SEAL (UPPER)
  • 18
    10-4010750 SCREW (M8 X 50)
    SCREW (M8 X 50)
  • 19
    42953A5 BRACKET ASSEMBLY (LOWER)
    (BLACK)
    BRACKET ASSEMBLY (LOWER)
    (BLACK)
  • 19
    42953A6 BRACKET ASSEMBLY (LOWER)
    (GRAY)
    BRACKET ASSEMBLY (LOWER)
    (GRAY)
  • 19
    42953A7 BRACKET ASSEMBLY (LOWER)
    (TRACKER-GRAPHITE GRAY)
    BRACKET ASSEMBLY (LOWER)
    (TRACKER-GRAPHITE GRAY)
  • 20
    43405 SEAL
    SEAL
  • 21
    25-12602002 GROMMET
    (POWER TRIM - S/N-0G360002 & BELOW)
    GROMMET
    (POWER TRIM - S/N-0G360002 & BELOW)
  • 21
    25-19564001 GROMMET
    (NON POWER TRIM/MANUAL TILT ASSIST)
    GROMMET
    (NON POWER TRIM/MANUAL TILT ASSIST)
  • 22
    25-19565002 GROMMET
    (POWER TRIM - S/N-0G360003 & UP)
    GROMMET
    (POWER TRIM - S/N-0G360003 & UP)
  • 23
    10-81742750 SCREW (M8 X 50)
    SCREW (M8 X 50)
  • 24
    23-48237 BUSHING
    BUSHING
  • 25
    79932A9 SHIFT SHAFT ASSEMBLY
    (UPPER - ELECTRIC) (S/N-USA-0G589999/BEL-9973099 & BELOW)
    SHIFT SHAFT ASSEMBLY
    (UPPER - ELECTRIC) (S/N-USA-0G589999/BEL-9973099 & BELOW)
  • 25
    79932A20 SHIFT SHAFT ASSEMBLY
    (UPPER - ELECTRIC) (S/N-0G590000/BEL-9973100 & UP)
    SHIFT SHAFT ASSEMBLY
    (UPPER - ELECTRIC) (S/N-0G590000/BEL-9973100 & UP)
  • 25
    79932A23 SHIFT SHAFT ASSEMBLY
    (UPPER - MANUAL)
    SHIFT SHAFT ASSEMBLY
    (UPPER - MANUAL)
  • 26
    42912A1 SHIFT LINK
    (S/N-USA-0G589999/BEL-9973099 & BELOW)
    SHIFT LINK
    (S/N-USA-0G589999/BEL-9973099 & BELOW)
  • 26
    42912A3 SHIFT LINK
    (S/N-USA-0G590000/BEL-9973100 & UP)
    SHIFT LINK
    (S/N-USA-0G590000/BEL-9973100 & UP)
  • 27
    23-48475 BUSHING
    BUSHING
  • 28
    11-401386 NUT
    NUT
  • 29
    23-813745 SPACER
    (LONG)
    SPACER
    (LONG)
  • 29
    23-11289 SPACER
    (X-LONG)(LL)
    SPACER
    (X-LONG)(LL)
  • 30
    43585 COUPLING
    (POWER TRIM/MANUAL TILT ASSIST)
    COUPLING
    (POWER TRIM/MANUAL TILT ASSIST)
  • 31
    43053 COUPLING
    (NON POWER TRIM)
    COUPLING
    (NON POWER TRIM)
  • -
    27-43004A99 GASKET SET
    GASKET SET
