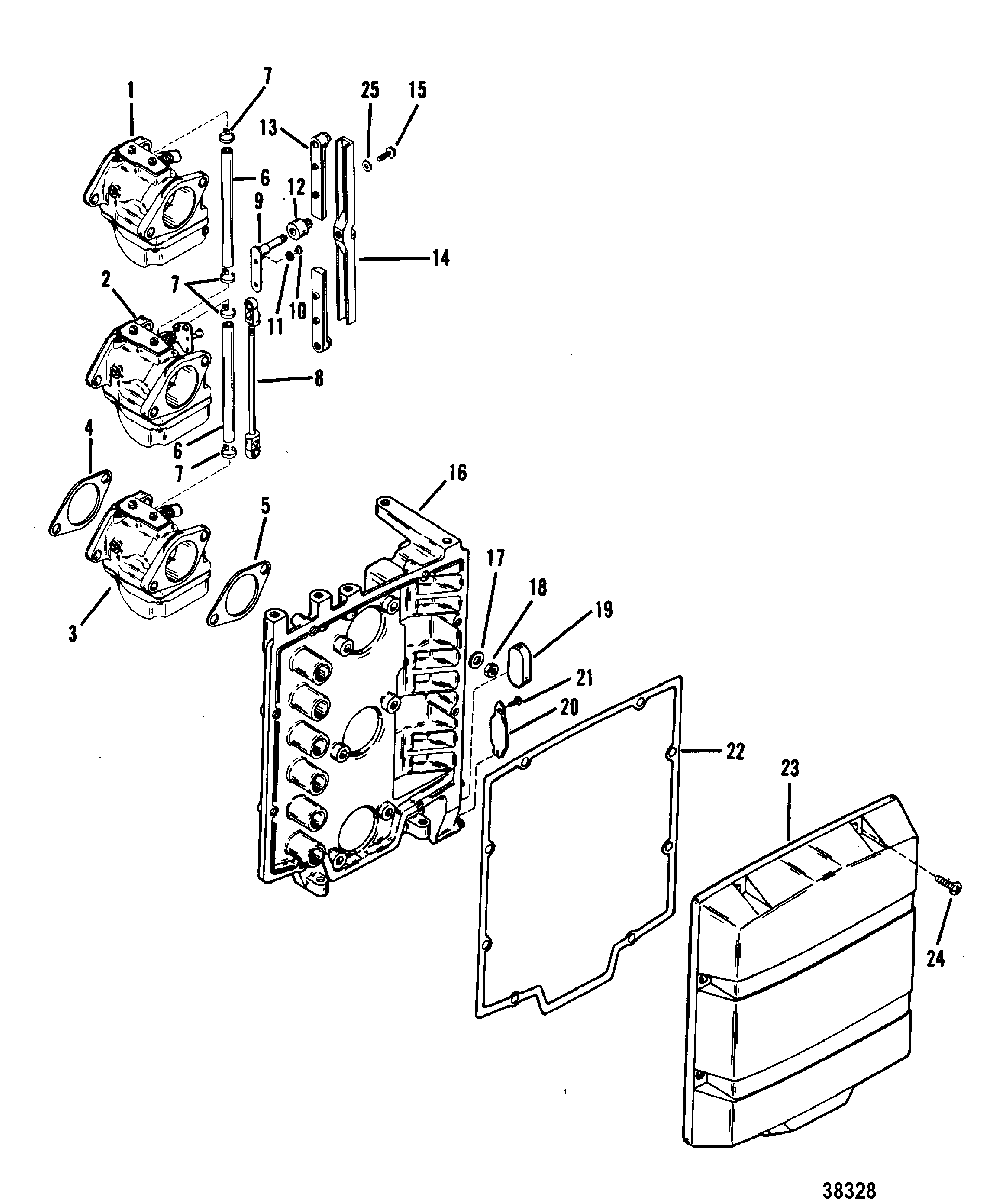

CARBURETOR AND ATTENUATOR PLATE для Mercury - 90 (3 CYL.) 9483121 THRU 9506480

  • №
    Артикул
    Название
  • 1
    3301-9012A14 CARBURETOR ASSEMBLY
    (TOP - 70)
    CARBURETOR ASSEMBLY
    (TOP - 70)
  • 1
    3301-9012A71 CARBURETOR
    (TOP - 75)
    CARBURETOR
    (TOP - 75)
  • 1
    3301-9012A5 CARBURETOR ASSEMBLY
    (TOP - 80)
    CARBURETOR ASSEMBLY
    (TOP - 80)
  • 1
    3301-9012A17 CARBURETOR ASSEMBLY
    (TOP - 90)
    CARBURETOR ASSEMBLY
    (TOP - 90)
  • 2
    3301-9012A15 CARBURETOR ASSEMBLY
    (CENTER - 70)
    CARBURETOR ASSEMBLY
    (CENTER - 70)
  • 2
    3301-9012A72 CARBURETOR ASSEMBLY
    (CENTER - 75)
    CARBURETOR ASSEMBLY
    (CENTER - 75)
  • 2
    3301-9012A6 CARBURETOR ASSEMBLY
    (CENTER - 80)
    CARBURETOR ASSEMBLY
    (CENTER - 80)
  • 2
    3301-9012A18 CARBURETOR ASSEMBLY
    (CENTER - 90)
    CARBURETOR ASSEMBLY
    (CENTER - 90)
  • 3
    3301-9012A16 CARBURETOR ASSEMBLY
    (BOTTOM - 70)
    CARBURETOR ASSEMBLY
    (BOTTOM - 70)
  • 3
    3301-9012A73 CARBURETOR ASSEMBLY
    (BOTTOM - 75)
    CARBURETOR ASSEMBLY
    (BOTTOM - 75)
  • 3
    3301-9012A7 CARBURETOR ASSEMBLY
    (BOTTOM - 80)
    CARBURETOR ASSEMBLY
    (BOTTOM - 80)
  • 3
    3301-9012A19 CARBURETOR ASSEMBLY
    (BOTTOM - 90)
    CARBURETOR ASSEMBLY
    (BOTTOM - 90)
  • 4/5
    27-151724 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 6
    32-9912878 TUBING, CARBURETOR TO CARBURETOR
    TUBING, CARBURETOR TO CARBURETOR
  • 7
    54-816311T CLAMP
    CLAMP
  • 8
    8M0084744 LINK ROD
    LINK ROD
  • 9
    11399A1 ARM ASSEMBLY
    ARM ASSEMBLY
  • 10
    10-40057103 SCREW, (M5 x 6), ARM
    SCREW, (M5 x 6), ARM
  • 11
    12-56681 WASHER, (.203 x .500 x .032), ARM SCREW
    WASHER, (.203 x .500 x .032), ARM SCREW
  • 12
    67748 ROLLER
    ROLLER
  • 13
    98886T01 LINK, ADJUSTING
    LINK, ADJUSTING
  • 14
    98887T LINK, Throttle
    LINK, Throttle
  • 15
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, LINK
    SCREW, (#10-16 x .625) Stainless Steel, LINK
  • 16
    42970A2 PLATE ASSEMBLY, SOUND ATTENUATOR
    PLATE ASSEMBLY, SOUND ATTENUATOR
  • 17
    12-4002217 WASHER, CARBURETOR STUDS
    WASHER, CARBURETOR STUDS
  • 18
    11-401388 NUT, CARBURETOR STUDS
    NUT, CARBURETOR STUDS
  • 19
    39519 CUP, RETAINER
    CUP, RETAINER
  • 20
    98889 LATCH, CONTROL CABLE
    LATCH, CONTROL CABLE
  • 21
    10-42975 DRIVE SCREW, LATCH TO PLATE
    DRIVE SCREW, LATCH TO PLATE
  • 22
    27-430001 GASKET, ATTENUATOR COVER
    GASKET, ATTENUATOR COVER
  • 23
    42969A3 COVER, ATTENUATOR
    COVER, ATTENUATOR
  • 24
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, ATTENUATOR COVER
    SCREW, (#10-16 x .625) Stainless Steel, ATTENUATOR COVER
  • 25
    12-56681 WASHER, (.203 x .500 x .032), LINK SCREW
    WASHER, (.203 x .500 x .032), LINK SCREW
  • -
    27-43004A99 GASKET SET
    GASKET SET
