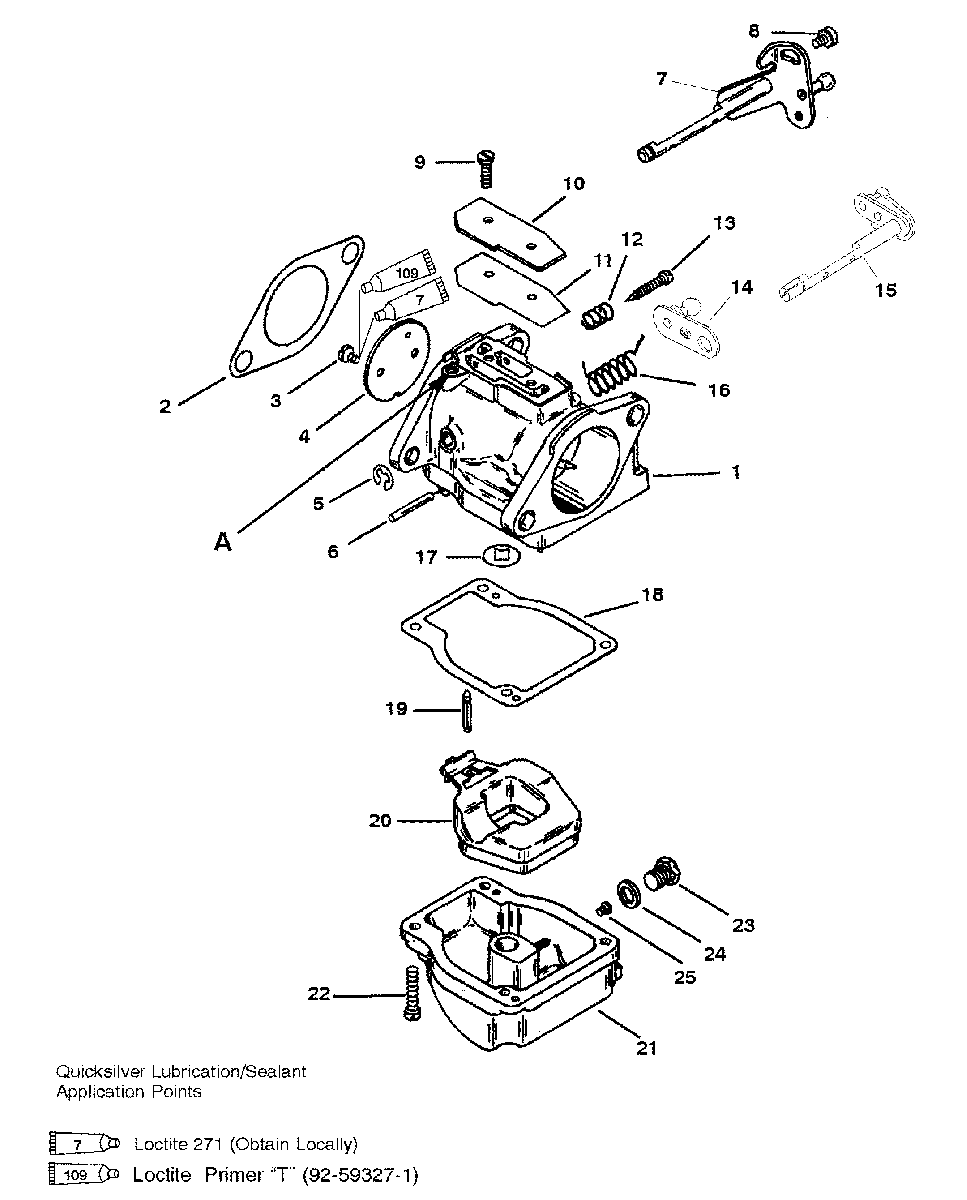

CARBURETOR (WME-59/60/61/62/75/76/77/78) для Mercury - 90 (3 CYL.) 0D283222 THRU 0G760299

  • №
    Артикул
    Название
  • 11
    90-8M0143356 GASKET-COVER PLATE
    GASKET-COVER PLATE
  • 12
    90-8M0143356 SPRING-IDLE NEEDLE
    SPRING-IDLE NEEDLE
  • 13
    90-8M0143356 IDLE NEEDLE
    IDLE NEEDLE
  • 14
    1395-8087461 THROTTLE LEVER (TOP/BOTTOM)
    THROTTLE LEVER (TOP/BOTTOM)
  • 15
    1395-823632 THROTTLE SHAFT (TOP/BOTTOM)
    THROTTLE SHAFT (TOP/BOTTOM)
  • 16
    90-8M0143356 SPRING-THROTTLE RETURN
    SPRING-THROTTLE RETURN
  • 17
    1395-808738 GASKET-NOZZLE WELL
    GASKET-NOZZLE WELL
  • 18
    90-8M0143356 GASKET-FUEL BOWL
    GASKET-FUEL BOWL
  • 19
    10-95951 INLET NEEDLE VALVE
    INLET NEEDLE VALVE
  • 20
    1395-9594 FLOAT
    FLOAT
  • 21
    1395-811695 FUEL BOWL (UPPER)
    (WME-60)
    FUEL BOWL (UPPER)
    (WME-60)
  • 21
    1395-811693 FUEL BOWL (CENTER/LOWER)
    (WME-60)
    FUEL BOWL (CENTER/LOWER)
    (WME-60)
  • 21
    1395-811693 FUEL BOWL
    (WME-59/61/62/75/76/77/78)
    FUEL BOWL
    (WME-59/61/62/75/76/77/78)
  • 22
    1395-808612 SCREW-FUEL BOWL
    SCREW-FUEL BOWL
  • 23
    1395-811694 PLUG KIT
    PLUG KIT
  • 24
    1395-802731 SEAL (CONSISTS OF 4 SEALS)
    SEAL (CONSISTS OF 4 SEALS)
  • 25
    1395-6359 MAIN FUEL JET (.052)(TOP)
    (WME-59)
    MAIN FUEL JET (.052)(TOP)
    (WME-59)
  • 25
    1399-5225 MAIN FUEL JET (.054)(CENTER/BOTTOM)
    (WME-59)
    MAIN FUEL JET (.054)(CENTER/BOTTOM)
    (WME-59)
  • 25
    1399-5225 MAIN FUEL JET (.054)
    (WME-60/61/76/77)
    MAIN FUEL JET (.054)
    (WME-60/61/76/77)
  • 25
    1399-4217 MAIN FUEL JET (.062)(TOP)
    (WME-62)
    MAIN FUEL JET (.062)(TOP)
    (WME-62)
  • 25
    1399-4216 MAIN FUEL JET (.064)(CENTER/BOTTOM)
    (WME-62)
    MAIN FUEL JET (.064)(CENTER/BOTTOM)
    (WME-62)
  • 25
    1395-7394 MAIN FUEL JET (.044)
    (BELGIUM)
    MAIN FUEL JET (.044)
    (BELGIUM)
  • 25
    1395-6359 MAIN FUEL JET (.052)(TOP)
    (WME-75)
    MAIN FUEL JET (.052)(TOP)
    (WME-75)
  • 25
    1399-5225 MAIN FUEL JET (.054)(CENTER/BOTTOM)
    (WME-75)
    MAIN FUEL JET (.054)(CENTER/BOTTOM)
    (WME-75)
  • 25
    1399-4217 MAIN FUEL JET (.062)(TOP)
    (WME-78)
    MAIN FUEL JET (.062)(TOP)
    (WME-78)
  • 25
    1399-4216 MAIN FUEL JET (.064)(CENTER/BOTTOM)
    (WME-78)
    MAIN FUEL JET (.064)(CENTER/BOTTOM)
    (WME-78)
  • -
    1395-8112231 CARB GASKET KIT
    CARB GASKET KIT
  • -
    1395-8236354 CARB REPAIR KIT
    CARB REPAIR KIT
