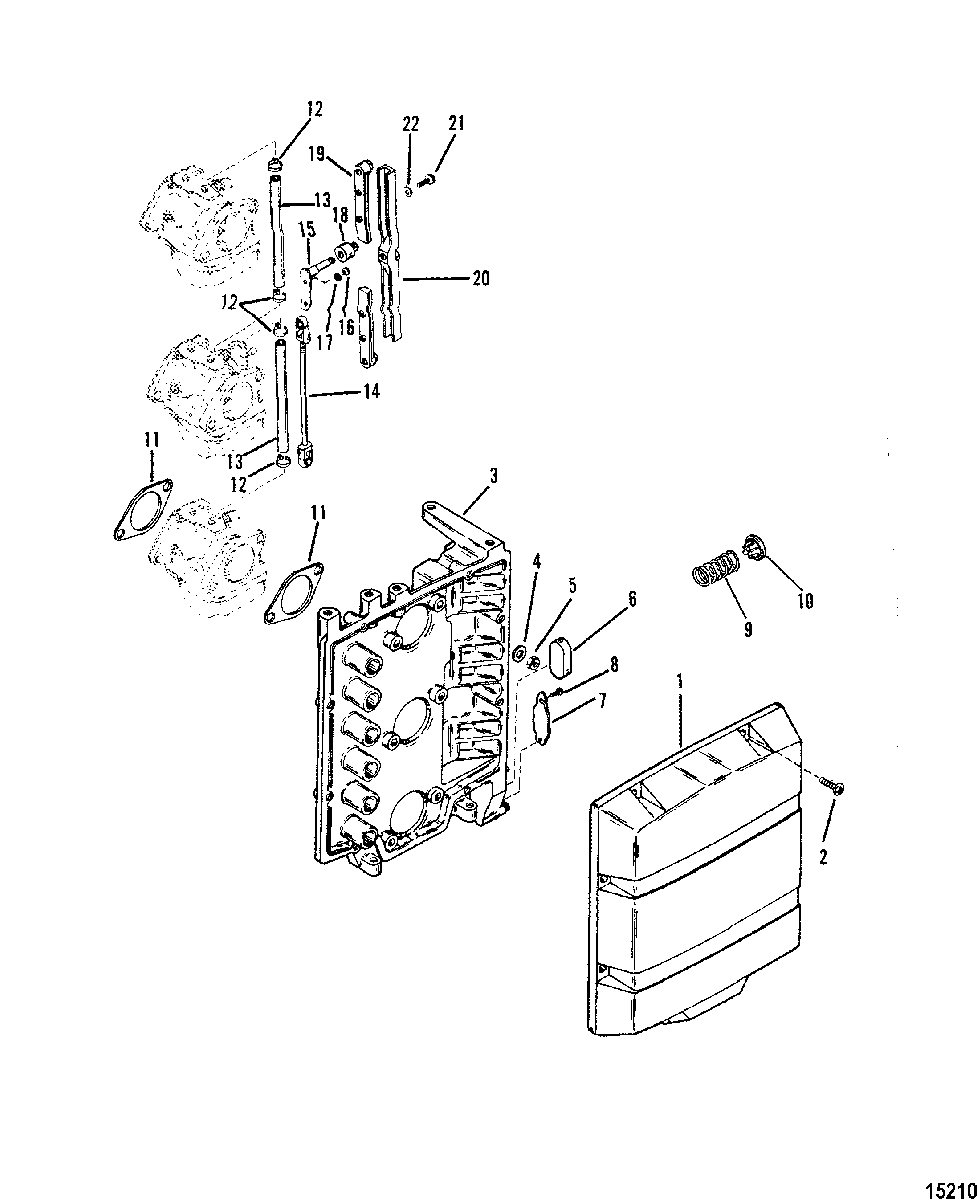

Attenuator Plate для Mercury - 90 (3 CYL.) 0C222000 THRU 0D283221

  • №
    Артикул
    Название
  • 1
    42969A3 COVER
    COVER
  • 2
    10-48409 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 3
    42970A2 ATTENUATOR PLATE
    ATTENUATOR PLATE
  • 4
    12-4002217 WASHER
    WASHER
  • 5
    11-826365 NUT, Carburetor Studs
    NUT, Carburetor Studs
  • 6
    39519 CUP
    CUP
  • 7
    98889 LATCH
    LATCH
  • 8
    10-42975 SCREW, Drive
    SCREW, Drive
  • 9
    24-44297 SPRING, Handle, Old Design
    SPRING, Handle, Old Design
  • 10
    19-32298 PLUG, Handle, Old Design
    PLUG, Handle, Old Design
  • 11
    27-151724 GASKET
    GASKET
  • 12
    54-816311T CABLE TIE, (8.00 Inch)
    (As Required)
    CABLE TIE, (8.00 Inch)
    (As Required)
  • 13
    32-9912878 HOSE, (26.00 Inches Bulk)
    HOSE, (26.00 Inches Bulk)
  • 14
    8M0084744 LINK ROD
    LINK ROD
  • 15
    11399A1 ARM ASSEMBLY
    ARM ASSEMBLY
  • 16
    10-40056103 SCREW, (M5 x 6)
    SCREW, (M5 x 6)
  • 17
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 18
    67748 ROLLER
    ROLLER
  • 19
    98886T01 LINK
    LINK
  • 20
    98887T THROTTLE LINK
    THROTTLE LINK
  • 21
    10-48409 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 22
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
