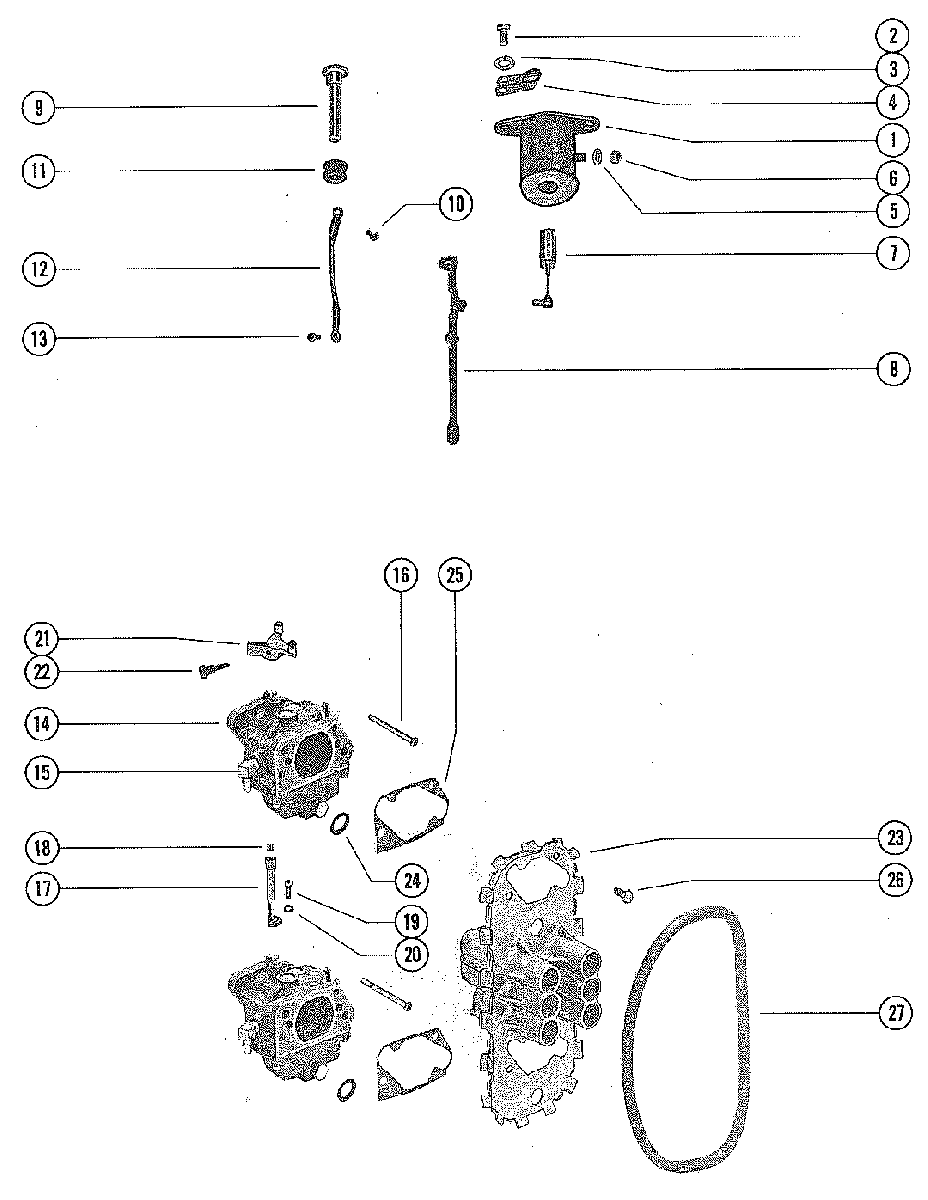

CARBURETOR LINKAGE для Mercury - 850 (4 CYL.) 8043775 THRU 8050199

  • №
    Артикул
    Название
  • 1
    54293A10 CHOKE SOLENOID ASSEMBLY
    CHOKE SOLENOID ASSEMBLY
  • 2
    10-824941 SCREW, CHOKE SOLENOID TO FRONT BRACKET (3/4")
    SCREW, CHOKE SOLENOID TO FRONT BRACKET (3/4")
  • 3
    13-26993 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 4
    54-52905 CLAMP, HARNESS - CHOKE SOLENOID SCREW
    CLAMP, HARNESS - CHOKE SOLENOID SCREW
  • 5
    13-26996 LOCKWASHER, CHOKE SOLENOID TERMINAL
    LOCKWASHER, CHOKE SOLENOID TERMINAL
  • 6
    11-68219 NUT, CHOKE SOLENOID TERMINAL
    NUT, CHOKE SOLENOID TERMINAL
  • 7
    89008A2 PLUNGER AND LINK ASSEMBLY
    PLUNGER AND LINK ASSEMBLY
  • 8
    73400 CHOKE ROD
    CHOKE ROD
  • 9
    90242A1 CHOKE KNOB ASSEMBLY
    CHOKE KNOB ASSEMBLY
  • 10
    10-77137 SCREW, WIRE TO CHOKE KNOB
    SCREW, WIRE TO CHOKE KNOB
  • 11
    25-20116 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 12
    84-74263 WIRE, CHOKE KNOB TO CHOKE ROD (BLACK)
    WIRE, CHOKE KNOB TO CHOKE ROD (BLACK)
  • 13
    10-62568 SCREW, WIRE TO CHOKE ROD
    SCREW, WIRE TO CHOKE ROD
  • 14
    1379-6071A4 CARBURETOR ASSEMBLY
    UNITED STATES 4366802 THRU 4423111
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7082022
    CARBURETOR ASSEMBLY
    UNITED STATES 4366802 THRU 4423111
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7082022
  • 14
    1379-6071A58 CARBURETOR ASSEMBLY
    UNITED STATES 4423112 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7082023 AND UP
    CARBURETOR ASSEMBLY
    UNITED STATES 4423112 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7082023 AND UP
  • 15
    22-19688 ELBOW, CARBURETOR
    ELBOW, CARBURETOR
  • 16
    10-52743 SCREW, CARBURETOR TO CRANKCASE (3 3/4")
    SCREW, CARBURETOR TO CRANKCASE (3 3/4")
  • 17
    53720A2 COUPLING ASSEMBLY (LOWER CARBURETOR)
    COUPLING ASSEMBLY (LOWER CARBURETOR)
  • 18
    28-89694 INSERT, COUPLING
    INSERT, COUPLING
  • 19
    10-66104 SCREW, COUPLING TO CARBURETOR (3/4")
    SCREW, COUPLING TO CARBURETOR (3/4")
  • 20
    12-74726 WASHER, COUPLING SCREW
    WASHER, COUPLING SCREW
  • 21
    73847 ACTUATOR, THROTTLE (UPPER CARBURETOR)
    ACTUATOR, THROTTLE (UPPER CARBURETOR)
  • 22
    10-60293 SCREW, ACTUATOR TO UPPER CARBURETOR (1/2")
    SCREW, ACTUATOR TO UPPER CARBURETOR (1/2")
  • 23
    73408 PLATE, CARBURETOR
    PLATE, CARBURETOR
  • 24
    27-73398 GASKET, CARBURETOR PLATE
    GASKET, CARBURETOR PLATE
  • 25
    27-76952 GASKET, CARBURETOR PLATE TO CARBURETOR
    GASKET, CARBURETOR PLATE TO CARBURETOR
  • 26
    10-28635 SCREW, PLATE TO CARBURETOR (5/8")
    SCREW, PLATE TO CARBURETOR (5/8")
  • 27
    73647 SEAL, CARBURETOR PLATE
    SEAL, CARBURETOR PLATE
