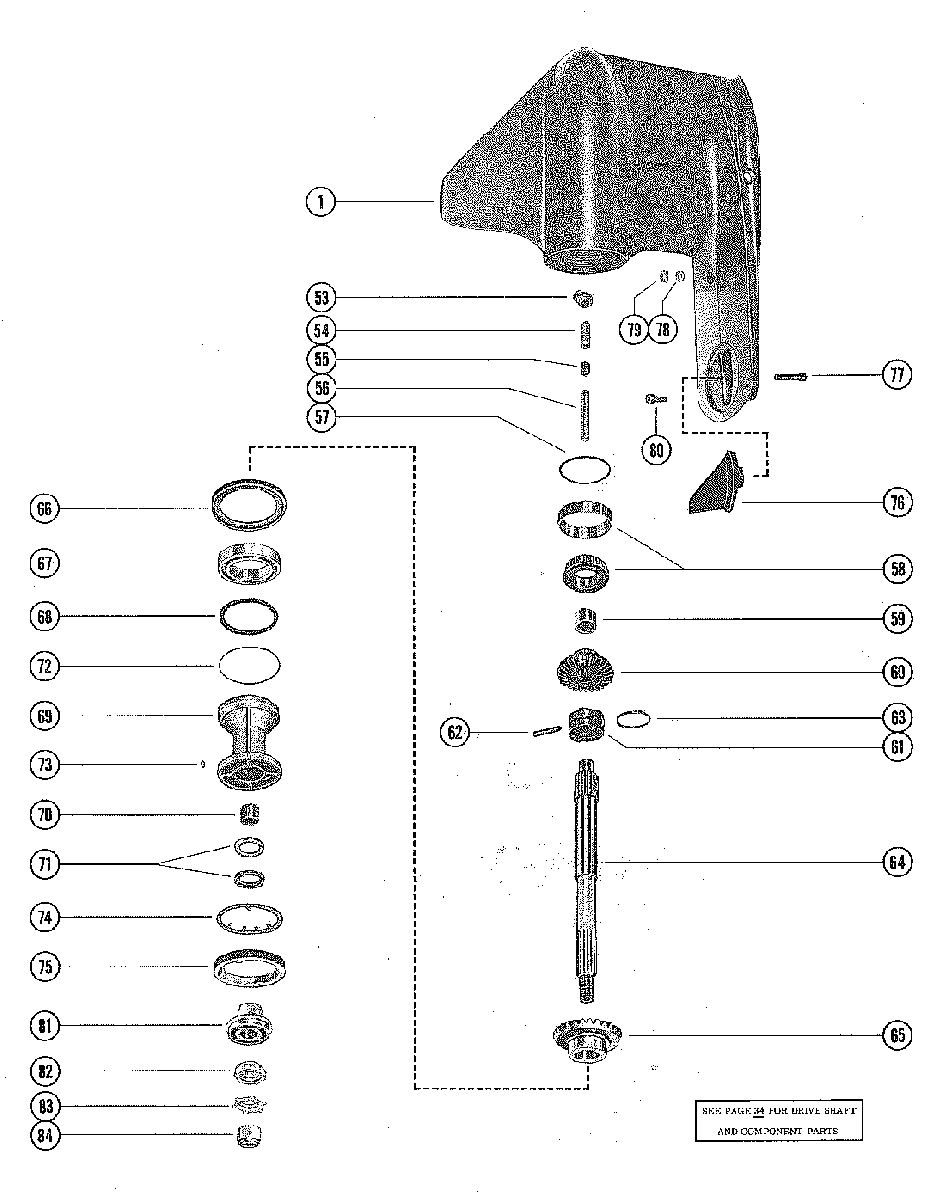

GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP #1) (PAGE 2) для Mercury - 850 (4 CYL.) 7071373 THRU 7110997
-
№АртикулНазвание
-
-1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (MERC 850XS)SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE (MERC 850XS)SEE NOTE BELOW
-
-1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (MERC 850 LONG) SEE NOTE BELGEAR HOUSING ASSEMBLY, COMPLETE (MERC 850 LONG) SEE NOTE BEL
-
11623-7339A5 GEAR HOUSING ASSEMBLY (MERC 850XS) SEE PAGE 34 FOR BREAKDOWGEAR HOUSING ASSEMBLY (MERC 850XS) SEE PAGE 34 FOR BREAKDOW
-
11623-6052A4 GEAR HOUSING ASSEMBLY (MERC 850 LONG)SEE PG 34 FOR BREAKDOGEAR HOUSING ASSEMBLY (MERC 850 LONG)SEE PG 34 FOR BREAKDO
-
53760394 CAM, SHIFTCAM, SHIFT
-
5430625 FOLLOWER, CAMFOLLOWER, CAM
-
5530624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5624-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5715-30923A1 SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)
-
5831-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5931-30895T BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
6043-56517T3 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
6152-822539T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6217-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
6324-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6444-93003 SHAFT, PROPELLERSHAFT, PROPELLER
-
6543-56516T REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6612-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSINGWASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
-
6730-31265 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6825-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6973800A1 BEARING CARRIER ASSEMBLY (MERC 850XS)BEARING CARRIER ASSEMBLY (MERC 850XS)
-
6952132T1 BEARING CARRIER ASSEMBLY (MERC 850 LONG)BEARING CARRIER ASSEMBLY (MERC 850 LONG)
-
7031-30956T BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
7126-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7225-32546 "O" RING, BEARING CARRIER (MERC 850XS)"O" RING, BEARING CARRIER (MERC 850XS)
-
7328-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7414-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
7552699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7697-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
7710-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
7812-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
7911-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
8010-65210 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
-
8165091Q01 THRUST HUBTHRUST HUB
-
8212-31211Q03 WASHER, SPLINED - PROPELLER NUTWASHER, SPLINED - PROPELLER NUT
-
8314-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8411-52707Q1 NUT, PROPELLERNUT, PROPELLER
