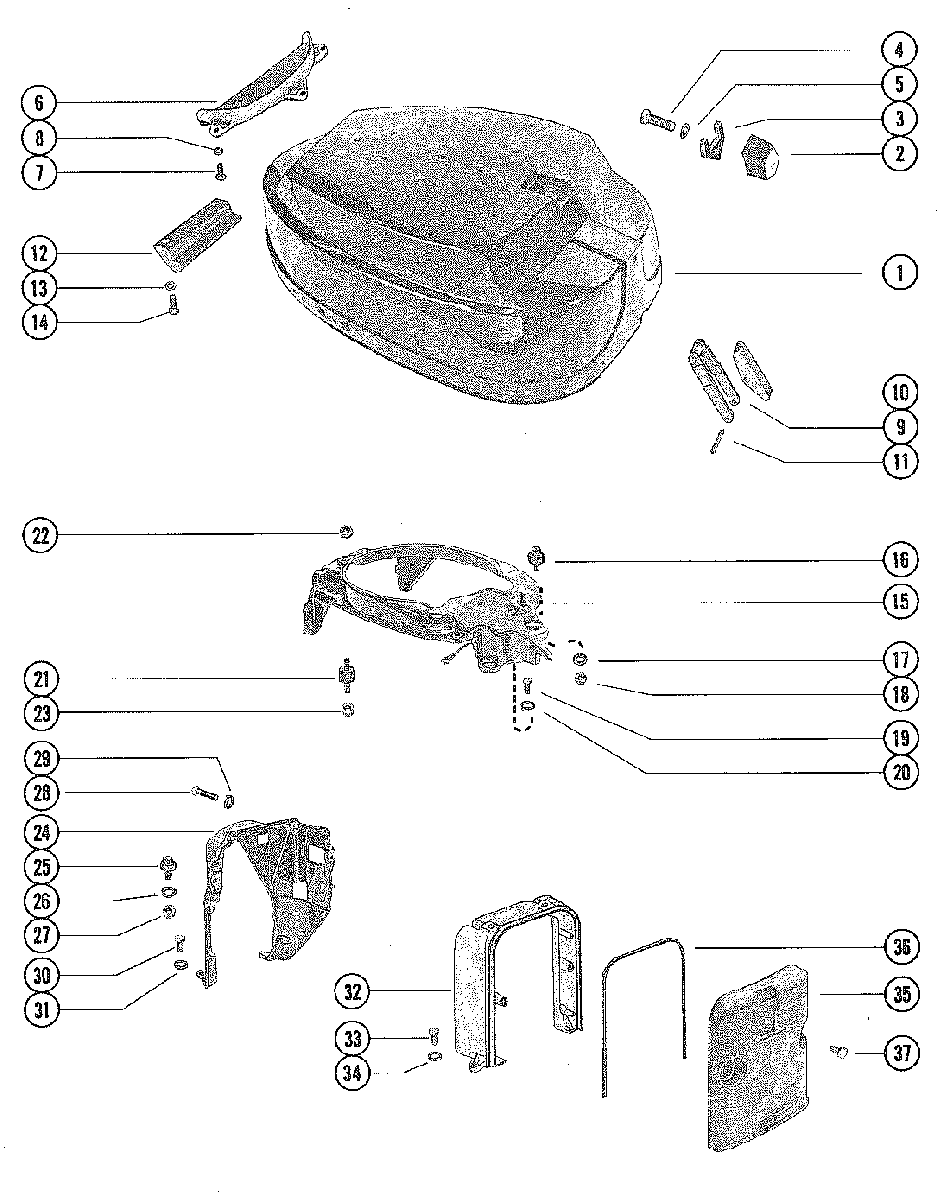

TOP COWL AND SUPPORT BRACKETS для Mercury - 800 (4 CYL.), 80 (4 CYL.) 9177626 THRU 9256130

  • №
    Артикул
    Название
  • 1
    2114-7934T COWL, TOP (WITHOUT DECALS)
    COWL, TOP (WITHOUT DECALS)
  • 2
    52733A9 RETAINER ASSEMBLY, TOP COWL
    RETAINER ASSEMBLY, TOP COWL
  • 3
    35496 PAD, BUMPER-TOP COWL RETAINER
    PAD, BUMPER-TOP COWL RETAINER
  • 4
    10-74824 SCREW, RETAINER TO TOP COWL (1 1/4")
    SCREW, RETAINER TO TOP COWL (1 1/4")
  • 5
    13-39107 LOCKWASHER, RETAINER FASTENING SCREW
    LOCKWASHER, RETAINER FASTENING SCREW
  • 6
    76370 SHIELD, TOP COWL - REAR
    SHIELD, TOP COWL - REAR
  • 7
    10-37370 SCREW, SHIELD TO TOP COWL (5/8")
    SCREW, SHIELD TO TOP COWL (5/8")
  • 8
    13-37371 LOCKWASHER, SHIELD SCREW
    LOCKWASHER, SHIELD SCREW
  • 9
    52739 HINGE, COWL LATCH - TOP COWL
    HINGE, COWL LATCH - TOP COWL
  • 10
    94918F1 LEVER, COWL LATCH HINGE
    LEVER, COWL LATCH HINGE
  • 11
    17-58998 PIN, COWL LATCH LEVER TO HINGE
    PIN, COWL LATCH LEVER TO HINGE
  • 12
    55455 HOOK, TOP COWL LATCH - REAR
    HOOK, TOP COWL LATCH - REAR
  • 13
    13-26992 LOCKWASHER, REAR HOOK MOUNTING SCREW
    LOCKWASHER, REAR HOOK MOUNTING SCREW
  • 14
    10-22956 SCREW, REAR HOOK TO TOP COWL (7/8")
    SCREW, REAR HOOK TO TOP COWL (7/8")
  • 15
    73401T FRAME, SUPPORT - TOP COWL
    FRAME, SUPPORT - TOP COWL
  • 16
    37640 MOUNT, RUBBER - SUPPORT FRAME
    MOUNT, RUBBER - SUPPORT FRAME
  • 17
    13-26993 LOCKWASHER, RUBBER MOUNT
    LOCKWASHER, RUBBER MOUNT
  • 18
    11-28770 NUT, RUBBER MOUNT
    NUT, RUBBER MOUNT
  • 19
    10-37562 SCREW, SUPPORT FRAME TO FRONT FRAME (1")
    SCREW, SUPPORT FRAME TO FRONT FRAME (1")
  • 20
    13-26993 LOCKWASHER, SUPPORT FRAME SCREW
    LOCKWASHER, SUPPORT FRAME SCREW
  • 21
    90435 MOUNT, RUBBER - TOP COWL FRAME
    MOUNT, RUBBER - TOP COWL FRAME
  • 22
    11-35888 NUT, RUBBER MOUNT (UPPER)
    NUT, RUBBER MOUNT (UPPER)
  • 23
    11-20184 NUT, RUBBER MOUNT (LOWER)
    NUT, RUBBER MOUNT (LOWER)
  • 24
    52468 BRACKET, TOP COWL SUPPORT - REAR
    BRACKET, TOP COWL SUPPORT - REAR
  • 25
    31014 MOUNT, RUBBER - REAR SUPPORT BRACKET)
    MOUNT, RUBBER - REAR SUPPORT BRACKET)
  • 26
    13-26992 LOCKWASHER
    RUBBER MOUNT TO REAR SUPPORT BRACKET
    LOCKWASHER
    RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 27
    11-29598 NUT
    RUBBER MOUNT TO REAR SUPPORT BRACKET
    NUT
    RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 28
    10-37562 SCREW, REAR BRACKET TO FRAME (1")
    SCREW, REAR BRACKET TO FRAME (1")
  • 29
    13-26993 LOCKWASHER, REAR BRACKET SCREW
    LOCKWASHER, REAR BRACKET SCREW
  • 30
    10-37562 SCREW
    REAR SUPPORT BRACKET TO BOTTOM COWL (1")
    SCREW
    REAR SUPPORT BRACKET TO BOTTOM COWL (1")
  • 31
    13-26993 LOCKWASHER
    REAR SUPPORT BRACKET SCREW
    LOCKWASHER
    REAR SUPPORT BRACKET SCREW
  • 32
    73396 FRAME, FRONT SUPPORT
    FRAME, FRONT SUPPORT
  • 33
    10-37562 SCREW, SILENCER COVER
    SCREW, SILENCER COVER
  • 34
    13-26993 LOCKWASHER, FRAME SCREW
    LOCKWASHER, FRAME SCREW
  • 35
    76226A1 COVER ASSMEBLY, SILENCER
    COVER ASSMEBLY, SILENCER
  • 36
    27-76168A2 GASKET, SILENCER COVER
    GASKET, SILENCER COVER
  • 37
    10-28638 SCREW, COVER TO FRONT SUPPORT FRAME (3/4")
    SCREW, COVER TO FRONT SUPPORT FRAME (3/4")
  • -
    27-73645A87 GASKET SET
    GASKET SET
