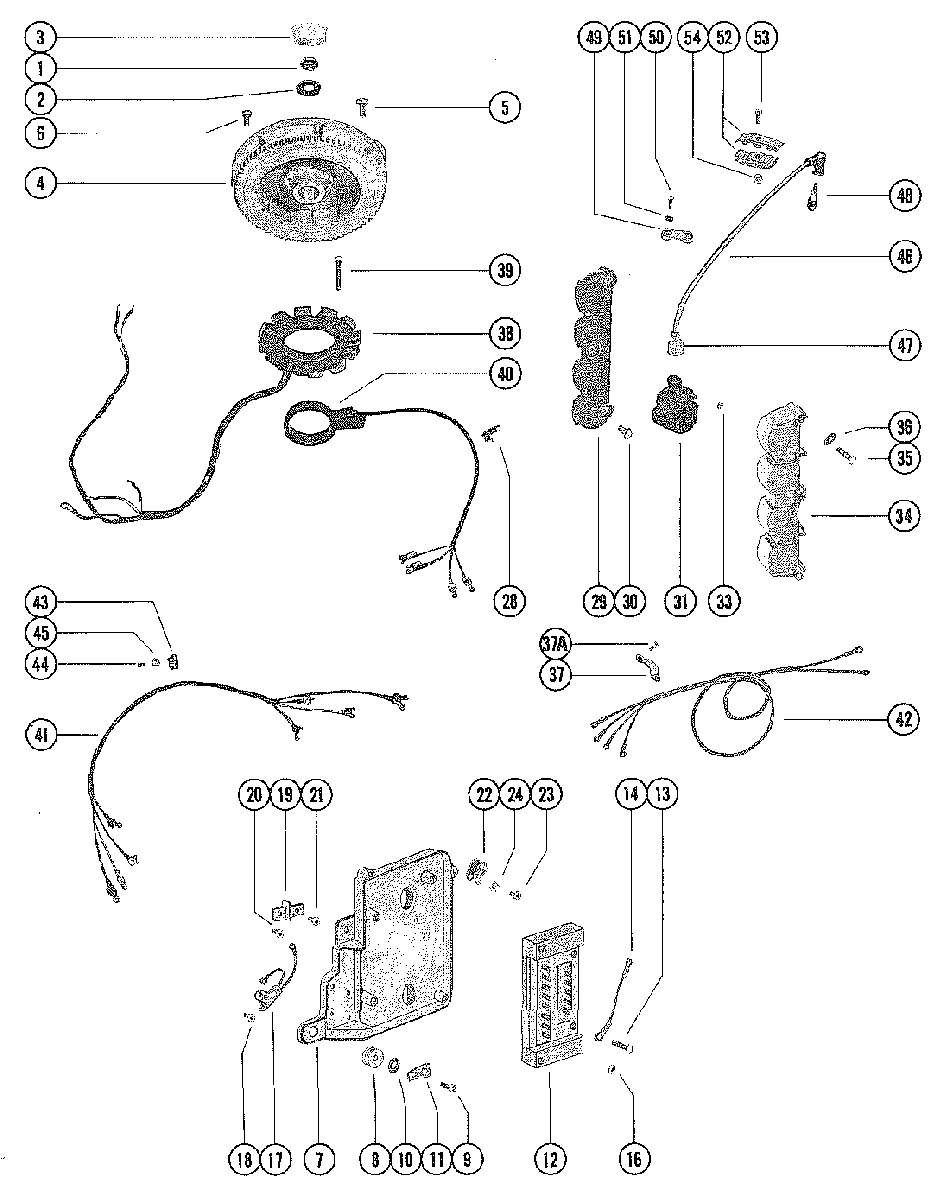

FLYWHEEL, STATOR AND IGNITION COIL для Mercury - 800 (4 CYL.), 80 (4 CYL.) 8050200 THRU 8067014

  • №
    Артикул
    Название
  • 1
    11-52901 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    19-45907 PLUG, FLYWHEEL PULLER THREADS
    PLUG, FLYWHEEL PULLER THREADS
  • 4
    248-8722A6 FLYWHEEL ASSEMBLY
    UNITED STATES 5141096 AND BELOW
    AUSTRALIA 8056519 AND BELOW
    BELGIUM 9207925 AND BELOW
    CANADA 7122587 AND BELOW
    FLYWHEEL ASSEMBLY
    UNITED STATES 5141096 AND BELOW
    AUSTRALIA 8056519 AND BELOW
    BELGIUM 9207925 AND BELOW
    CANADA 7122587 AND BELOW
  • 4
    248-8722A6 FLYWHEEL ASSEMBLY
    UNITED STATES 5141097 AND UP
    AUSTRALIA 8056520 AND UP
    BELGIUM 9207928 AND UP
    CANADA 7122588 ANDUP
    FLYWHEEL ASSEMBLY
    UNITED STATES 5141097 AND UP
    AUSTRALIA 8056520 AND UP
    BELGIUM 9207928 AND UP
    CANADA 7122588 ANDUP
  • 5
    10-68997 SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")
    SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")
  • 6
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
  • 7
    90332 PLATE, SWITCH BOX
    PLATE, SWITCH BOX
  • 8
    25-57009001 GROMMET, SWITCH BOX PLATE
    GROMMET, SWITCH BOX PLATE
  • 9
    10-824941 SCREW
    SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")
    SCREW
    SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")
  • 10
    12-56720 WASHER, SWITCH BOX PLATE SCREW
    WASHER, SWITCH BOX PLATE SCREW
  • 11
    54-47483 "J" CLIP, SWITCH BOX WIRES AND FUEL LINE
    "J" CLIP, SWITCH BOX WIRES AND FUEL LINE
  • 12
    332-5772A7 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 13
    10-20619 SCREW, SWITCH BOX TO PLATE (1 3/8")
    SCREW, SWITCH BOX TO PLATE (1 3/8")
  • 14
    84-65999A5 WIRE ASSEMBLY
    WIRE ASSEMBLY
  • 16
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 17
    58124A19 MERCURY SWITCH ASSEMBLY
    MERCURY SWITCH ASSEMBLY
  • 18
    10-37571 SCREW, MERCURY SWITCH TO PLATE (1/2")
    SCREW, MERCURY SWITCH TO PLATE (1/2")
  • 19
    86-66986 TERMINAL BLOCK
    TERMINAL BLOCK
  • 20
    10-38055 SCREW, TERMINAL BLOCK TO PLATE (5/8")
    SCREW, TERMINAL BLOCK TO PLATE (5/8")
  • 21
    10-37655 SCREW, WIRE TO TERMINAL BLOCK (1/2")
    SCREW, WIRE TO TERMINAL BLOCK (1/2")
  • 22
    54-23567 CLIP, WIRES AND HARNESS
    CLIP, WIRES AND HARNESS
  • 23
    10-48408 SCREW, CLIP TO PLATE (3/8")
    SCREW, CLIP TO PLATE (3/8")
  • 24
    8M0084613 "D" WAHER, CLIP SCREW
    "D" WAHER, CLIP SCREW
  • 28
    54-47483 "J" CLAMP, TRIGGER PLATE HARNESS
    "J" CLAMP, TRIGGER PLATE HARNESS
  • 29
    73395 PLATE, MOUNTING - IGNITION COIL
    PLATE, MOUNTING - IGNITION COIL
  • 30
    10-28668 SCREW, MOUNTING PLATE TO CRANKCASE (7/8")
    SCREW, MOUNTING PLATE TO CRANKCASE (7/8")
  • 31
    339-5288T2 IGNITION COIL ASSEMBLY
    UNITED STATES 5141096 AND BELOW
    AUSTRALIA 8056519 AND BELOW
    BELGIUM 9207925 AND BELOW
    CANADA 7122587 AND BELOW
    IGNITION COIL ASSEMBLY
    UNITED STATES 5141096 AND BELOW
    AUSTRALIA 8056519 AND BELOW
    BELGIUM 9207925 AND BELOW
    CANADA 7122587 AND BELOW
  • 31
    339-832757A4 IGNITION COIL ASSEMBLY
    UNITED STATES 5141097 AND UP
    AUSTRALIA 8056520 AND UP
    BELGIUM 9207928 AND UP
    CANADA 7122588 ANDUP
    IGNITION COIL ASSEMBLY
    UNITED STATES 5141097 AND UP
    AUSTRALIA 8056520 AND UP
    BELGIUM 9207928 AND UP
    CANADA 7122588 ANDUP
  • 33
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 34
    87554 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 35
    10-88856 SCREW, COVER TO MOUNTING PLATE (2")
    SCREW, COVER TO MOUNTING PLATE (2")
  • 36
    12-30164 WASHER, COVER SCREW
    WASHER, COVER SCREW
  • 37
    77672 STRAP, PRIMARY HARNESS
    STRAP, PRIMARY HARNESS
  • 37A
    10-48408 SCREW, STRAP ATTACHING
    SCREW, STRAP ATTACHING
  • 38
    398-5454A26 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 39
    10-75840 SCREW, STATOR TO UPPER END CAP (7/8")
    SCREW, STATOR TO UPPER END CAP (7/8")
  • 40
    96453A2 TRIGGER PLATE ASSEMBLY
    TRIGGER PLATE ASSEMBLY
  • 41
    84-77617 HARNESS, PRIMARY (CYLINDERS 1 AND 2)
    HARNESS, PRIMARY (CYLINDERS 1 AND 2)
  • 42
    84-77618 HARNESS, PRIMARY (CYLINDERS 3 AND 4)
    HARNESS, PRIMARY (CYLINDERS 3 AND 4)
  • 43
    54-45806 CLAMP, HARNESS ATTACHING
    CLAMP, HARNESS ATTACHING
  • 44
    10-48408 SCREW, CLAMP TO CRANKCASE (1/2")
    SCREW, CLAMP TO CRANKCASE (1/2")
  • 45
    8M0084613 "D" WASHER, HARNESS CLAMP SCREW
    "D" WASHER, HARNESS CLAMP SCREW
  • 46
    84-813715A1 WIRE ASSEMBLY, SPARK PLUG
    WIRE ASSEMBLY, SPARK PLUG
  • 47
    332-2854T01 BOOT, IGNITION COIL END
    BOOT, IGNITION COIL END
  • 48
    33-97182Q SPARK PLUG (AC#V40FFK)
    FOR CANADA AND BELGIUM, USE C-33-68098 (CHAMPION #QL-76V)
    SPARK PLUG (AC#V40FFK)
    FOR CANADA AND BELGIUM, USE C-33-68098 (CHAMPION #QL-76V)
  • 49
    78278 RETAINER, WIRE
    RETAINER, WIRE
  • 50
    10-48408 SCREW, WIRE RETAINER
    SCREW, WIRE RETAINER
  • 51
    12-21273 WASHER, WIRE RETAINER SCREW
    WASHER, WIRE RETAINER SCREW
  • 52
    63319 RETAINER, SPARK PLUG WIRE
    RETAINER, SPARK PLUG WIRE
  • 53
    10-46378 SCREW, RETAINER TO CYLINDER BLOCK COVER (1")
    SCREW, RETAINER TO CYLINDER BLOCK COVER (1")
  • 54
    11-20013 NUT, RETAINER SCREW
    NUT, RETAINER SCREW
