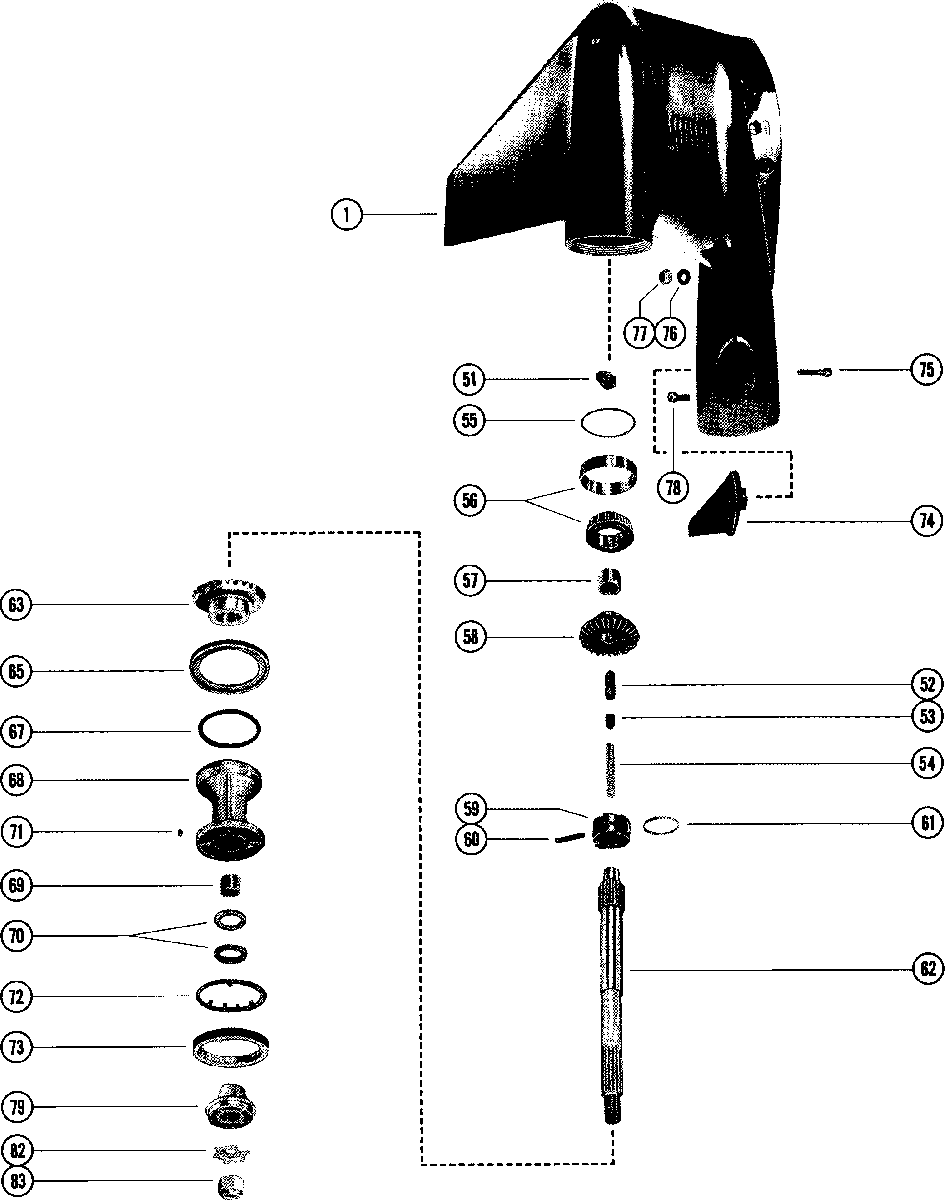

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 800 (4 CYL.), 80 (4 CYL.) 4831999 THRU 5582561

  • №
    Артикул
    Название
  • -
    1655-7333A27 GEAR HOUSING ASS'Y, COMP.(SHORT SHAFT)
    THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
    UNITED STATES 5141096 AND BELOW AUSTRALIA 8056519 AND BELOW
    BELGIUM 9207925 AND BELOW
    CANADA 7122587 AND BELOW
    GEAR HOUSING ASS'Y, COMP.(SHORT SHAFT)
    THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
    UNITED STATES 5141096 AND BELOW AUSTRALIA 8056519 AND BELOW
    BELGIUM 9207925 AND BELOW
    CANADA 7122587 AND BELOW
  • -
    1655-7333A25 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
    UNITED STATES 5141096 AND BELOW
    AUSTRALIA 8056519 AND BELOW
    BELGIUM 9207925 AND BELOW
    CANADA 7122587 AND BELOW
    GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
    UNITED STATES 5141096 AND BELOW
    AUSTRALIA 8056519 AND BELOW
    BELGIUM 9207925 AND BELOW
    CANADA 7122587 AND BELOW
  • -
    1655-7333A27 GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
    UNITED STATES 5141097 AND UP
    AUSTRALIA 8056520 AND UP
    BELGIUM 9207928 AND UP
    CANADA 7122588 ANDUP
    GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
    THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
    UNITED STATES 5141097 AND UP
    AUSTRALIA 8056520 AND UP
    BELGIUM 9207928 AND UP
    CANADA 7122588 ANDUP
  • -
    1655-7333A25 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
    UNITED STATES 5141097 AND UP
    AUSTRALIA 8056520 AND UP
    BELGIUM 9207928 AND UP
    CANADA 7122588 ANDUP
    GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
    THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
    UNITED STATES 5141097 AND UP
    AUSTRALIA 8056520 AND UP
    BELGIUM 9207928 AND UP
    CANADA 7122588 ANDUP
  • 1
    1655-7333T23 GEAR HOUSING ASS'Y
    UNITED STATES 5141096 AND BELOW
    AUSTRALIA 8056519 AND BELOW
    BELGIUM 9207925 AND BELOW
    CANADA 7122587 AND BELOW
    GEAR HOUSING ASS'Y
    UNITED STATES 5141096 AND BELOW
    AUSTRALIA 8056519 AND BELOW
    BELGIUM 9207925 AND BELOW
    CANADA 7122587 AND BELOW
  • 1
    1655-7333T23 GEAR HOUSING ASS'Y
    UNITED STATES 5141097 AND UP
    AUSTRALIA 8056520 AND UP
    BELGIUM 9207928 AND UP
    CANADA 7122588 ANDUP
    GEAR HOUSING ASS'Y
    UNITED STATES 5141097 AND UP
    AUSTRALIA 8056520 AND UP
    BELGIUM 9207928 AND UP
    CANADA 7122588 ANDUP
  • 51
    760394 CAM, SHIFT
    CAM, SHIFT
  • 52
    30625 FOLLOWER, CAM
    FOLLOWER, CAM
  • 53
    30624 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 54
    24-30622 SPRING, COMPRESSION-CAM FOLLOWER
    SPRING, COMPRESSION-CAM FOLLOWER
  • 55
    15-30923A1 SHIM
    BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)
    SHIM
    BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)
  • 56
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 57
    31-30895T BEARING, ROLLER-FORWARD GEAR
    BEARING, ROLLER-FORWARD GEAR
  • 58
    43-75314T2 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 59
    52-822539T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 60
    17-8M0100263 PIN, CROSS-RATCHET TO PROPELLER SHAFT
    PIN, CROSS-RATCHET TO PROPELLER SHAFT
  • 61
    24-30893 SPRING, RETAINING-CROSS PIN
    SPRING, RETAINING-CROSS PIN
  • 62
    44-93003 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 63
    43-77562T REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 65
    12-76358 WASHER
    THRUST-BEARING CARRIER TO GEAR HOUSING
    WASHER
    THRUST-BEARING CARRIER TO GEAR HOUSING
  • 67
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 68
    41529T2 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 69
    31-30956T BEARING, ROLLER-BEARING CARRIER
    BEARING, ROLLER-BEARING CARRIER
  • 70
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 71
    28-30281 KEY,LOCATING-BEARING CARRIER
    KEY,LOCATING-BEARING CARRIER
  • 72
    14-52700 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 73
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 74
    97-31640Q4 TROM TAB, GEAR HOUSING
    TROM TAB, GEAR HOUSING
  • 75
    10-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
  • 76
    12-45176 WASHER
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    WASHER
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 77
    11-34933 NUT
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    NUT
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 78
    10-65210 SCREW
    GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW
    GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
  • 79
    13191Q01 THRUST HUB
    THRUST HUB
  • 82
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 83
    11-52707Q1 NUT, PROPELLER
    NUT, PROPELLER
  • --
    27-73645A87 GASKET SET
    GASKET SET
