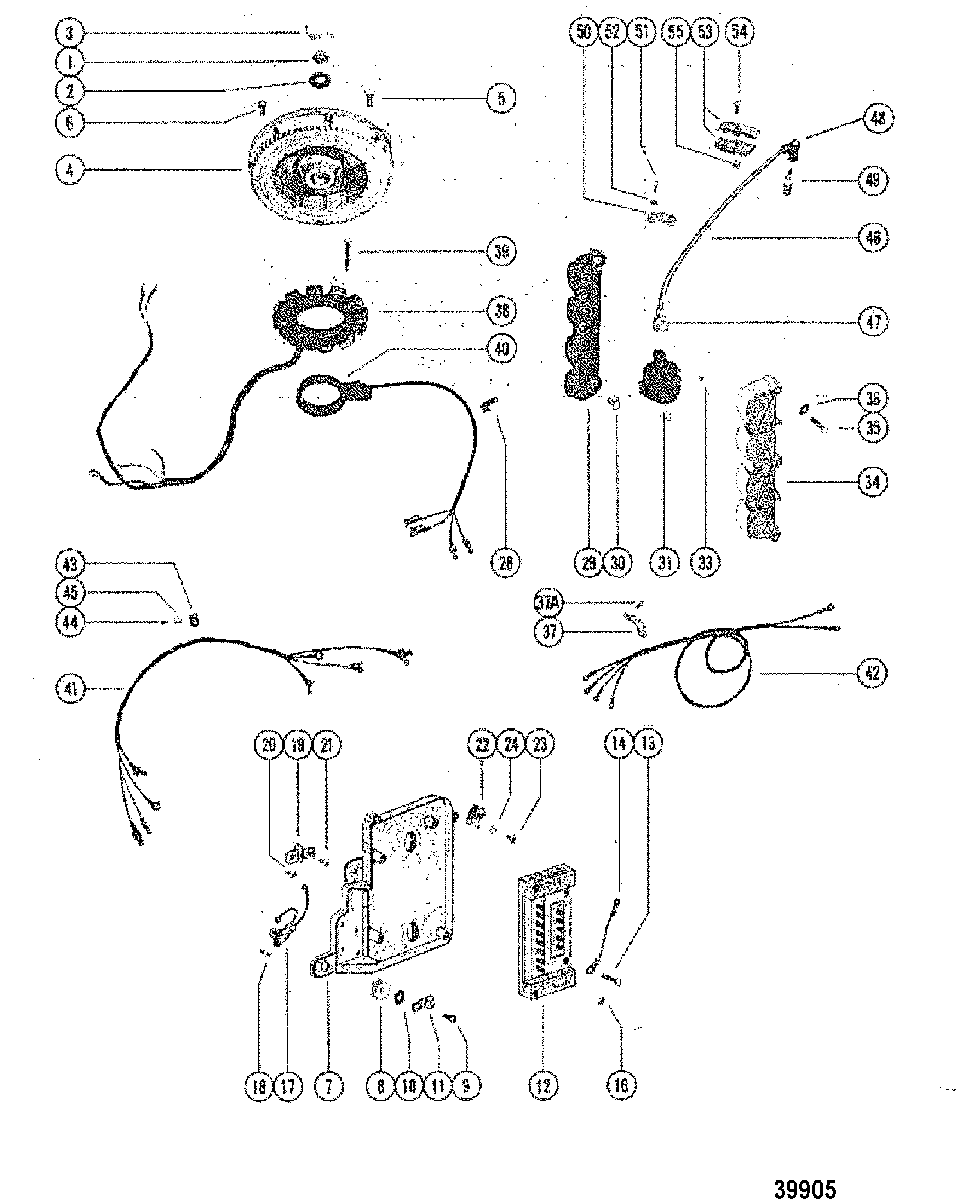

FLYWHEEL, STATOR AND IGNITION COIL для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 8067015 & Up

  • №
    Артикул
    Название
  • 1
    11-52901 NUT, (.625-18), FLYWHEEL
    NUT, (.625-18), FLYWHEEL
  • 2
    12-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
    WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
  • 3
    19-45907 PLUG, Yellow, FLYWHEEL PULLER THREADS
    PLUG, Yellow, FLYWHEEL PULLER THREADS
  • 4
    248-8722A6 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 5
    10-68997 SCREW, (.312-24 x .750), PLATE/HUB TO FLEXIBLE PLATE
    SCREW, (.312-24 x .750), PLATE/HUB TO FLEXIBLE PLATE
  • 6
    10-32417 SCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEEL
    SCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEEL
  • 7
    90332 PLATE, SWITCH BOX
    PLATE, SWITCH BOX
  • 8
    25-57009001 GROMMET, SWITCH BOX
    GROMMET, SWITCH BOX
  • 9
    10-824941 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 10
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel, SWITCH BOX PLATE SCREW
    WASHER, (.330 x .750 x .060) Stainless Steel, SWITCH BOX PLATE SCREW
  • 11
    54-47483 J CLIP, SWITCH BOX WIRES AND FUEL LINE
    J CLIP, SWITCH BOX WIRES AND FUEL LINE
  • 12
    332-5772A7 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 13
    10-20619 SCREW, (#12-24 x 1.25), SWITCH BOX TO PLATE
    SCREW, (#12-24 x 1.25), SWITCH BOX TO PLATE
  • 14
    84-65999A5 WIRE ASSEMBLY
    WIRE ASSEMBLY
  • 16
    11-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINAL
    NUT, (#10-32) Brass, SWITCH BOX TERMINAL
  • 17
    58124A19 MERCURY SWITCH ASSEMBLY
    MERCURY SWITCH ASSEMBLY
  • 18
    10-37571 SCREW, (.190-32 x .500), MERCURY SWITCH TO PLATE
    SCREW, (.190-32 x .500), MERCURY SWITCH TO PLATE
  • 19
    86-66986 TERMINAL BLOCK
    TERMINAL BLOCK
  • 20
    10-38055 SCREW, (.190-32 x .62), TERMINAL BLOCK TO PLATE
    SCREW, (.190-32 x .62), TERMINAL BLOCK TO PLATE
  • 21
    10-37655 SCREW, (#10-32 x .500), WIRE TO TERMINAL BLOCK
    SCREW, (#10-32 x .500), WIRE TO TERMINAL BLOCK
  • 22
    54-23567 CLIP, WIRES AND HARNESS
    CLIP, WIRES AND HARNESS
  • 23
    10-48408 SCREW, (#10-16 x .500), CLIP TO PLATE
    SCREW, (#10-16 x .500), CLIP TO PLATE
  • 24
    8M0084613 C WASHER, CLIP SCREW
    C WASHER, CLIP SCREW
  • 28
    54-47483 J CLIP, TRIGGER PLATE HARNESS
    J CLIP, TRIGGER PLATE HARNESS
  • 29
    73395 PLATE, MOUNTING - IGNITION COIL
    PLATE, MOUNTING - IGNITION COIL
  • 30
    10-28668 SCREW, (.250-20 x .875) Stainless Steel, MOUNTING PLATE TO CRANKCASE
    SCREW, (.250-20 x .875) Stainless Steel, MOUNTING PLATE TO CRANKCASE
  • 31
    339-832757A4 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 33
    11-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINAL
    NUT, (#10-32) Brass, IGNITION COIL TERMINAL
  • 34
    87554 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 35
    10-88856 SCREW, (.190-32 x 2.00), COVER TO MOUNTING PLATE
    SCREW, (.190-32 x 2.00), COVER TO MOUNTING PLATE
  • 36
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, COVER SCREW
    WASHER, (.192 x .375 x .0312) Stainless Steel, COVER SCREW
  • 37
    77672 STRAP, PRIMARY HARNESS
    STRAP, PRIMARY HARNESS
  • 37A
    10-48408 SCREW, (#10-16 x .500), STRAP ATTACHING
    SCREW, (#10-16 x .500), STRAP ATTACHING
  • 38
    398-5454A26 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 39
    10-75840 SCREW, (#10-24 x .880), STATOR TO UPPER END CAP
    SCREW, (#10-24 x .880), STATOR TO UPPER END CAP
  • 40
    96453A2 TRIGGER PLATE ASSEMBLY
    TRIGGER PLATE ASSEMBLY
  • 41
    84-77617 HARNESS ASSEMBLY, PRIMARY (CYLINDERS 1 AND 2)
    HARNESS ASSEMBLY, PRIMARY (CYLINDERS 1 AND 2)
  • 42
    84-77618 HARNESS ASSEMBLY, PRIMARY (CYLINDERS 3 AND 4)
    HARNESS ASSEMBLY, PRIMARY (CYLINDERS 3 AND 4)
  • 43
    54-45806 CLAMP, HARNESS ATTACHING
    CLAMP, HARNESS ATTACHING
  • 44
    10-48408 SCREW, (#10-16 x .500), CLAMP TO CRANKCASE
    SCREW, (#10-16 x .500), CLAMP TO CRANKCASE
  • 45
    8M0084613 C WASHER, HARNESS CLAMP SCREW
    C WASHER, HARNESS CLAMP SCREW
  • 46
    84-813715A1 WIRE ASSEMBLY, SPARK PLUG
    WIRE ASSEMBLY, SPARK PLUG
  • 47
    332-2854T01 BOOT, IGNITION COIL
    BOOT, IGNITION COIL
  • 48
    85-63709A1 BOOT/TERMINAL KIT, SPARK PLUG
    BOOT/TERMINAL KIT, SPARK PLUG
  • 49
    33-97182Q SPARK PLUG (AC#V40FFK)
    SPARK PLUG (AC#V40FFK)
  • 49
    33-14103550 SPARK PLUG
    Canada/Belgium
    SPARK PLUG
    Canada/Belgium
  • 50
    78278 RETAINER, WIRE
    RETAINER, WIRE
  • 51
    10-48408 SCREW, (#10-16 x .500), WIRE RETAINER
    SCREW, (#10-16 x .500), WIRE RETAINER
  • 52
    12-21273 WASHER, WIRE RETAINER SCREW
    WASHER, WIRE RETAINER SCREW
  • 53
    63319 RETAINER, SPARK PLUG WIRE
    RETAINER, SPARK PLUG WIRE
  • 54
    10-46378 SCREW, (.250-28 x 1.00), RETAINER TO CYLINDER BLOCK COVER
    SCREW, (.250-28 x 1.00), RETAINER TO CYLINDER BLOCK COVER
  • 55
    11-20013 NUT, (.250-28), RETAINER SCREW
    NUT, (.250-28), RETAINER SCREW
