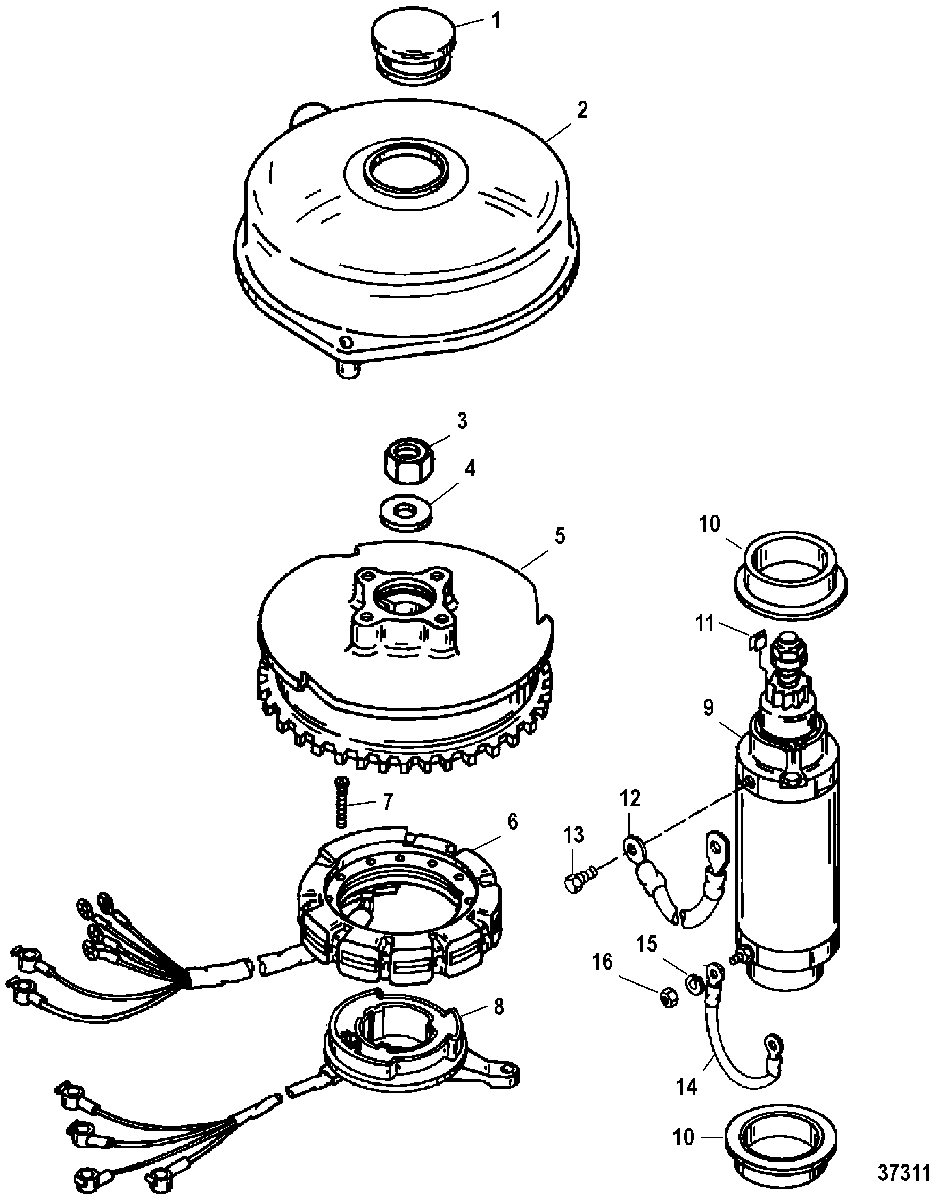

FLYWHEEL/STARTER MOTOR, USA:0G437999/BEL:9926999 AND BELOW для Mercury - 80 JET 9793577 THRU 0P016999
-
№АртикулНазвание
-
119-45907 PLUG, YellowPLUG, Yellow
-
2812777T1 COVER ASSEMBLYCOVER ASSEMBLY
-
311-42979 NUT, (M16)NUT, (M16)
-
412-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
5261-859236T13 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
6398-9710A45 STATORSTATOR
-
710-4007325 SCREW, (M5 x 25)SCREW, (M5 x 25)
-
899021A6 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
950-893892T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1023-8M0034918 COLLARCOLLAR
-
118M0043376 STOPSTOP
-
1284-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
1310-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
1484-93388A6 CABLE ASSEMBLY, (5.500 Inches)CABLE ASSEMBLY, (5.500 Inches)
-
1513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1611-64015 NUT, (.250-20)NUT, (.250-20)
