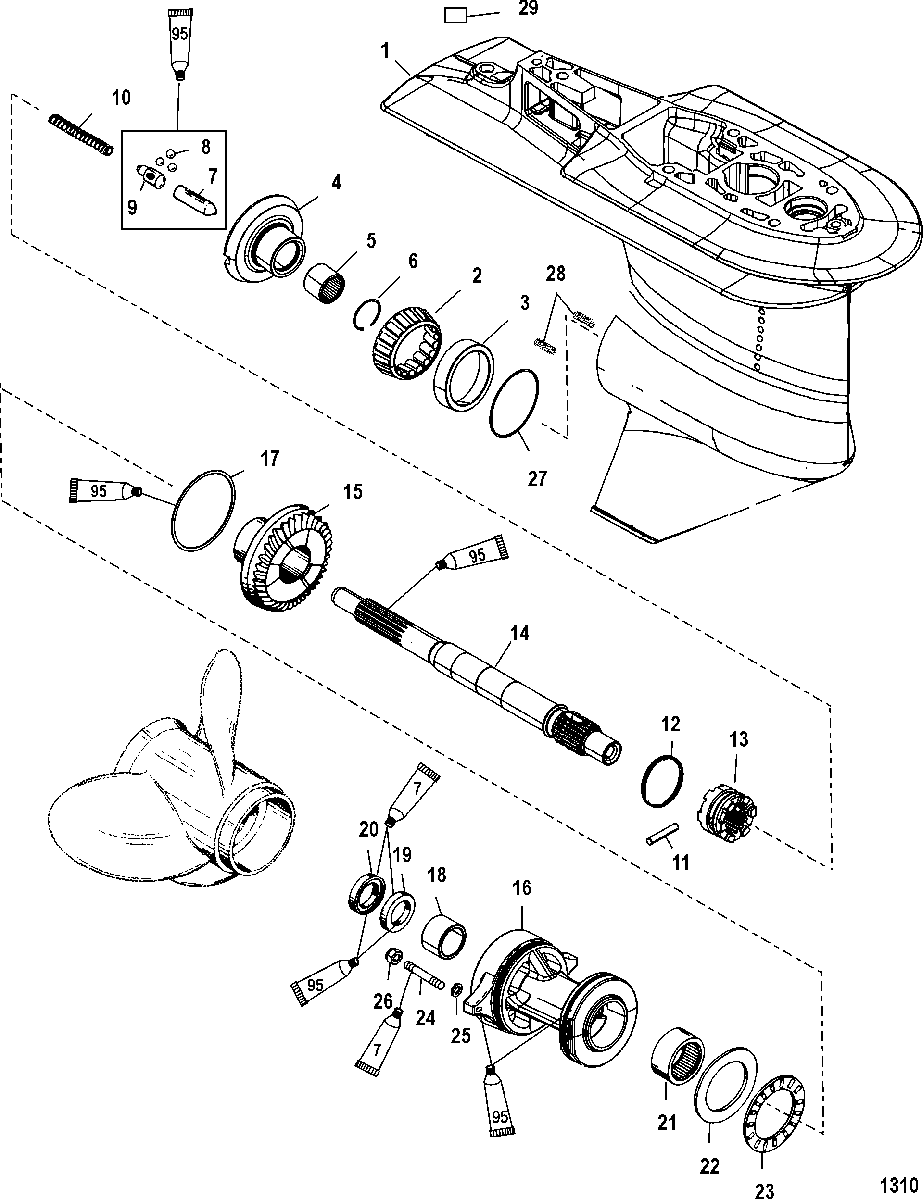

Gear Housing, Propeller Shaft - 2.07:1 Gear Ratio для Mercury - 80 JET 0T980000 THRU 0T999999

  • №
    Артикул
    Название
  • -
    1667-9011J6 GEAR HOUSING ASSEMBLY (Complete)(Long-20 Inch Model) Torpedo Diameter - 4.25 Inch / 107.95 mm
    NOTE: See Accessory Guide - Propeller Section- For Appropriate Hardware. (Thrust Washers/Nuts)
    GEAR HOUSING ASSEMBLY (Complete)(Long-20 Inch Model) Torpedo Diameter - 4.25 Inch / 107.95 mm
    NOTE: See Accessory Guide - Propeller Section- For Appropriate Hardware. (Thrust Washers/Nuts)
  • -
    1667-9011J9 GEAR HOUSING ASSEMBLY (Complete)(X-Long-25 Inch Model) Torpedo Diameter - 4.25 Inch / 107.95 mm
    NOTE: See Accessory Guide - Propeller Section- For Appropriate Hardware. (Thrust Washers/Nuts)
    GEAR HOUSING ASSEMBLY (Complete)(X-Long-25 Inch Model) Torpedo Diameter - 4.25 Inch / 107.95 mm
    NOTE: See Accessory Guide - Propeller Section- For Appropriate Hardware. (Thrust Washers/Nuts)
  • -
    1667-9011J15 GEAR HOUSING ASSEMBLY (Complete) Torpedo Diameter - 4.25 Inch / 107.95 mm
    (High Altitude-2.33:1 Ratio)
    GEAR HOUSING ASSEMBLY (Complete) Torpedo Diameter - 4.25 Inch / 107.95 mm
    (High Altitude-2.33:1 Ratio)
  • 1
    1667-9011G59 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 2
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 3
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 4
    43-881260A3 GEAR, Forward - 29 Teeth
    GEAR, Forward - 29 Teeth
  • 4
    43-882813A3 GEAR KIT, Forward And Pinion 28 Teeth
    (High Altitude-2.33:1 Ratio)
    GEAR KIT, Forward And Pinion 28 Teeth
    (High Altitude-2.33:1 Ratio)
  • 5
    31-30895T BEARING, Needle
    BEARING, Needle
  • 6
    53-856823 RING, Retaining
    RING, Retaining
  • 7
    850315A1 FOLLOWER KIT, Cam
    FOLLOWER KIT, Cam
  • 8
    30-44530 BALL
    BALL
  • 9
    NSS NOT SOLD SEPARATE, Slide
    NOT SOLD SEPARATE, Slide
  • 10
    24-850327 SPRING
    SPRING
  • 11
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 12
    24-30893 SPRING
    SPRING
  • 13
    52-850048T CLUTCH
    CLUTCH
  • 14
    44-8M0140445 PROPELLER SHAFT
    PROPELLER SHAFT
  • 15
    43-850036T GEAR, Reverse - 29 Teeth
    GEAR, Reverse - 29 Teeth
  • 15
    43-882814T GEAR, Reverse - 28 Teeth
    (High Altitude-2.33:1 Ratio)
    GEAR, Reverse - 28 Teeth
    (High Altitude-2.33:1 Ratio)
  • 16
    12596T2 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 17
    25-861844 O-RING, (3.609 x .139)
    O-RING, (3.609 x .139)
  • 18
    31-30956T BEARING, Needle
    BEARING, Needle
  • 19
    26-70080 SEAL, Oil (Inner)
    SEAL, Oil (Inner)
  • 20
    26-70081 SEAL, Oil (Outer)
    SEAL, Oil (Outer)
  • 21
    31-12578T BEARING, Roller
    BEARING, Roller
  • 22
    12-12577 THRUST WASHER
    THRUST WASHER
  • 23
    31-12576 BEARING, Thrust
    BEARING, Thrust
  • 24
    16-8M0034456 STUD, (M8 x 48)
    STUD, (M8 x 48)
  • 25
    12-855941 WASHER, (.323 x .590 x .112) Stainless Steel
    WASHER, (.323 x .590 x .112) Stainless Steel
  • 26
    11-401378 NUT, (M8)
    NUT, (M8)
  • 27
    15-8M0063266 SHIM SET (006 Thru 038)
    SHIM SET (006 Thru 038)
  • 28
    8227731 INSERT, Threaded
    INSERT, Threaded
  • 29
    NSS NOT SOLD SEPARATE, Decal-G/H Pinion Indent
    NOT SOLD SEPARATE, Decal-G/H Pinion Indent
  • -
    46-8M0113262 COVER ASSEMBLY, Water Pump
    COVER ASSEMBLY, Water Pump
  • -
    27-13461A99 GASKET SET
    GASKET SET
