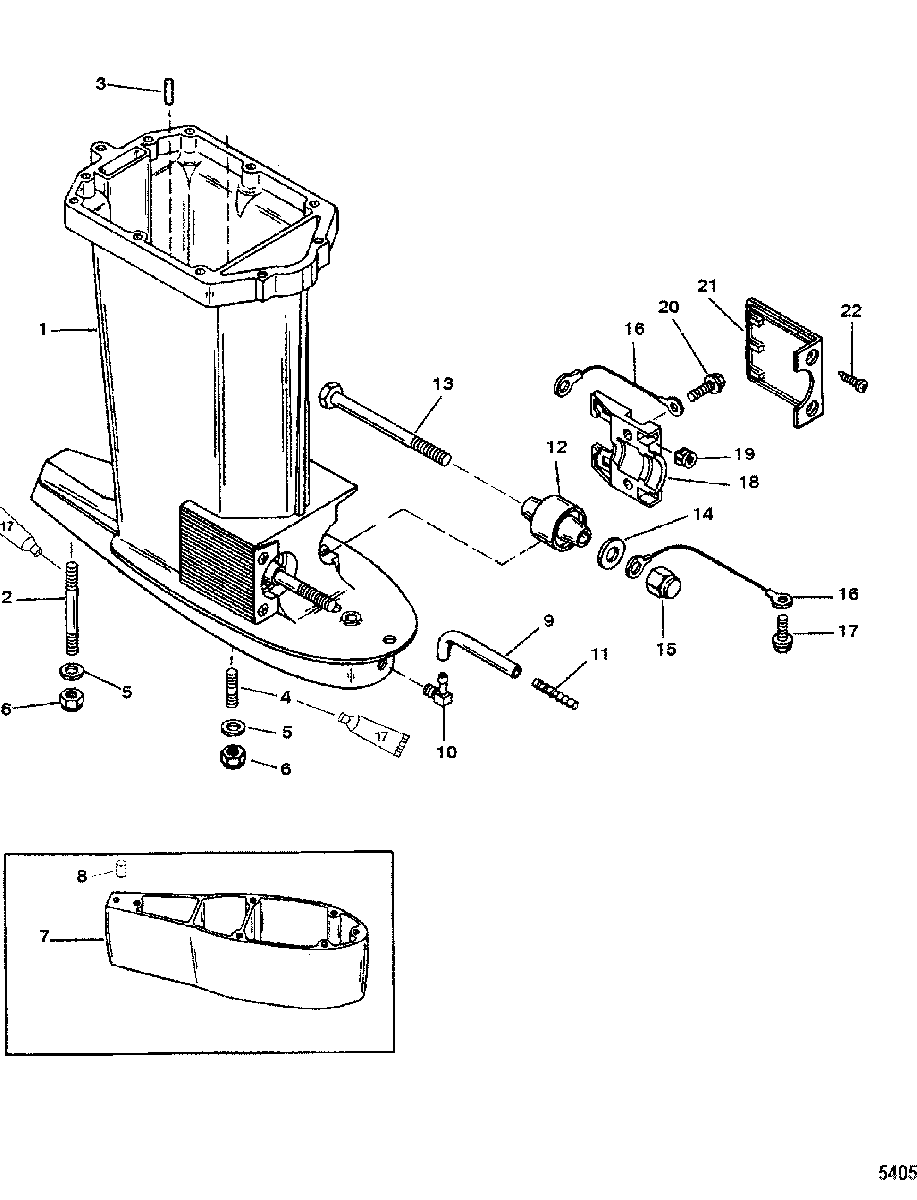

Driveshaft Housing, USA-0T800999/ BEL-0P267999 and Below для Mercury - 80 JET 0P017000 THRU 0P325499
-
№АртикулНазвание
-
1898289A49 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
11598-8974A26 HOUSING ASSEMBLY, Driveshaft
(Jet)HOUSING ASSEMBLY, Driveshaft
(Jet) -
216-903501 STUD, (M10 x 100)
(Long)STUD, (M10 x 100)
(Long) -
216-8M0034467 STUD, (M10 x 227)
(X-Long)STUD, (M10 x 227)
(X-Long) -
317-23784 PIN, DowelPIN, Dowel
-
416-9035012 STUD, (M10 x 63)
(Long)STUD, (M10 x 63)
(Long) -
416-8M0034462 STUD, (M10 x 190)
(X-Long)STUD, (M10 x 190)
(X-Long) -
512-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
611-40140 NUT, (M10)NUT, (M10)
-
712092A3 SPACER KIT
(X-Long)SPACER KIT
(X-Long) -
817-8M0084244 PIN, Dowel - With Hole (.375 x .625) (With Hole)
(X-Long)PIN, Dowel - With Hole (.375 x .625) (With Hole)
(X-Long) -
817-43044 PIN, Dowel - Without Hole (.375 x .625)
(X-Long)PIN, Dowel - Without Hole (.375 x .625)
(X-Long) -
922-85822A4 PICKUP ASSEMBLY, SpeedometerPICKUP ASSEMBLY, Speedometer
-
1022-433351 CONNECTOR, 90 Degree (.125-27) NylonCONNECTOR, 90 Degree (.125-27) Nylon
-
1122-85822T CONNECTOR, StraightCONNECTOR, Straight
-
1244343T1 MOUNTMOUNT
-
1310-898835001 BOLT, (M12 x 154)BOLT, (M12 x 154)
-
1412-30119 WASHER, (.875 Inch Outside Diameter)WASHER, (.875 Inch Outside Diameter)
-
1511-43528 NUT, (M12)NUT, (M12)
-
1688238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1710-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
188M0036730 CLAMPCLAMP
-
1911-35521 NUTNUT
-
2010-4010725 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
21100-8M4500752 COVER, BlackCOVER, Black
-
2210-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
