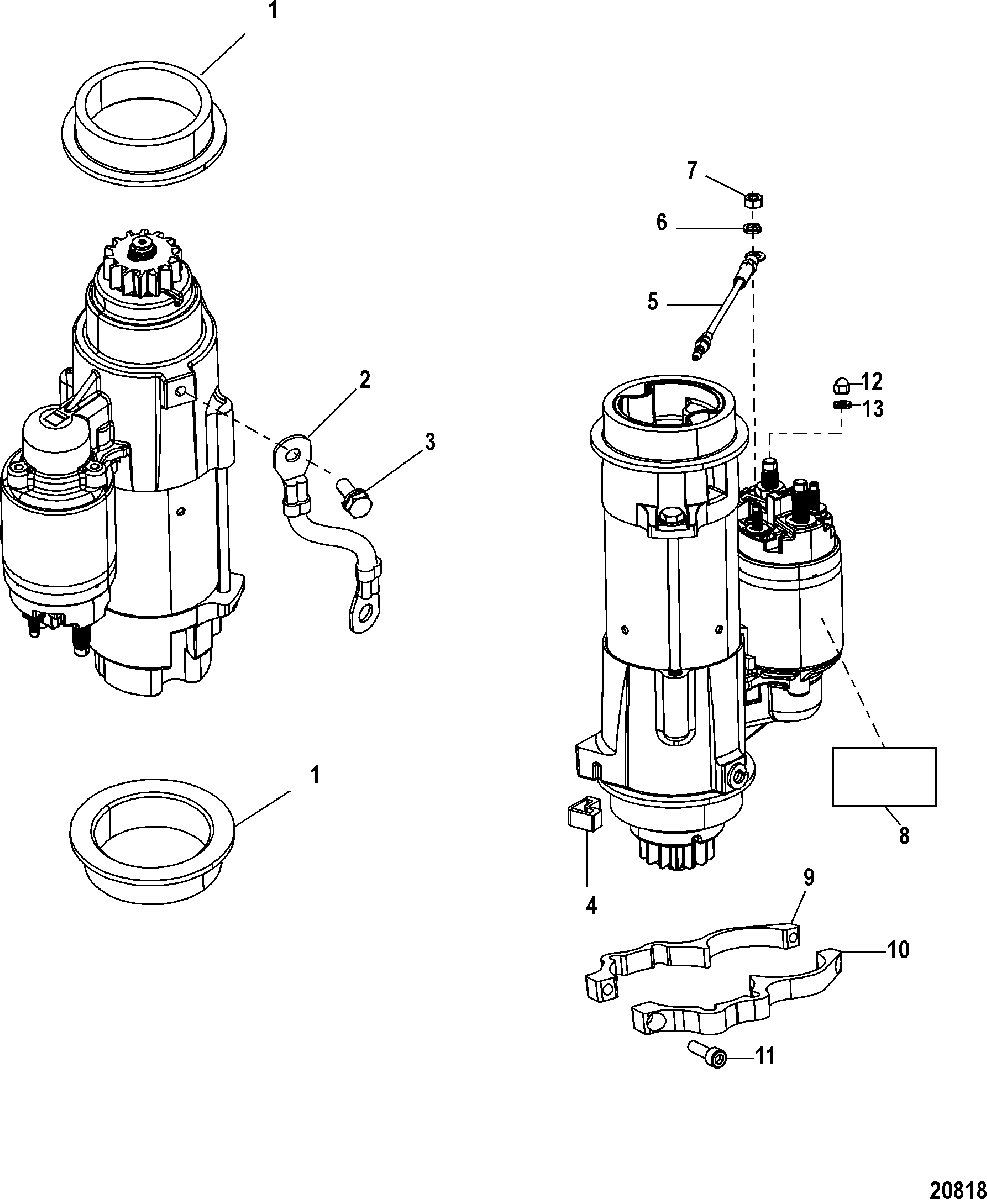

Starter Motor, 1B759587 and Below для Mercury - 80 EFI (4-STROKE) 1B366823 THRU 2B094995
-
№АртикулНазвание
-
-50-879150A85 STARTER MOTOR ASSEMBLY
SN# 1B580803 & BelowSTARTER MOTOR ASSEMBLY
SN# 1B580803 & Below -
-50-879150A85 STARTER MOTOR ASSEMBLY, Complete
SN# 1B580804 THRU 1B759587STARTER MOTOR ASSEMBLY, Complete
SN# 1B580804 THRU 1B759587 -
123-8M0034918 COLLAR, Starter MotorCOLLAR, Starter Motor
-
284-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
310-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
48M0007871 STOP, RubberSTOP, Rubber
-
584-898890T01 CABLE ASSEMBLYCABLE ASSEMBLY
-
613-400255 LOCKWASHER, (M5)LOCKWASHER, (M5)
-
711-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
837-8272822 DECAL, WarningDECAL, Warning
-
950-879150A85 CLAMPCLAMP
-
1050-879150A85 CLAMPCLAMP
-
1110-8M0008081 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
1211-8M0008110 NUT, AcornNUT, Acorn
-
1312-8M0008112 WASHER, (8 mm Outside Diameter x 187 mm)WASHER, (8 mm Outside Diameter x 187 mm)
