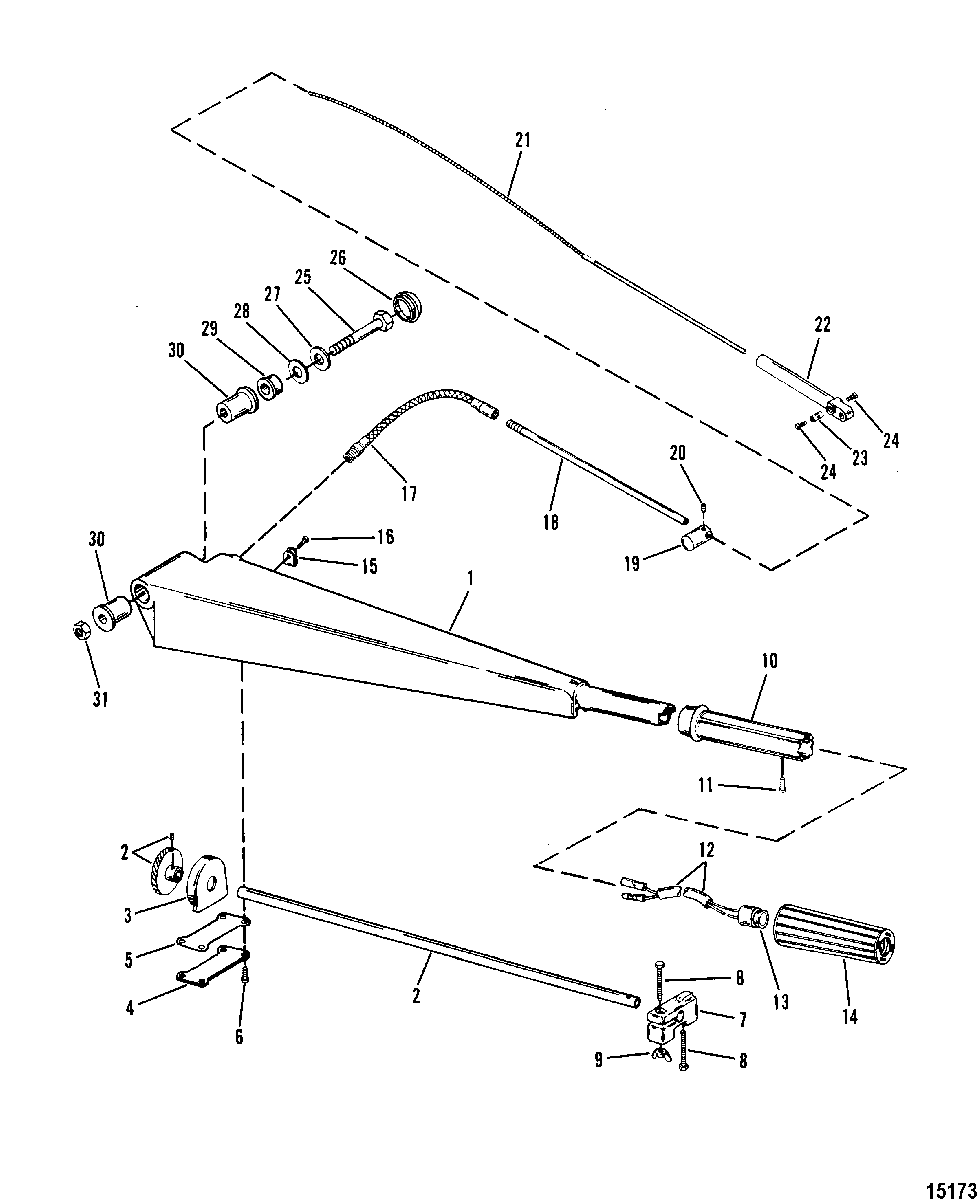

Steering Handle Components(With Steering Arm) для Mercury - 80 (3 CYL.) 9506481 THRU 9589038
-
№АртикулНазвание
-
112020A3 ARM, Steering, BlackARM, Steering, Black
-
112020A3 HANDLE ASSEMBLY, Steering Arm, GrayHANDLE ASSEMBLY, Steering Arm, Gray
-
212018A4 TUBE ASSEMBLY, ThrottleTUBE ASSEMBLY, Throttle
-
348414 HOUSINGHOUSING
-
448519 PLATEPLATE
-
527-48518 GASKETGASKET
-
610-72169 SCREW, (#10-24 x .500), PlateSCREW, (#10-24 x .500), Plate
-
754-889729 CLAMP, ThrottleCLAMP, Throttle
-
810-40007112 SCREW, (M5 x 40), Throttle ClampSCREW, (M5 x 40), Throttle Clamp
-
911-816874 WING NUT, Throttle Clamp ScrewWING NUT, Throttle Clamp Screw
-
1087-823609A15 HANDLE ASSEMBLY, ThrottleHANDLE ASSEMBLY, Throttle
-
1110-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1287-823609A15 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
1311099A1 BOOT ASSEMBLYBOOT ASSEMBLY
-
1499589003 GRIPGRIP
-
1554-648552 CLIPCLIP
-
1610-72169 SCREW, (#10-24 x .500), ClipSCREW, (#10-24 x .500), Clip
-
178885242 CONDUITCONDUIT
-
188M0026078 GUIDE TUBEGUIDE TUBE
-
1989578 BARRELBARREL
-
2010-824081 SCREWSCREW
-
2112019 CABLE ASSEMBLYCABLE ASSEMBLY
-
2243433 GUIDE, CableGUIDE, Cable
-
2320007 ANCHORANCHOR
-
2410-20518 SET SCREW, (#8-32)SET SCREW, (#8-32)
-
2510-4000386 SCREW, (M10 x 100)SCREW, (M10 x 100)
-
2648416T CAPCAP
-
2712-4002319 WASHERWASHER
-
2812-12024 WASHER, (.402 x .787 x .039 Bellevi)WASHER, (.402 x .787 x .039 Bellevi)
-
2923-146011 SPACERSPACER
-
3023-812930A1 BUSHINGBUSHING
-
3111-400214 NUT, (M10 x 1.5)NUT, (M10 x 1.5)
