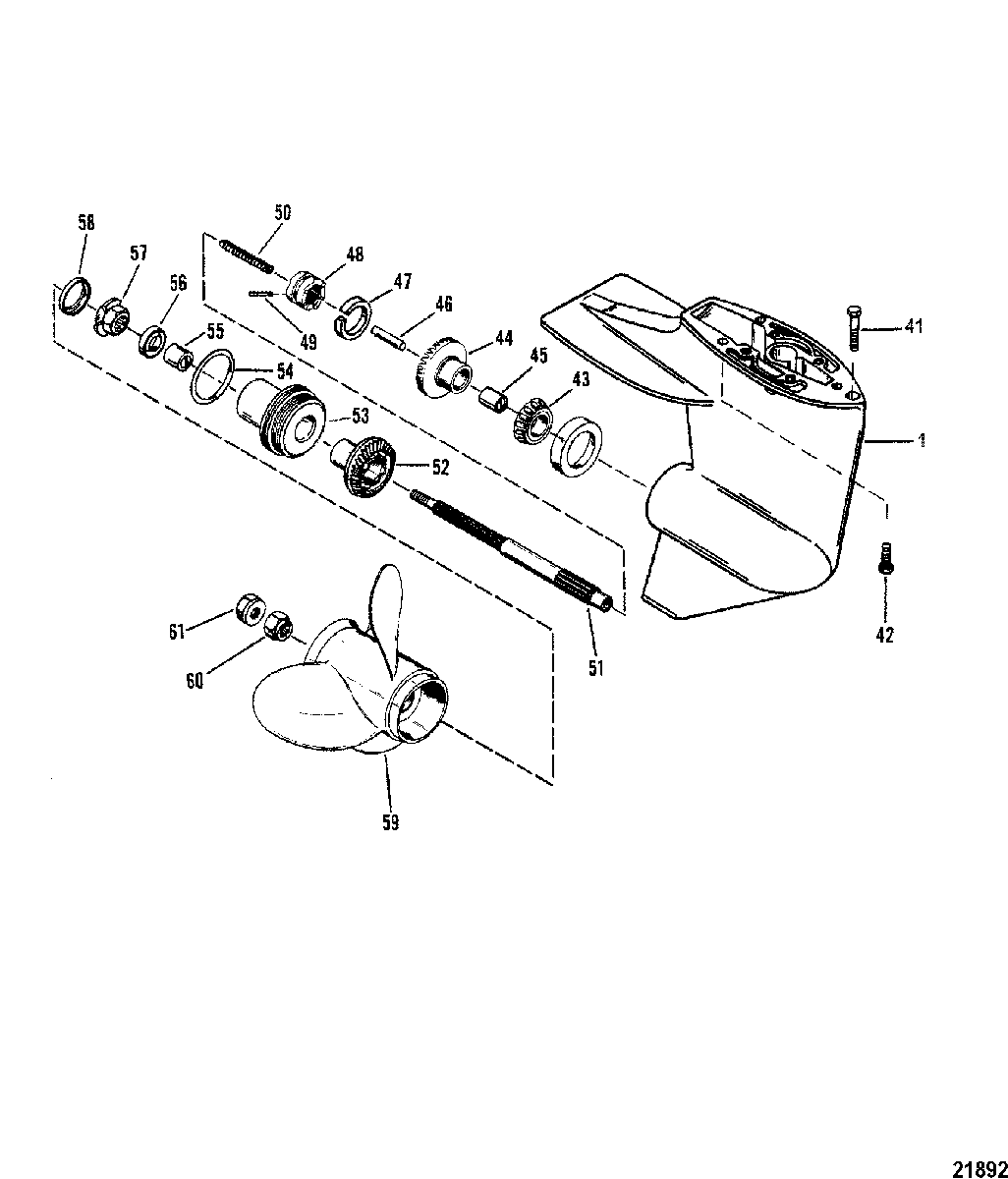

Gear Hsg(Propshaft-Design I-Refer to Driveshaft Drawing) для Mercury - 8 9461526 THRU 9792199
-
№АртикулНазвание
-
-1666-8833T13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (BLACK)GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (BLACK)
-
-1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (BLACK)GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (BLACK)
-
-1666-8833T14 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (GRAY)GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (GRAY)
-
-1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (GRAY)GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (GRAY)
-
11666-8833A1 GEAR HOUSING ASSEMBLY (BLACK)GEAR HOUSING ASSEMBLY (BLACK)
-
11666-8833A4 GEAR HOUSING ASSEMBLY (GRAY)GEAR HOUSING ASSEMBLY (GRAY)
-
4110-82407110 SCREWSCREW
-
4210-8240717 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
4331-821321A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
4443-41371A1 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
4523-41367 BUSHINGBUSHING
-
46813139 FOLLOWER, CamFOLLOWER, Cam
-
4753-32449 RING, RetainingRING, Retaining
-
4852-43217 CLUTCHCLUTCH
-
4917-30535 PIN, CrossPIN, Cross
-
5024-42204 SPRINGSPRING
-
5144-41370 PROPELLER SHAFTPROPELLER SHAFT
-
5243-44115T GEAR, ReverseGEAR, Reverse
-
5342144T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5425-33145 O-RING, (1.984 x .139)O-RING, (1.984 x .139)
-
5523-41368 BUSHINGBUSHING
-
5626-66022 SEAL, OilSEAL, Oil
-
5742037 THRUST HUBTHRUST HUB
-
5842201 CAPCAP
-
5948-828156A12 PROPELLER (9" X 9")PROPELLER (9" X 9")
-
5948-828158A12 PROPELLER (9" X 10-1/2")PROPELLER (9" X 10-1/2")
-
5948-828150A12 PROPELLER (SAILPOWER)PROPELLER (SAILPOWER)
-
6023-420911 SPACERSPACER
-
6111-40140 NUT, (M10)NUT, (M10)
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
-
-26-41365A3 SEAL KITSEAL KIT
Все узлы модели:
- CARBURETOR , WMC 1717B17C1818A18B20/20A/20B23
- CARBURETOR ASSEMBLY(15)
- CARBURETOR(WMC5A/WMC5B/WMC7/WMC7A/WMC19/WMC19A)
- CLAMP BRACKET
- COWLS
- CRANKSHAFT, PISTONS AND FLYWHEEL (6/8/9.9)
- CRANKSHAFT, PISTONS AND FLYWHEEL(15)
- CYLINDER BLOCK AND COVERS
- DRIVESHAFT HOUSING
- ELECTRIC COMPONENTS
- ELECTRIC COMPONENTS(VOLTAGE REGULATOR AND HARNESS)
- FUEL FILTER ASSEMBLY
- Gear Hsg(Driveshaft)(Design II-Refer to Reference #41)
- Gear Hsg(Driveshaft-Design I-Refer to Reference #17)
- • Gear Hsg(Propshaft-Design I-Refer to Driveshaft Drawing)
- Gear Hsg(Propshaft-Design II-Refer to Driveshaft Drawing)
- IGNITION COMPONENTS
- LINK ROD AND COMPONENTS(ELECTRIC LONG W/REMOTE CONTROL)
- MANUAL STARTER(DESIGN I)
- Manual Starter(Design II)
- MISCELLANEOUS PARTS/ACCESSORIES
- REMOTE CONTROL ATTACHING COMPONENTS
- SWIVEL BRACKET AND STEERING HANDLE
- THROTTLE AND SHIFT LINKAGE(SIDE SHIFT MODELS)
- THROTTLE AND SHIFT LINKAGE(TILLER HANDLE SHIFT MODELS)
