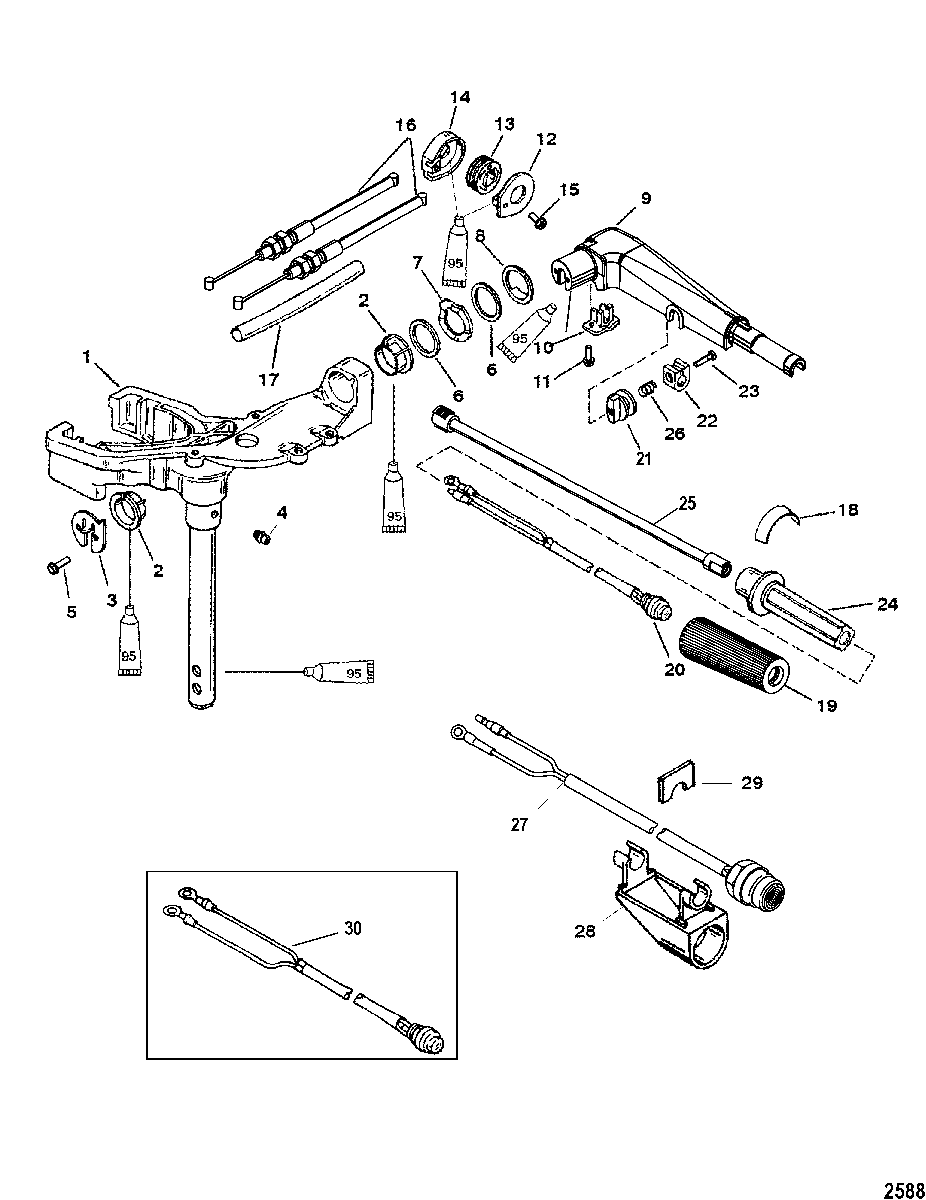

Swivel Head and Steering Handle для Mercury - 8 0G760300 THRU 0T979999
-
№АртикулНазвание
-
142213A24 SWIVEL HEAD
(Black)SWIVEL HEAD
(Black) -
223-823939 BUSHINGBUSHING
-
38221471 PLATEPLATE
-
422-74036 FITTING, GreaseFITTING, Grease
-
510-4010516 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
612-822145 WASHERWASHER
-
713-826792 WAVE WASHERWAVE WASHER
-
812-822146 WASHERWASHER
-
9821468A66 ARM ASSEMBLY, Steering Handle
(Black)ARM ASSEMBLY, Steering Handle
(Black) -
10822441 RETAINERRETAINER
-
1110-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
12822148A3 COVER KITCOVER KIT
-
13822150 PULLEYPULLEY
-
14NSS NOT SOLD SEPARATE (Pulley Case)NOT SOLD SEPARATE (Pulley Case)
-
1510-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1643242T18 CABLE, ThrottleCABLE, Throttle
-
1785-9600910 SLEEVESLEEVE
-
1837-8242002 DECALDECAL
-
1999589003 GRIPGRIP
-
2087-8M0104615 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
21821972T KNOB, ThrottleKNOB, Throttle
-
22892995 LOCK, ThrottleLOCK, Throttle
-
2310-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
24822429 HANDLE, ThrottleHANDLE, Throttle
-
25821463T01 TILLER TUBETILLER TUBE
-
2624-96203 SPRINGSPRING
-
2787-823609A18 SWITCH ASSEMBLY, Start/Stop
(Electric Handle)(Design II)SWITCH ASSEMBLY, Start/Stop
(Electric Handle)(Design II) -
28889734 HOUSING
(Electric Handle)HOUSING
(Electric Handle) -
29824918 CLIP
(Electric Handle)CLIP
(Electric Handle) -
3087-823609A6 SWITCH ASSEMBLY, Start/Stop
(Electric Handle)(Design I)SWITCH ASSEMBLY, Start/Stop
(Electric Handle)(Design I)
