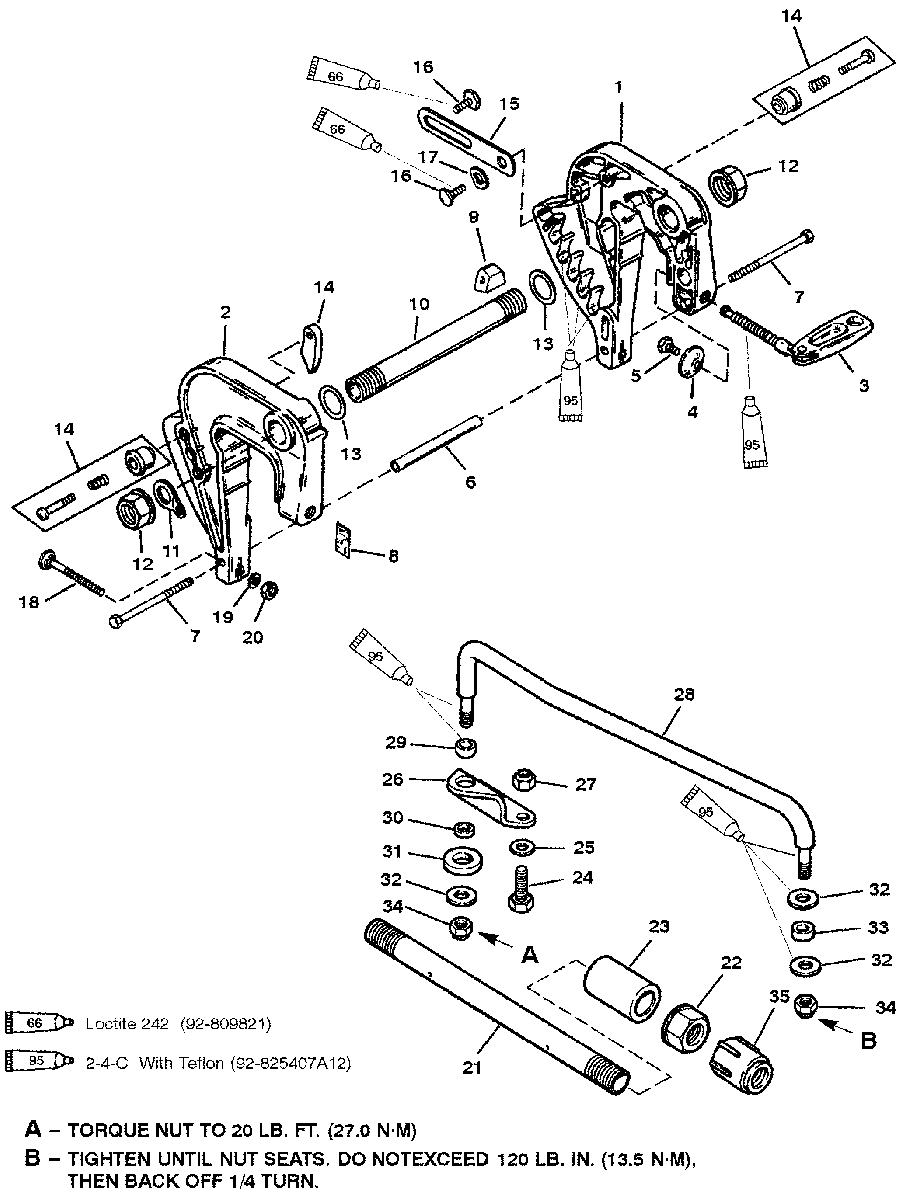

CLAMP BRACKET для Mercury - 8 (BODENSEE) 4-STROKE (International) 0H000058 AND UP

  • №
    Артикул
    Название
  • 1
    3404-8894A8 CLAMP BRACKET
    (PORT - BLACK)
    CLAMP BRACKET
    (PORT - BLACK)
  • 1
    3404-8894A8 CLAMP BRACKET
    (PORT - GRAY)
    CLAMP BRACKET
    (PORT - GRAY)
  • 2
    3403-8892A6 CLAMP BRACKET
    (STBD. - BLACK)
    CLAMP BRACKET
    (STBD. - BLACK)
  • 2
    3403-8892A6 CLAMP BRACKET
    (STBD. - GRAY)
    CLAMP BRACKET
    (STBD. - GRAY)
  • 3
    10-92767A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 4
    12-818884 WASHER-THUMB SCREW
    WASHER-THUMB SCREW
  • 5
    10-768042 SCREW-WASHER ATTACHING
    SCREW-WASHER ATTACHING
  • 6
    23-8M0084719 SPACER
    SPACER
  • 7
    10-4000333 SCREW
    SCREW
  • 8
    37-12869 DECAL (TILT)
    DECAL (TILT)
  • 9
    814427 SHUTTLE-TILT LOCK
    SHUTTLE-TILT LOCK
  • 10
    42078 TILT TUBE (MANUAL)
    TILT TUBE (MANUAL)
  • 11
    54-8M0085928 CLIP-SAFETY
    CLIP-SAFETY
  • 12
    11-93164 NUT-TILT TUBE
    NUT-TILT TUBE
  • 13
    12-71421 WASHER-TILT TUBE
    WASHER-TILT TUBE
  • 14
    42390A1 LEVER ASSEMBLY-TILT RETURN
    LEVER ASSEMBLY-TILT RETURN
  • 15
    90901 STRAP-TILT STOP - PORT SIDE
    STRAP-TILT STOP - PORT SIDE
  • 16
    10-42498 SCREW-STRAP TO CLAMP BRACKET
    SCREW-STRAP TO CLAMP BRACKET
  • 17
    13-31030 WAVE WASHER-TILT STOP STRAP SCREW
    WAVE WASHER-TILT STOP STRAP SCREW
  • 18
    10-43216 BOLT-CLAMP BRACKET TO TRANSOM
    BOLT-CLAMP BRACKET TO TRANSOM
  • 19
    12-67983 WASHER-CLAMP BRACKET BOLT
    WASHER-CLAMP BRACKET BOLT
  • 20
    11-8267118 NUT-CLAMP BRACKET BOLT
    NUT-CLAMP BRACKET BOLT
  • 21
    8M0041936 TILT TUBE
    ELECTRIC
    TILT TUBE
    ELECTRIC
  • 22
    11-93164 NUT
    ELECTRIC
    NUT
    ELECTRIC
  • 23
    23-113841 SPACER
    ELECTRIC
    SPACER
    ELECTRIC
  • 24
    10-4000354 SCREW
    ELECTRIC
    SCREW
    ELECTRIC
  • 25
    12-56720 WASHER
    ELECTRIC
    WASHER
    ELECTRIC
  • 26
    11607 BRACKET
    ELECTRIC
    BRACKET
    ELECTRIC
  • 27
    11-401388 NUT
    ELECTRIC
    NUT
    ELECTRIC
  • 28
    11606A1 TIE ROD
    ELECTRIC
    TIE ROD
    ELECTRIC
  • 29
    29698 BALL JOINT
    ELECTRIC
    BALL JOINT
    ELECTRIC
  • 30
    12-8M0109680 WASHER (.39 X .546 X .1)
    ELECTRIC
    WASHER (.39 X .546 X .1)
    ELECTRIC
  • 31
    12-30521 WASHER (.97 X .56 X .19)
    ELECTRIC
    WASHER (.97 X .56 X .19)
    ELECTRIC
  • 32
    12-37828 WASHER (.390 X .625 X .062)
    ELECTRIC
    WASHER (.390 X .625 X .062)
    ELECTRIC
  • 33
    23-66751 SPACER
    ELECTRIC
    SPACER
    ELECTRIC
  • 34
    11-8M0042636 NUT (.375-24)
    ELECTRIC
    NUT (.375-24)
    ELECTRIC
  • 35
    19624A1 SEAL KIT
    ELECTRIC
    SEAL KIT
    ELECTRIC
