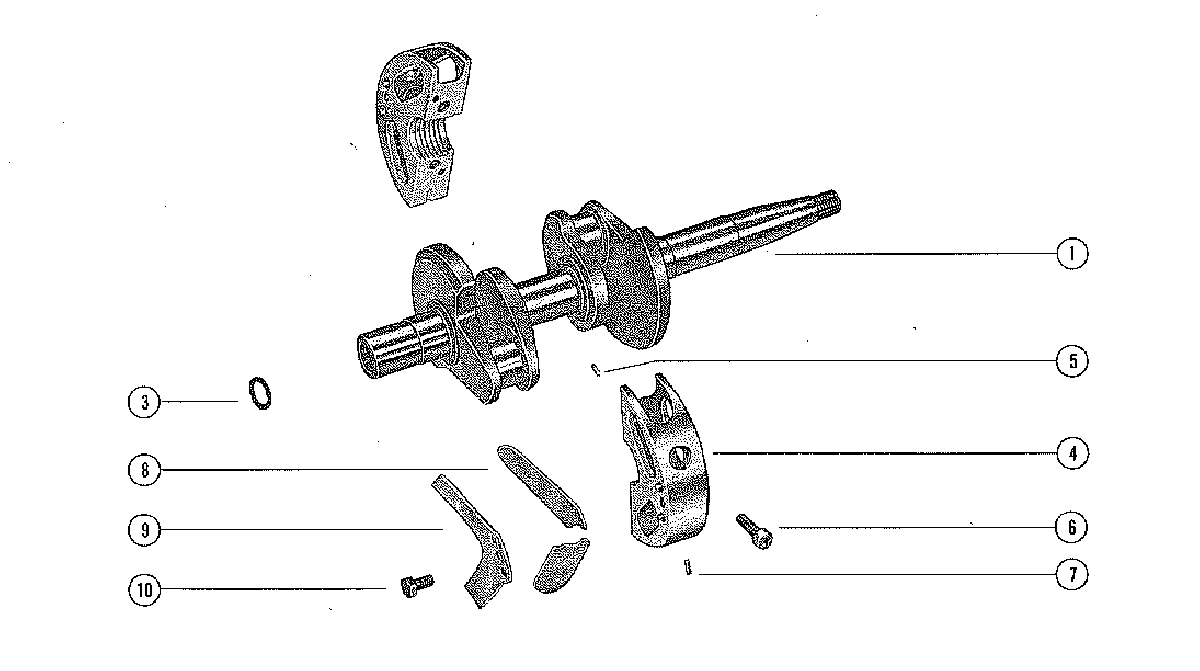

CRANKSHAFT AND MAIN BEARING ASSEMBLY для Mercury - 75 9181726 THRU 9219255

  • №
    Артикул
    Название
  • 1
    421-5275 CRANKSHAFT
    CRANKSHAFT
  • 3
    26-72793 SEAL, CRANKSHAFT
    SEAL, CRANKSHAFT
  • 4
    550-8122A5 MAIN BEARING ASSEMBLY (VALVE TYPE)
    MAIN BEARING ASSEMBLY (VALVE TYPE)
  • 5
    17-20032 PIN, DOWEL - MAIN BEARING
    PIN, DOWEL - MAIN BEARING
  • 5
    17-65855 PIN, DOWEL - REED LOCATING
    PIN, DOWEL - REED LOCATING
  • 6
    10-56781 SCREW, MAIN BEARING CLAMPING
    SCREW, MAIN BEARING CLAMPING
  • 7
    17-20032 PIN, DOWEL - MAIN BEARING TO BLOCK
    PIN, DOWEL - MAIN BEARING TO BLOCK
  • 8
    34-31942A1 REED SET, MATCHED - MAIN BEARING
    REED SET, MATCHED - MAIN BEARING
  • 9
    34-20053 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 10
    10-27304 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
