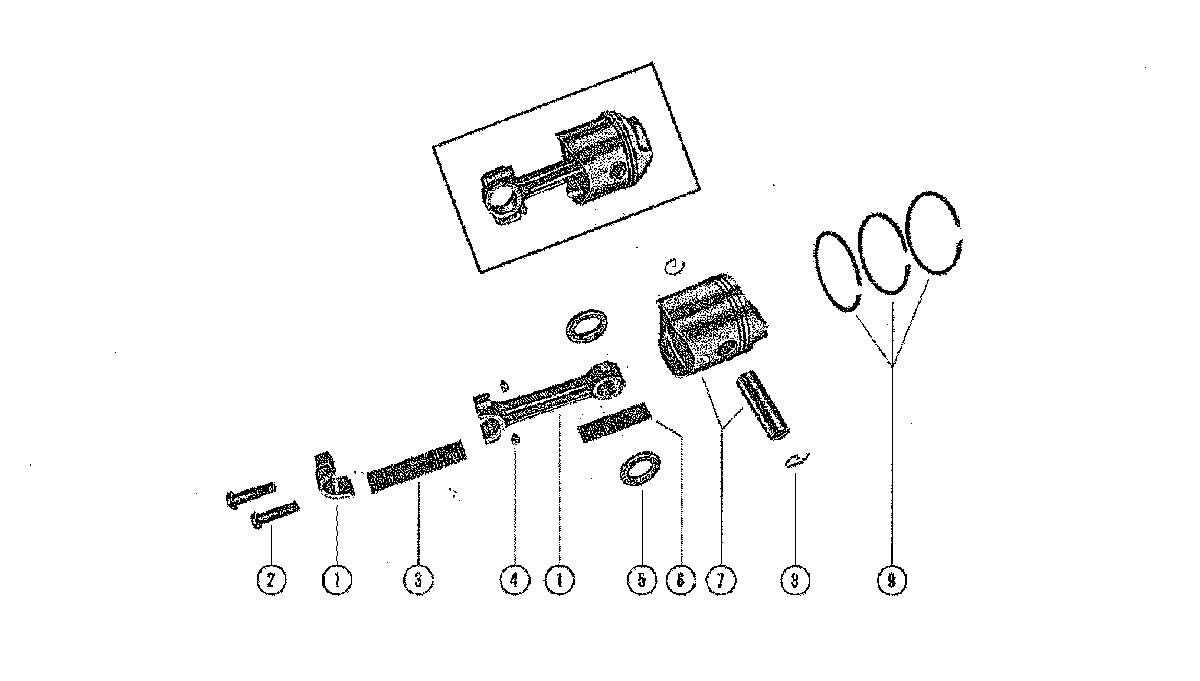

PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 75 9043194 THRU 9181725
-
№АртикулНазвание
-
1608-7395A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
210-87374 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
331-8M0045032 BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
411-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
512-65967 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
629-31505 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
7719-7391T3 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
840-21666 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
939-21665A12 RING, PISTONRING, PISTON
