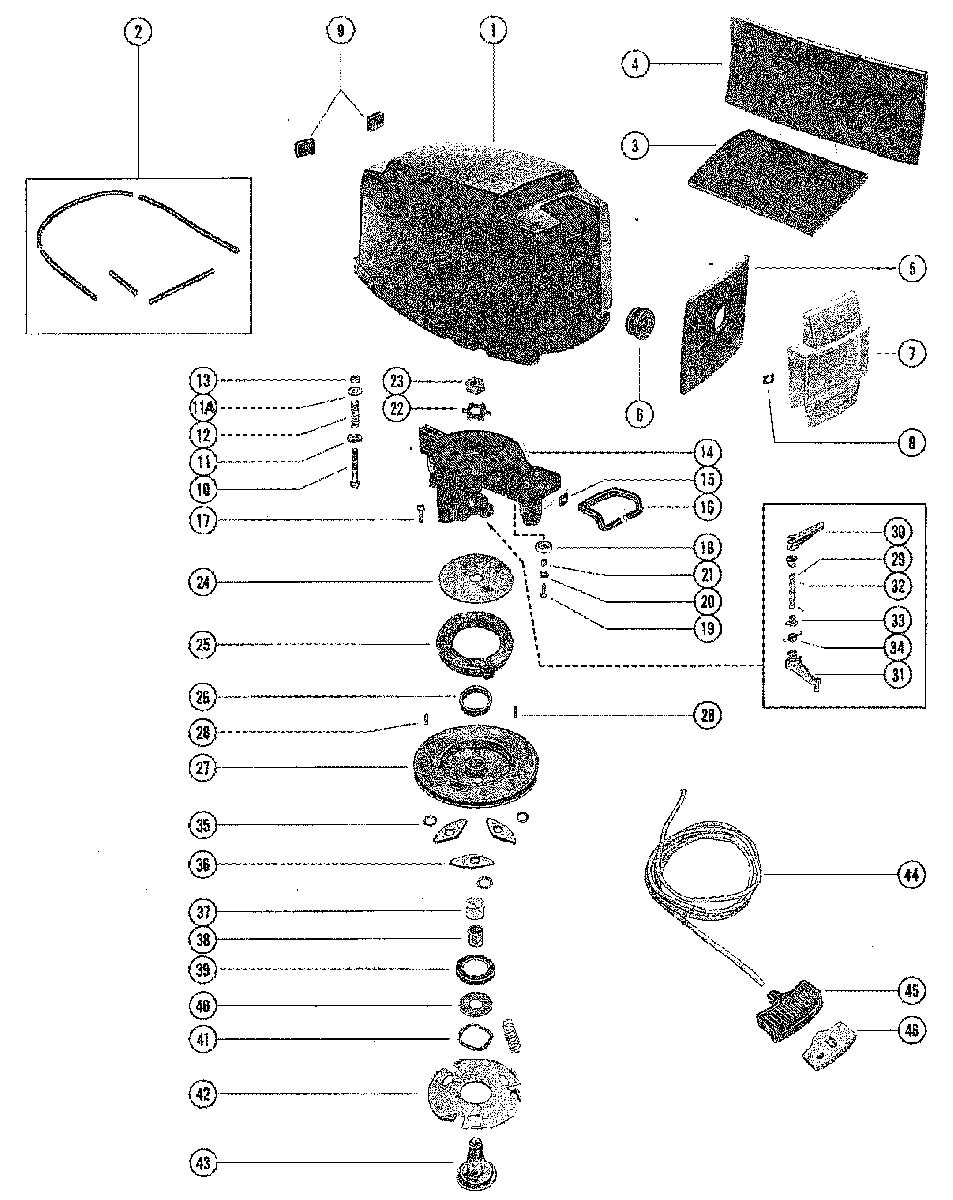

TOP COWL AND STARTER ASSEMBLY для Mercury - 75 8015315 THRU 8051349

  • №
    Артикул
    Название
  • 1
    2147-5652A5 TOP COWL ASSEMBLY
    UNITED STATES 3801458 THRU 4085864
    AUSTRALIA 8015315 THRU 8024689
    BELGIUM 9043194 THRU 9068873
    CANADA 7028598 THRU 7043132
    TOP COWL ASSEMBLY
    UNITED STATES 3801458 THRU 4085864
    AUSTRALIA 8015315 THRU 8024689
    BELGIUM 9043194 THRU 9068873
    CANADA 7028598 THRU 7043132
    0 ₽
  • 1
    2147-5652A5 TOP COWL ASSEMBLY
    UNITED STATES 4085865 THRU 4131609
    AUSTRALIA 8024690 THRU 8028839
    BELGIUM 9068874 THRU 9079488
    CANADA 7043133 THRU 7050207
    TOP COWL ASSEMBLY
    UNITED STATES 4085865 THRU 4131609
    AUSTRALIA 8024690 THRU 8028839
    BELGIUM 9068874 THRU 9079488
    CANADA 7043133 THRU 7050207
    0 ₽
  • 1
    2147-5565A4 TOP COWL ASSEMBLY
    UNITED STATES 4131610 THRU 4397536
    AUSTRALIA 8028840 THRU 8038449
    BELGIUM 9079489 THRU 9115164
    CANADA 7050208 THRU 7076122
    TOP COWL ASSEMBLY
    UNITED STATES 4131610 THRU 4397536
    AUSTRALIA 8028840 THRU 8038449
    BELGIUM 9079489 THRU 9115164
    CANADA 7050208 THRU 7076122
    0 ₽
  • 1
    2160-7264A10 TOP COWL ASSEMBLY
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    TOP COWL ASSEMBLY
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    0 ₽
  • 2
    654893 SEAL, TOP COWL (16 1/2")
    SEAL, TOP COWL (16 1/2")
    0 ₽
  • 3
    66942 BLANKET, TOP COWL - TOP
    BLANKET, TOP COWL - TOP
    0 ₽
  • 4
    85544 BLANKET, TOP COWL - SIDE
    BLANKET, TOP COWL - SIDE
    0 ₽
  • 5
    69522 BLANKET, TOP COWL - FRONT
    UNITED STATES 3801458 THRU 4131609
    AUSTRALIA 8015315 THRU 8028839
    BELGIUM 9043194 THRU 9079488
    CANADA 7028598 THRU 7050207
    BLANKET, TOP COWL - FRONT
    UNITED STATES 3801458 THRU 4131609
    AUSTRALIA 8015315 THRU 8028839
    BELGIUM 9043194 THRU 9079488
    CANADA 7028598 THRU 7050207
    0 ₽
  • 5
    69522 BLANKET, TOP COWL - FRONT
    UNITED STATES 4131610 AND UP
    AUSTRALIA 8028840 AND UP
    BELGIUM 9079489 AND UP
    CANADA 7050208 AND UP
    BLANKET, TOP COWL - FRONT
    UNITED STATES 4131610 AND UP
    AUSTRALIA 8028840 AND UP
    BELGIUM 9079489 AND UP
    CANADA 7050208 AND UP
    0 ₽
  • 6
    25-39086 GROMMET, COWL LATCH - TOP COWL
    GROMMET, COWL LATCH - TOP COWL
    230 ₽
  • 7
    71502 COVER, FRONT
    COVER, FRONT
    0 ₽
  • 8
    11-65517 NUT, SPEED - FRONT COVER TO COWL
    NUT, SPEED - FRONT COVER TO COWL
    0 ₽
  • 9
    69346 BUMPER, COWL - REAR
    BUMPER, COWL - REAR
    0 ₽
  • 10
    17-72856 CATCH, TOP COWL
    UNITED STATES 3801458 THRU 4314384
    AUSTRALIA 8015315 THRU 8035569
    BELGIUM 9043194 THRU 9102613
    CANADA 7028598 THRU 7065472
    CATCH, TOP COWL
    UNITED STATES 3801458 THRU 4314384
    AUSTRALIA 8015315 THRU 8035569
    BELGIUM 9043194 THRU 9102613
    CANADA 7028598 THRU 7065472
    0 ₽
  • 10
    17-72856 PIN, TOP COWL CATCH
    UNITED STATES 4314385 AND UP
    AUSTRALIA 8035570 AND UP
    BELGIUM 9102614 AND UP
    CANADA 7065473 AND UP
    PIN, TOP COWL CATCH
    UNITED STATES 4314385 AND UP
    AUSTRALIA 8035570 AND UP
    BELGIUM 9102614 AND UP
    CANADA 7065473 AND UP
    0 ₽
  • 11
    12-65567 WASHER, TOP COWL CATCH (LOWER)
    WASHER, TOP COWL CATCH (LOWER)
    200 ₽
  • 11A
    12-71055 WASHER, TOP COWL CATCH (UPPER)
    WASHER, TOP COWL CATCH (UPPER)
    130 ₽
  • 12
    24-65553 SPRING, COMPRESSION - COWL CATCH
    SPRING, COMPRESSION - COWL CATCH
    0 ₽
  • 13
    11-20184 NUT, COWL CATCH TO TOP COWL
    NUT, COWL CATCH TO TOP COWL
    120 ₽
  • 14
    65660A3 STARTER HOUSING ASSEMBLY
    UNITED STATES 3801458 THRU 4131609
    AUSTRALIA 8015315 THRU 8028839
    BELGIUM 9043194 THRU 9079488
    CANADA 7028598 THRU 7050207
    STARTER HOUSING ASSEMBLY
    UNITED STATES 3801458 THRU 4131609
    AUSTRALIA 8015315 THRU 8028839
    BELGIUM 9043194 THRU 9079488
    CANADA 7028598 THRU 7050207
    0 ₽
  • 14
    73342A4 STARTER HOUSING ASSEMBLY
    UNITED STATES 4131610 THRU 4314384
    AUSTRALIA 8028840 THRU 8035569
    BELGIUM 9079489 THRU 9102613
    CANADA 7050208 THRU 7065472
    STARTER HOUSING ASSEMBLY
    UNITED STATES 4131610 THRU 4314384
    AUSTRALIA 8028840 THRU 8035569
    BELGIUM 9079489 THRU 9102613
    CANADA 7050208 THRU 7065472
    0 ₽
  • 14
    73342A4 STARTER HOUSING ASSEMBLY
    UNITED STATES 4314385 THRU 4397536
    AUSTRALIA 8035570 THRU 8038449
    BELGIUM 9102614 THRU 9115164
    CANADA 7065473 THRU 7076122
    STARTER HOUSING ASSEMBLY
    UNITED STATES 4314385 THRU 4397536
    AUSTRALIA 8035570 THRU 8038449
    BELGIUM 9102614 THRU 9115164
    CANADA 7065473 THRU 7076122
    0 ₽
  • 14
    91871A1 STARTER HOUSING ASSEMBLY
    SEE NOTE 1 IN BLOCK COMMENTS U.S. 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    STARTER HOUSING ASSEMBLY
    SEE NOTE 1 IN BLOCK COMMENTS U.S. 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    0 ₽
  • 15
    57821 INSERT, ROPE GUIDE - STARTER HOUSING
    INSERT, ROPE GUIDE - STARTER HOUSING
    0 ₽
  • 16
    654991 SEAL, STARTER HOUSING TO TOP COWL
    SEAL, STARTER HOUSING TO TOP COWL
    0 ₽
  • 17
    10-72862 SCREW, STARTER HOUSING TO CRANKCASE (1")
    SCREW, STARTER HOUSING TO CRANKCASE (1")
    0 ₽
  • 18
    55860 PULLEY, STARTER CABLE
    PULLEY, STARTER CABLE
    1 670 ₽
  • 19
    10-28789 SCREW, CABLE PULLEY TO STARTER HOUSING (3/4")
    SCREW, CABLE PULLEY TO STARTER HOUSING (3/4")
    0 ₽
  • 20
    12-22887 WASHER, CABLE PULLEY SCREW
    WASHER, CABLE PULLEY SCREW
    140 ₽
  • 21
    23-309772 SPACER, CABLE PULLEY
    SPACER, CABLE PULLEY
    150 ₽
  • 22
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
    140 ₽
  • 23
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    230 ₽
  • 24
    20155 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
    0 ₽
  • 25
    24-29340T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
    2 880 ₽
  • 26
    23-28912 BUSHING, STARTER SPRING GUIDE
    BUSHING, STARTER SPRING GUIDE
    0 ₽
  • 27
    50-93696A2 STARTER SHEAVE ASSEMBLY
    UNITED STATES 3801458 THRU 4397536
    AUSTRALIA 8015315 THRU 8038449
    BELGIUM 9043194 THRU 9115164
    CANADA 7028598 THRU 7076122
    STARTER SHEAVE ASSEMBLY
    UNITED STATES 3801458 THRU 4397536
    AUSTRALIA 8015315 THRU 8038449
    BELGIUM 9043194 THRU 9115164
    CANADA 7028598 THRU 7076122
    0 ₽
  • 28
    17-22896 PIN, RETAINER - STARTER CABLE
    UNITED STATES 3801458 THRU 4397536
    AUSTRALIA 8015315 THRU 8038449
    BELGIUM 9043194 THRU 9115164
    CANADA 7028598 THRU 7076122
    PIN, RETAINER - STARTER CABLE
    UNITED STATES 3801458 THRU 4397536
    AUSTRALIA 8015315 THRU 8038449
    BELGIUM 9043194 THRU 9115164
    CANADA 7028598 THRU 7076122
    0 ₽
  • 27
    50-93696A2 STARTER SHEAVE ASSEMBLY
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    STARTER SHEAVE ASSEMBLY
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    0 ₽
  • 28
    17-22896 PIN, RETAINER - STARTER CABLE
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    PIN, RETAINER - STARTER CABLE
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    0 ₽
  • 29
    74359 SHAFT, INTERLOCK
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    SHAFT, INTERLOCK
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    0 ₽
  • 30
    74353 LEVER, LOCK
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    LEVER, LOCK
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    0 ₽
  • 31
    74351 LEVER, FOLLOWER
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    LEVER, FOLLOWER
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    0 ₽
  • 32
    17-38489 ROLL PIN, INTERLOCK SHAFT
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    ROLL PIN, INTERLOCK SHAFT
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    290 ₽
  • 33
    23-26856 BUSHING, NYLON - INTERLOCK SHAFT
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    BUSHING, NYLON - INTERLOCK SHAFT
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    130 ₽
  • 34
    24-74347 SPRING, TORSION - INTERLOCK SHAFT
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    SPRING, TORSION - INTERLOCK SHAFT
    UNITED STATES 4397537 AND UP
    AUSTRALIA 8038450 AND UP
    BELGIUM 9115165 AND UP
    CANADA 7076123 AND UP
    0 ₽
  • 35
    13-36206 WASHER, WAVE - STARTER PAWL
    WASHER, WAVE - STARTER PAWL
    150 ₽
  • 36
    30596 PAWL, STARTER
    PAWL, STARTER
    0 ₽
  • 37
    23-28919 BUSHING, NYLON - SHEAVE SHAFT SPACER
    BUSHING, NYLON - SHEAVE SHAFT SPACER
    0 ₽
  • 38
    23-61005 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
    0 ₽
  • 39
    26179 RETAINER, SHEAVE SHAFT TO STARTER SHEAVE
    RETAINER, SHEAVE SHAFT TO STARTER SHEAVE
    0 ₽
  • 40
    12-35559 WASHER, SHEAVE SHAFT RETAINER
    WASHER, SHEAVE SHAFT RETAINER
    270 ₽
  • 41
    13-20160 WASHER, WAVE - RETAINER TENSION
    WASHER, WAVE - RETAINER TENSION
    280 ₽
  • 42
    30595 PLATE, RETAINER - STARTER PAWL
    PLATE, RETAINER - STARTER PAWL
    2 980 ₽
  • 43
    35558 SHAFT, SHEAVE
    SHAFT, SHEAVE
    5 090 ₽
  • 44
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
    1 030 ₽
  • 45
    30782 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
    1 530 ₽
  • 46
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
    2 240 ₽
  • 47
    24-45823 SPRING
    SPRING
    0 ₽
