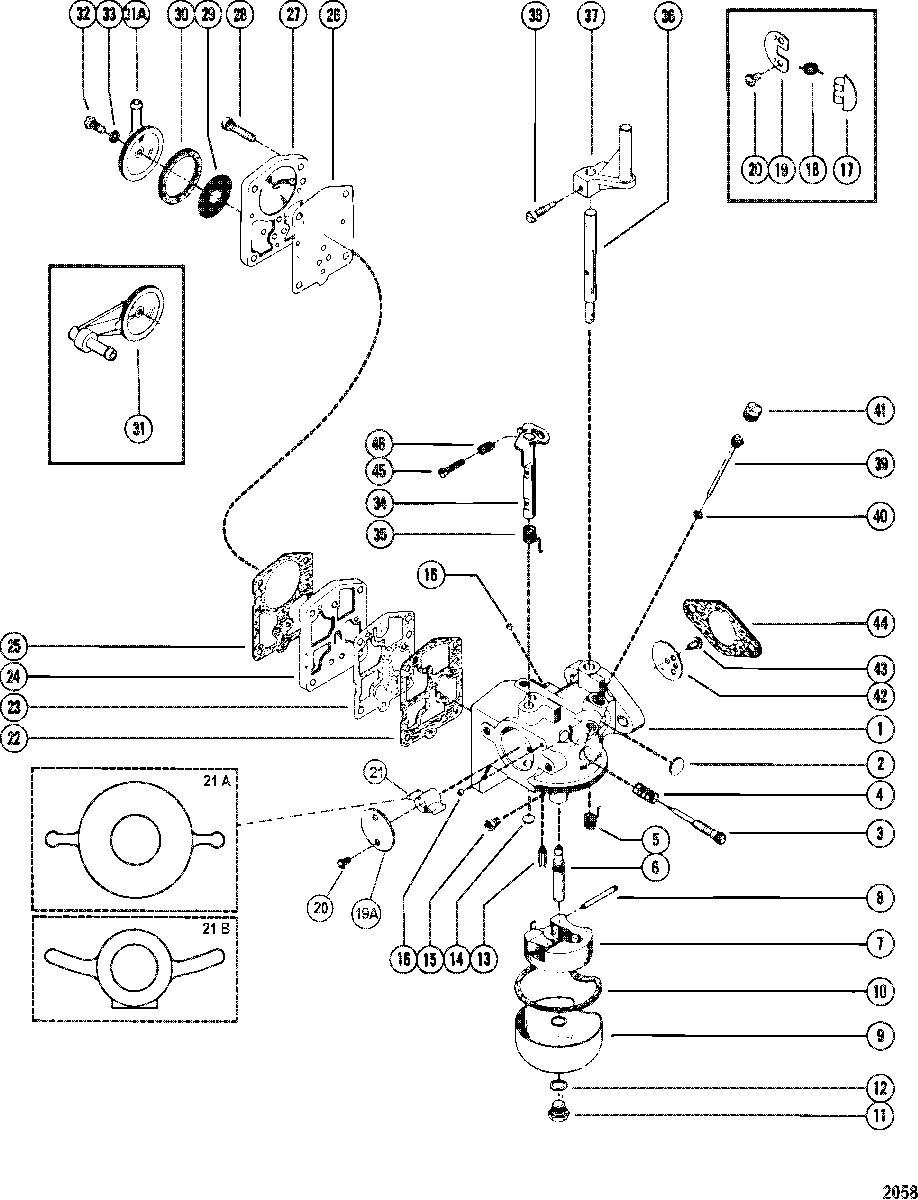

CARBURETOR ASSEMBLY, COMPLETE для Mercury - 75 8015315 THRU 8051349
-
№АртикулНазвание
-
11364-8783A14 CARBURETOR ASSEMBLY
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132CARBURETOR ASSEMBLY
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132 -
11364-8783A14 CARBURETOR ASSEMBLY
UNITED STATES 4085865 THRU 4131609
AUSTRALIA 8024690 THRU 8028839
BELGIUM 9068874 THRU 9079488
CANADA 7043133 THRU 7050207CARBURETOR ASSEMBLY
UNITED STATES 4085865 THRU 4131609
AUSTRALIA 8024690 THRU 8028839
BELGIUM 9068874 THRU 9079488
CANADA 7043133 THRU 7050207 -
11364-6061 CARBURETOR ASSEMBLY
UNITED STATES 4131610 THRU 4248574
AUSTRALIA 8028840 THRU 8031714
BELGIUM 9079489 THRU 9092863
CANADA 7050208 THRU 7056957CARBURETOR ASSEMBLY
UNITED STATES 4131610 THRU 4248574
AUSTRALIA 8028840 THRU 8031714
BELGIUM 9079489 THRU 9092863
CANADA 7050208 THRU 7056957 -
11364-6061 CARBURETOR ASSEMBLY
UNITED STATES 4248575 THRU 4314384
AUSTRALIA 8031715 THRU 8035569
BELGIUM 9092864 THRU 9102613
CANADA 7056958 THRU 7065472CARBURETOR ASSEMBLY
UNITED STATES 4248575 THRU 4314384
AUSTRALIA 8031715 THRU 8035569
BELGIUM 9092864 THRU 9102613
CANADA 7056958 THRU 7065472 -
11364-6061 CARBURETOR ASSEMBLY
UNITED STATES 4314385 THRU 4397536
AUSTRALIA 8035570 THRU 8038449
BELGIUM 9102614 THRU 9115164
CANADA 7065473 THRU 7076122CARBURETOR ASSEMBLY
UNITED STATES 4314385 THRU 4397536
AUSTRALIA 8035570 THRU 8038449
BELGIUM 9102614 THRU 9115164
CANADA 7065473 THRU 7076122 -
11364-8783A14 CARBURETOR ASSEMBLY
UNITED STATES 4397537 AND UP
AUSTRALIA 8038450 AND UP
BELGIUM 9115165 AND UP
CANADA 7076123 AND UPCARBURETOR ASSEMBLY
UNITED STATES 4397537 AND UP
AUSTRALIA 8038450 AND UP
BELGIUM 9115165 AND UP
CANADA 7076123 AND UP -
290-8M0143356 WELCH PLUG, BODY CHANNEL (LARGE)WELCH PLUG, BODY CHANNEL (LARGE)
-
390-8M0143356 SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
490-8M0143356 SPRING, IDLE MIXTURE SCREWSPRING, IDLE MIXTURE SCREW
-
590-8M0143356 SPRING, RETURN - THROTTLE SHAFTSPRING, RETURN - THROTTLE SHAFT
-
690-8M0143356 MAIN NOZZLEMAIN NOZZLE
-
71395-9293 FLOATFLOAT
-
890-8M0143356 PIN, FLOAT RETAININGPIN, FLOAT RETAINING
-
91399-5127 FUEL BOWLFUEL BOWL
-
1090-8M0143356 GASKET, FUEL BOWLGASKET, FUEL BOWL
-
111399-5128 SCREW, FUEL BOWL TO CARBURETORSCREW, FUEL BOWL TO CARBURETOR
-
1290-8M0143356 GASKET, FUEL BOWL SCREWGASKET, FUEL BOWL SCREW
-
131395-9022 INLET NEEDLE AND SPRING
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132INLET NEEDLE AND SPRING
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132 -
131399-6141 INLET NEEDLE AND SPRING
UNITED STATES 4085865 AND UP
AUSTRALIA 8024690 AND UP
BELGIUM 9068874 AND UP
CANADA 7043133 AND UPINLET NEEDLE AND SPRING
UNITED STATES 4085865 AND UP
AUSTRALIA 8024690 AND UP
BELGIUM 9068874 AND UP
CANADA 7043133 AND UP -
1490-8M0143356 WELCH PLUG, BODY CHANNEL (SMALL)WELCH PLUG, BODY CHANNEL (SMALL)
-
151399-3251 JET, MAIN FUEL (.034)
UNITED STATES 3801458 THRU 4131609
AUSTRALIA 8015315 THRU 8028839
BELGIUM 9043194 THRU 9079488
CANADA 7028598 THRU 7050207JET, MAIN FUEL (.034)
UNITED STATES 3801458 THRU 4131609
AUSTRALIA 8015315 THRU 8028839
BELGIUM 9043194 THRU 9079488
CANADA 7028598 THRU 7050207 -
151399-3252 JET, MAIN FUEL (.032)
UNITED STATES 4131610 THRU 4397536
AUSTRALIA 8028840 THRU 8038449
BELGIUM 9079489 THRU 9115164
CANADA 7050208 THRU 7076122JET, MAIN FUEL (.032)
UNITED STATES 4131610 THRU 4397536
AUSTRALIA 8028840 THRU 8038449
BELGIUM 9079489 THRU 9115164
CANADA 7050208 THRU 7076122 -
151399-1765 JET, MAIN FUEL (.045)
UNITED STATES 4397537 AND UP
AUSTRALIA 8038450 AND UP
BELGIUM 9115165 AND UP
CANADA 7076123 AND UPJET, MAIN FUEL (.045)
UNITED STATES 4397537 AND UP
AUSTRALIA 8038450 AND UP
BELGIUM 9115165 AND UP
CANADA 7076123 AND UP -
1690-8M0143356 PLUG, BODY CHANNELPLUG, BODY CHANNEL
-
171399-5122 VALVE, CHOKE RELIEF
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132VALVE, CHOKE RELIEF
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132 -
181399-5195 SPRING, CHOKE RELIEF VALVE
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132SPRING, CHOKE RELIEF VALVE
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132 -
191399-5125 CHOKE SHUTTER
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132CHOKE SHUTTER
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132 -
19A1399-5756 CHOKE SHUTTER
UNITED STATES 4085865 AND UP
AUSTRALIA 8024690 AND UP
BELGIUM 9068874 AND UP
CANADA 7043133 AND UPCHOKE SHUTTER
UNITED STATES 4085865 AND UP
AUSTRALIA 8024690 AND UP
BELGIUM 9068874 AND UP
CANADA 7043133 AND UP -
2010-23035 SCREW, CHOKE SHUTTER TO CHOKE SHAFTSCREW, CHOKE SHUTTER TO CHOKE SHAFT
-
21A64247 VENTURIVENTURI
-
21B69764 VENTURIVENTURI
-
2290-8M0143356 GASKET, FUEL PUMP DIAPHRAGMGASKET, FUEL PUMP DIAPHRAGM
-
2390-8M0143356 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
241399-5129 BODY, FUEL PUMPBODY, FUEL PUMP
-
2590-8M0143356 GASKET, FUEL PUMP DIAPHRAGMGASKET, FUEL PUMP DIAPHRAGM
-
2690-8M0143356 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
271399-5131 BODY, STRAINERBODY, STRAINER
-
281395-808612 SCREW, STRAINER BODY TO CARBURETORSCREW, STRAINER BODY TO CARBURETOR
-
291399-5758 SCREEN, STRAINER
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132SCREEN, STRAINER
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132 -
291399-5758 SCREEN, STRAINER
UNITED STATES 4085865 AND UP
AUSTRALIA 8024690 AND UP
BELGIUM 9068874 AND UP
CANADA 7043133 AND UPSCREEN, STRAINER
UNITED STATES 4085865 AND UP
AUSTRALIA 8024690 AND UP
BELGIUM 9068874 AND UP
CANADA 7043133 AND UP -
3090-8M0143356 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
3164194A1 COVER ASSEMBLY, STRAINER (INLET)
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132COVER ASSEMBLY, STRAINER (INLET)
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132 -
31A99941 COVER ASSEMBLY, STRAINER (INLET)
UNITED STATES 4085865 AND UP
AUSTRALIA 8024690 AND UP
BELGIUM 9068874 AND UP
CANADA 7043133 AND UPCOVER ASSEMBLY, STRAINER (INLET)
UNITED STATES 4085865 AND UP
AUSTRALIA 8024690 AND UP
BELGIUM 9068874 AND UP
CANADA 7043133 AND UP -
3290-8M0143356 SCREW, STRAINER COVER TO BODYSCREW, STRAINER COVER TO BODY
-
3390-8M0143356 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
341399-5124 CHOKE SHAFT
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132CHOKE SHAFT
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132 -
341399-5755 CHOKE SHAFT
UNITED STATES 4085865 THRU 4131609
AUSTRALIA 8024690 THRU 8028839
BELGIUM 9068874 THRU 9079488
CANADA 7043133 THRU 7050207CHOKE SHAFT
UNITED STATES 4085865 THRU 4131609
AUSTRALIA 8024690 THRU 8028839
BELGIUM 9068874 THRU 9079488
CANADA 7043133 THRU 7050207 -
341399-5827 CHOKE SHAFT
UNITED STATES 4131610 AND UP
AUSTRALIA 8028840 AND UP
BELGIUM 9079489 AND UP
CANADA 7050208 AND UPCHOKE SHAFT
UNITED STATES 4131610 AND UP
AUSTRALIA 8028840 AND UP
BELGIUM 9079489 AND UP
CANADA 7050208 AND UP -
3590-8M0143356 SPRING, RETURN - CHOKE SHAFTSPRING, RETURN - CHOKE SHAFT
-
361399-5133 THROTTLE SHAFTTHROTTLE SHAFT
-
3763646 LEVER, THROTTLELEVER, THROTTLE
-
381395-6027 SCREW, THROTTLE LEVER ATTACHINGSCREW, THROTTLE LEVER ATTACHING
-
3990-8M0143356 IDLE TUBEIDLE TUBE
-
4090-8M0143356 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
4110-23178 SCREW, PLUG - IDLE TUBESCREW, PLUG - IDLE TUBE
-
421399-5749 THROTTLE SHUTTER
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132THROTTLE SHUTTER
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132 -
421399-5759 THROTTLE SHUTTER
UNITED STATES 4085865 AND UP
AUSTRALIA 8024690 AND UP
BELGIUM 9068874 AND UP
CANADA 7043133 AND UPTHROTTLE SHUTTER
UNITED STATES 4085865 AND UP
AUSTRALIA 8024690 AND UP
BELGIUM 9068874 AND UP
CANADA 7043133 AND UP -
4390-8M0143356 SCREW, THROTTLE SHUTTER TO THROTTLE SHAFTSCREW, THROTTLE SHUTTER TO THROTTLE SHAFT
-
4427-63309 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
4590-8M0143356 SCREW, CHOKE STOP ADJUSTMENT
UNITED STATES 4131610 AND UP
AUSTRALIA 8028840 AND UP
BELGIUM 9079489 AND UP
CANADA 7050208 AND UPSCREW, CHOKE STOP ADJUSTMENT
UNITED STATES 4131610 AND UP
AUSTRALIA 8028840 AND UP
BELGIUM 9079489 AND UP
CANADA 7050208 AND UP -
4690-8M0143356 SPRING, CHOKE STOP ADJUSTMENT
UNITED STATES 4131610 AND UP
AUSTRALIA 8028840 AND UP
BELGIUM 9079489 AND UP
CANADA 7050208 AND UPSPRING, CHOKE STOP ADJUSTMENT
UNITED STATES 4131610 AND UP
AUSTRALIA 8028840 AND UP
BELGIUM 9079489 AND UP
CANADA 7050208 AND UP -
--1399-5135 GASKET SETGASKET SET
-
--1399-879194026 REPAIR PARTS KIT
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132REPAIR PARTS KIT
UNITED STATES 3801458 THRU 4085864
AUSTRALIA 8015315 THRU 8024689
BELGIUM 9043194 THRU 9068873
CANADA 7028598 THRU 7043132 -
--1399-5804 REPAIR PARTS KIT
UNITED STATES 4085865 THRU 4131609
AUSTRALIA 8024690 THRU 8028839
BELGIUM 9068874 THRU 9079488
CANADA 7043133 THRU 7050207REPAIR PARTS KIT
UNITED STATES 4085865 THRU 4131609
AUSTRALIA 8024690 THRU 8028839
BELGIUM 9068874 THRU 9079488
CANADA 7043133 THRU 7050207 -
--1399-879194026 REPAIR PARTS KIT
UNITED STATES 4131610 THRU 4314384
AUSTRALIA 8028840 THRU 8035569
BELGIUM 9079489 THRU 9102613
CANADA 7050208 THRU 7065472REPAIR PARTS KIT
UNITED STATES 4131610 THRU 4314384
AUSTRALIA 8028840 THRU 8035569
BELGIUM 9079489 THRU 9102613
CANADA 7050208 THRU 7065472 -
--1399-879194026 REPAIR PARTS KIT
UNITED STATES 4314385 THRU 4397536
AUSTRALIA 8035570 THRU 8038449
BELGIUM 9102614 THRU 9115164
CANADA 7065473 THRU 7076122REPAIR PARTS KIT
UNITED STATES 4314385 THRU 4397536
AUSTRALIA 8035570 THRU 8038449
BELGIUM 9102614 THRU 9115164
CANADA 7065473 THRU 7076122 -
--1399-879194026 REPAIR PARTS KIT
UNITED STATES 4397537 AND UP
AUSTRALIA 8038450 AND UP
BELGIUM 9115165 AND UP
CANADA 7076123 AND UPREPAIR PARTS KIT
UNITED STATES 4397537 AND UP
AUSTRALIA 8038450 AND UP
BELGIUM 9115165 AND UP
CANADA 7076123 AND UP -
--1399-5137 DIAPHRAGM AND GASKET KITDIAPHRAGM AND GASKET KIT
Все узлы модели:
- BOTTOM COWL AND STOP SWITCH ASSEMBLY
- CARBURETOR AND CHOKE ASSEMBLY
- • CARBURETOR ASSEMBLY, COMPLETE
- CLAMP BRACKET ASSEMBLY
- CRANKSHAFT AND MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- ELECTRIC COMPONENTS
- FLYWHEEL AND IGNITION COIL
- GEAR HOUSING ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE
- IGNITION COMPONENTS
- MISCELLANEOUS PARTS/ACCESSORIES
- PISTON AND CONNECTING ROD ASSEMBLY
- SHIFT CONTROL LINKAGE
- STEERING HANDLE ASSEMBLY
- SWIVEL BRACKET ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
