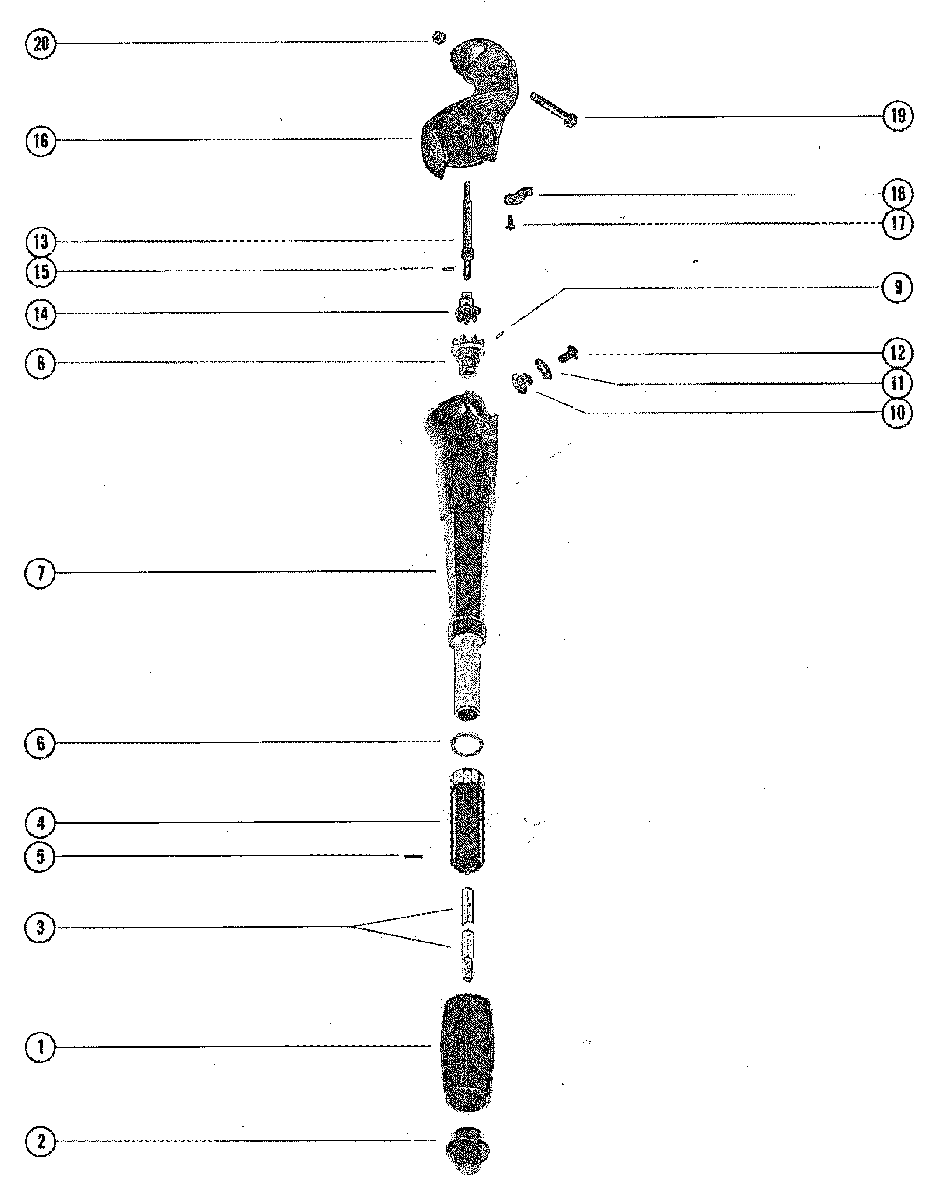

STEERING HANDLE ASSEMBLY для Mercury - 75 7028598 THRU 7111897

  • №
    Артикул
    Название
  • -
    60850A6 STEERING HANDLE ASSEMBLY, COMPLETE
    STEERING HANDLE ASSEMBLY, COMPLETE
  • 1
    60854 GRIP, HANDLE - THROTTLE
    GRIP, HANDLE - THROTTLE
  • 2
    91-62254 CAP, HANDLE - THROTTLE
    CAP, HANDLE - THROTTLE
  • 3
    66393 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 4
    66394A1 HANDLE, THROTTLE SHAFT
    HANDLE, THROTTLE SHAFT
  • 5
    17-46152 PIN, STEERING HANDLE
    PIN, STEERING HANDLE
  • 6
    12-62252 WASHER, THROTTLE HANDLE TO STEERING ARM
    WASHER, THROTTLE HANDLE TO STEERING ARM
  • 7
    60850 ARM, STEERING HANDLE
    ARM, STEERING HANDLE
  • 8
    43-60852 GEAR, BALL - THROTTLE SHAFT
    GEAR, BALL - THROTTLE SHAFT
  • 9
    17-27088 PIN, BALL GEAR TO THROTTLE SHAFT
    PIN, BALL GEAR TO THROTTLE SHAFT
  • 10
    48003 PIVOT, STEERING HANDLE TO BRACKET
    PIVOT, STEERING HANDLE TO BRACKET
  • 11
    15-48002015 SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)
    SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)
  • 12
    10-64074 SCREW, STEERING HANDLE TO ARM BRACKET (5/8")
    SCREW, STEERING HANDLE TO ARM BRACKET (5/8")
  • 13
    60857A2 UNIVERSAL JOINT ASSEMBLY
    UNIVERSAL JOINT ASSEMBLY
  • 14
    43-60852 GEAR, BALL - UNIVERSAL JOINT
    GEAR, BALL - UNIVERSAL JOINT
  • 15
    17-68436 PIN, BALL GEAR TO UNIVERSAL JOINT
    PIN, BALL GEAR TO UNIVERSAL JOINT
  • 16
    96130A1 BRACKET ASSEMBLY, STEERING ARM
    BRACKET ASSEMBLY, STEERING ARM
  • 17
    10-62233 SCREW, DETENT SPRING TO STEERING ARM BRACKET (5/8")
    SCREW, DETENT SPRING TO STEERING ARM BRACKET (5/8")
  • 18
    24-72847 SPRING, DETENT - STEERING HANDLE
    UNITED STATES 3801458 THRU 4314384
    AUSTRALIA 8015315 THRU 8035569
    BELGIUM 9043194 THRU 9102613
    CANADA 7028598 THRU 7065472
    SPRING, DETENT - STEERING HANDLE
    UNITED STATES 3801458 THRU 4314384
    AUSTRALIA 8015315 THRU 8035569
    BELGIUM 9043194 THRU 9102613
    CANADA 7028598 THRU 7065472
  • 18
    24-72847 SPRING, DETENT - STEERING HANDLE
    UNITED STATES 4314385 AND UP
    AUSTRALIA 8035570 AND UP
    BELGIUM 9102614 AND UP
    CANADA 7065473 AND UP
    SPRING, DETENT - STEERING HANDLE
    UNITED STATES 4314385 AND UP
    AUSTRALIA 8035570 AND UP
    BELGIUM 9102614 AND UP
    CANADA 7065473 AND UP
  • 19
    10-30679 SCREW, STEERING ARM BRACKET TO SADDLE (2 1/4")
    SCREW, STEERING ARM BRACKET TO SADDLE (2 1/4")
  • 20
    11-24652 NUT, STEERING ARM BRACKET FASTENING SCREW
    NUT, STEERING ARM BRACKET FASTENING SCREW
