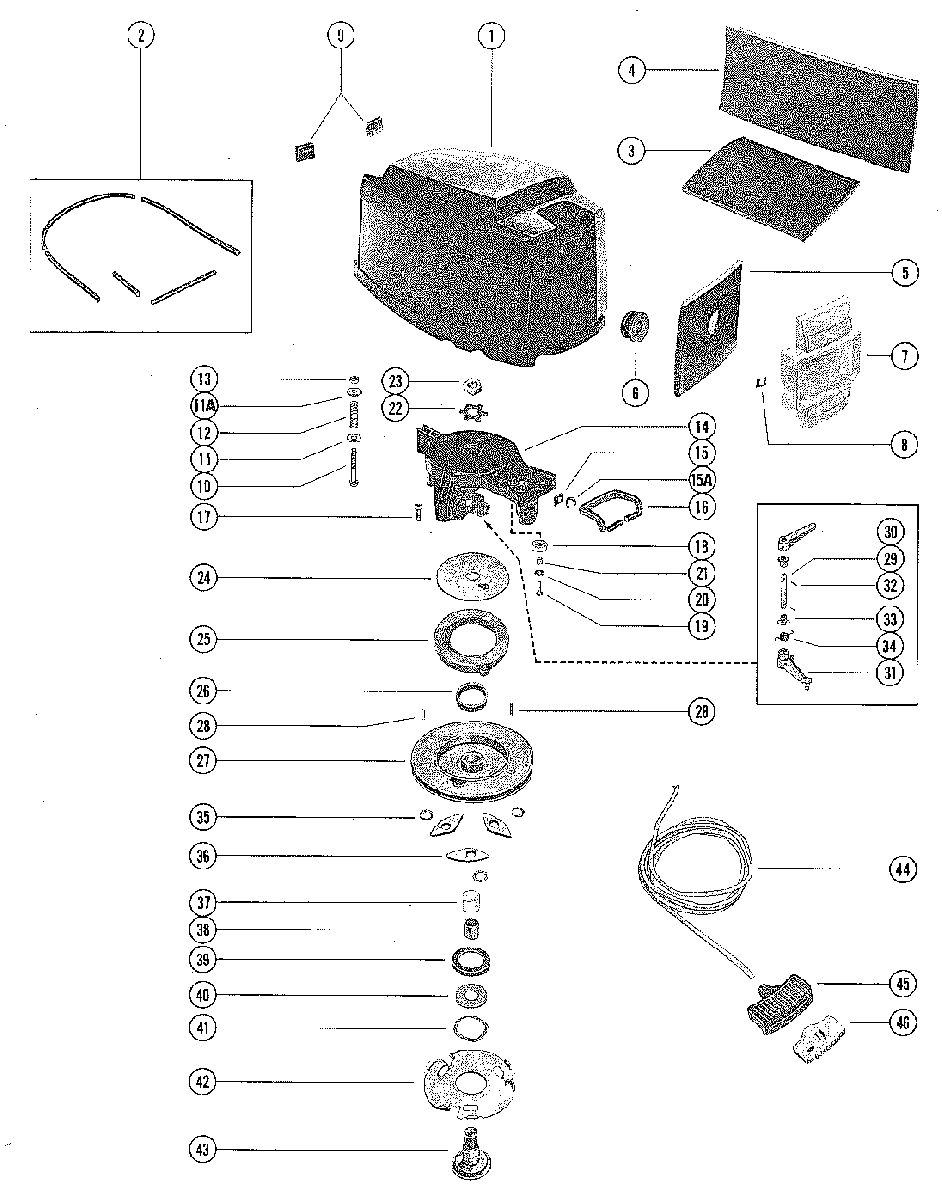

TOP COWL AND STARTER ASSEMBLY для Mercury - 75 4851693 THRU 5226934
-
№АртикулНазвание
-
12160-7264A10 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
2654893 SEAL, TOP COWL (16 1/2")SEAL, TOP COWL (16 1/2")
-
366942 BLANKET, TOP COWL - TOPBLANKET, TOP COWL - TOP
-
485544 BLANKET, TOP COWL - SIDEBLANKET, TOP COWL - SIDE
-
569522 BLANKET, TOP COWL - FRONTBLANKET, TOP COWL - FRONT
-
625-39086 GROMMET, COWL LATCH - TOP COWLGROMMET, COWL LATCH - TOP COWL
-
771502 COVER, FRONTCOVER, FRONT
-
811-65517 NUT, SPEED - FRONT COVER TO COWLNUT, SPEED - FRONT COVER TO COWL
-
969346 BUMPER, COWL - REARBUMPER, COWL - REAR
-
1017-72856 PIN, TOP COWL CATCHPIN, TOP COWL CATCH
-
1112-65567 WASHER, TOP COWL CATCH (LOWER)WASHER, TOP COWL CATCH (LOWER)
-
11A12-35280 WASHER, TOP COWL CATCH (UPPER)WASHER, TOP COWL CATCH (UPPER)
-
1224-79351 SPRING, COMPRESSION - COWL CATCHSPRING, COMPRESSION - COWL CATCH
-
1311-20184 NUT, COWL CATCH TO TOP COWLNUT, COWL CATCH TO TOP COWL
-
1491871A1 STARTER HOUSING ASSEMBLYSTARTER HOUSING ASSEMBLY
-
1577859 INSERT, ROPE GUIDE - STARTER HOUSINGINSERT, ROPE GUIDE - STARTER HOUSING
-
15A77860 RING, RETAINING - ROPE GUIDE INSERTRING, RETAINING - ROPE GUIDE INSERT
-
16654991 SEAL, STARTER HOUSING TO TOP COWLSEAL, STARTER HOUSING TO TOP COWL
-
171395-7262 SCREW, STARTER HOUSING TO CRANKCASE (1")SCREW, STARTER HOUSING TO CRANKCASE (1")
-
1855860 PULLEY, STARTER CABLEPULLEY, STARTER CABLE
-
1910-28789 SCREW, CABLE PULLEY TO STARTER HOUSING
(3/4")SCREW, CABLE PULLEY TO STARTER HOUSING
(3/4") -
2012-22887 WASHER, CABLE PULLEY SCREWWASHER, CABLE PULLEY SCREW
-
2123-309772 SPACER, CABLE PULLEYSPACER, CABLE PULLEY
-
2214-20165 TAB WASHER, SHEAVE SHAFF NUTTAB WASHER, SHEAVE SHAFF NUT
-
2311-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
2420155 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
2524-29340T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
2623-28912 BUSHING, STARTER SPRING GUIDEBUSHING, STARTER SPRING GUIDE
-
2750-93696A2 STARTER SHEAVE ASSEMBLYSTARTER SHEAVE ASSEMBLY
-
2817-22896 PIN, RETAINER - STARTER CABLEPIN, RETAINER - STARTER CABLE
-
2974359 SHAFT, INTERLOCKSHAFT, INTERLOCK
-
3074353 LEVER, LOCKLEVER, LOCK
-
3174351 LEVER, FOLLOWERLEVER, FOLLOWER
-
3217-38489 ROLL PIN, INTERLOCK SHAFTROLL PIN, INTERLOCK SHAFT
-
3323-26856 BUSHING, NYLON - INTERLOCK SHAFTBUSHING, NYLON - INTERLOCK SHAFT
-
3424-74347 SPRING, TORSION - INTERLOCK SHAFTSPRING, TORSION - INTERLOCK SHAFT
-
3513-36206 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
3630596 PAWL, STARTERPAWL, STARTER
-
3723-28919 BUSHING, NYLON - SHEAVE SHAFT SPACERBUSHING, NYLON - SHEAVE SHAFT SPACER
-
3823-61005 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
3926179 RETAINER, SHEAVE SHAFT TO STARTER SHEAVERETAINER, SHEAVE SHAFT TO STARTER SHEAVE
-
4012-35559 WASHER, SHEAVE SHAFT RETAINERWASHER, SHEAVE SHAFT RETAINER
-
4113-20160 WASHER, WAVE - RETAINER TENSIONWASHER, WAVE - RETAINER TENSION
-
4230595 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
4335558 SHAFT, SHEAVESHAFT, SHEAVE
-
4450-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
4579470A1 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
4679470A1 RETAINER ASSEMBLY
STARTER CABLE AND HANDLERETAINER ASSEMBLY
STARTER CABLE AND HANDLE
